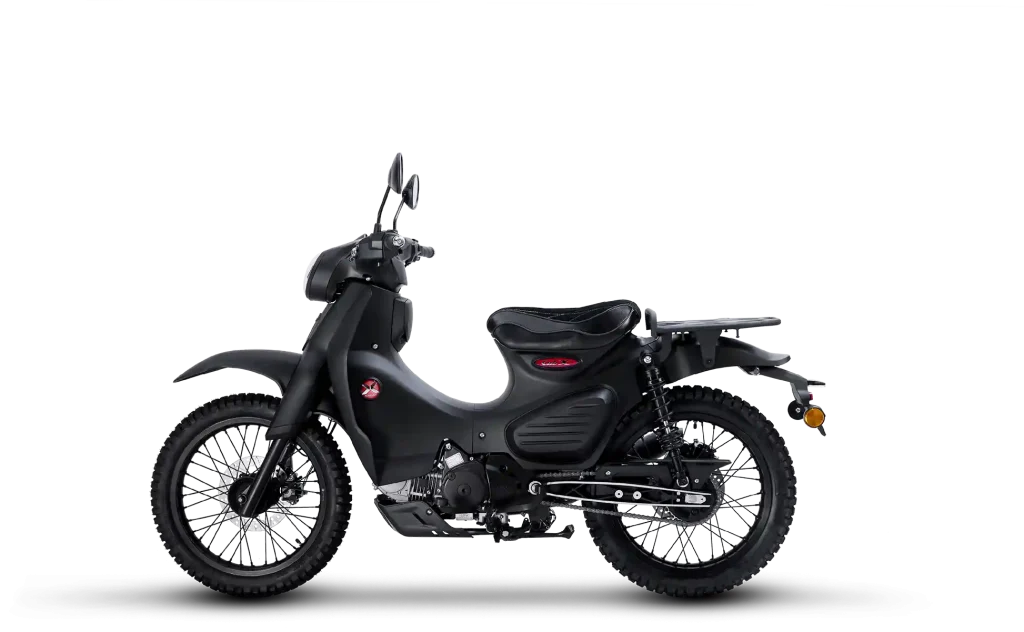

CUB X
Your shortcut to freedom
With its spirited 150cc engine, convenient rear storage rack, and modern features, it’s no wonder the Cub X has become a global favorite.
Engine: 147.5cc, 4-Stroke, Air-Cooled
4-speed Rotary Transmission With High Gear Protection
Front & Rear Standard ABS/TCS
Reinforced steel backbone chassis
Matte Black Tactical Greenx Nomad Yellow

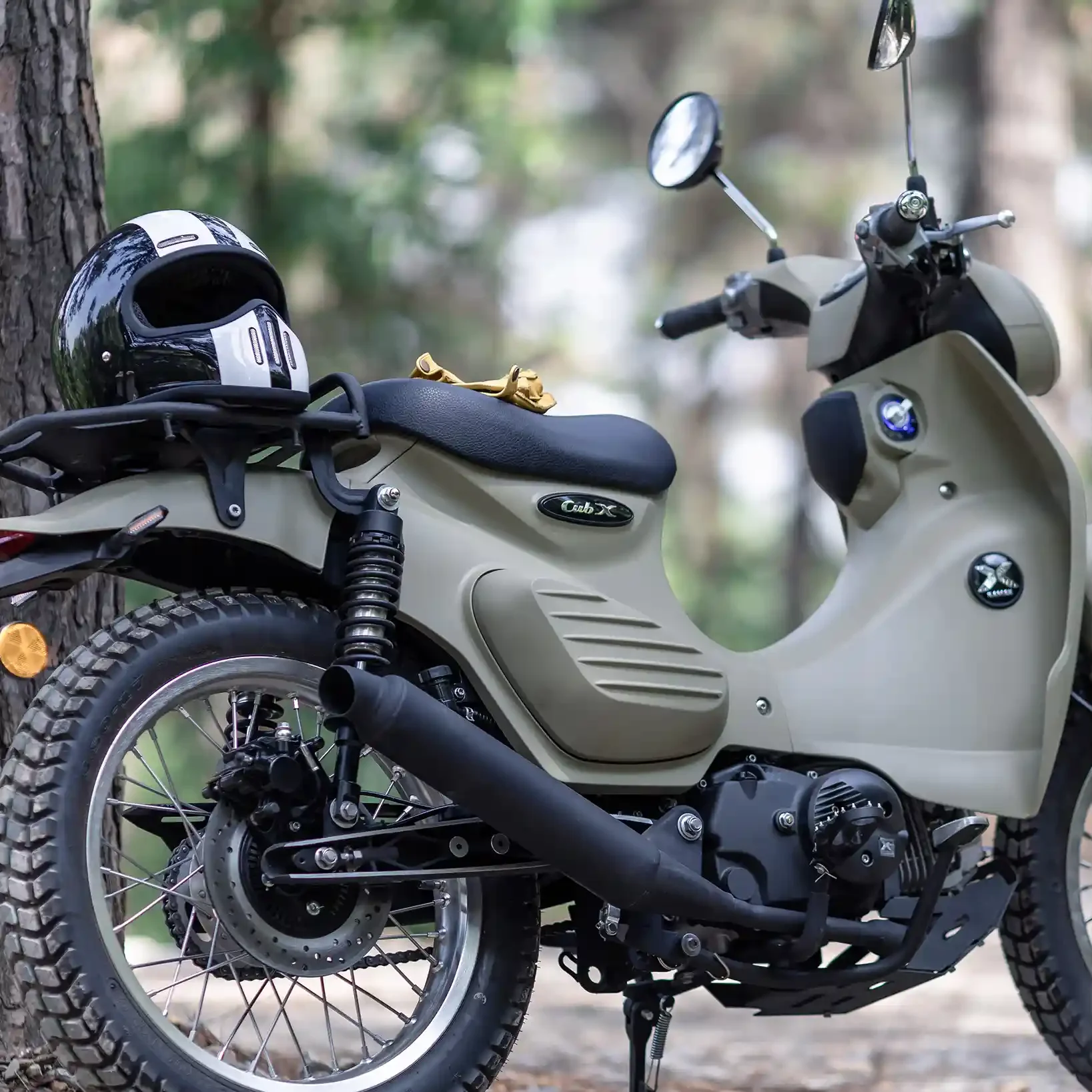

Classic styling meets modern adventure
Kickstart your explorer life
CUB X 150
Your everyday outdoor companion
The TOP Cub Motorcycle Manafacturer in China

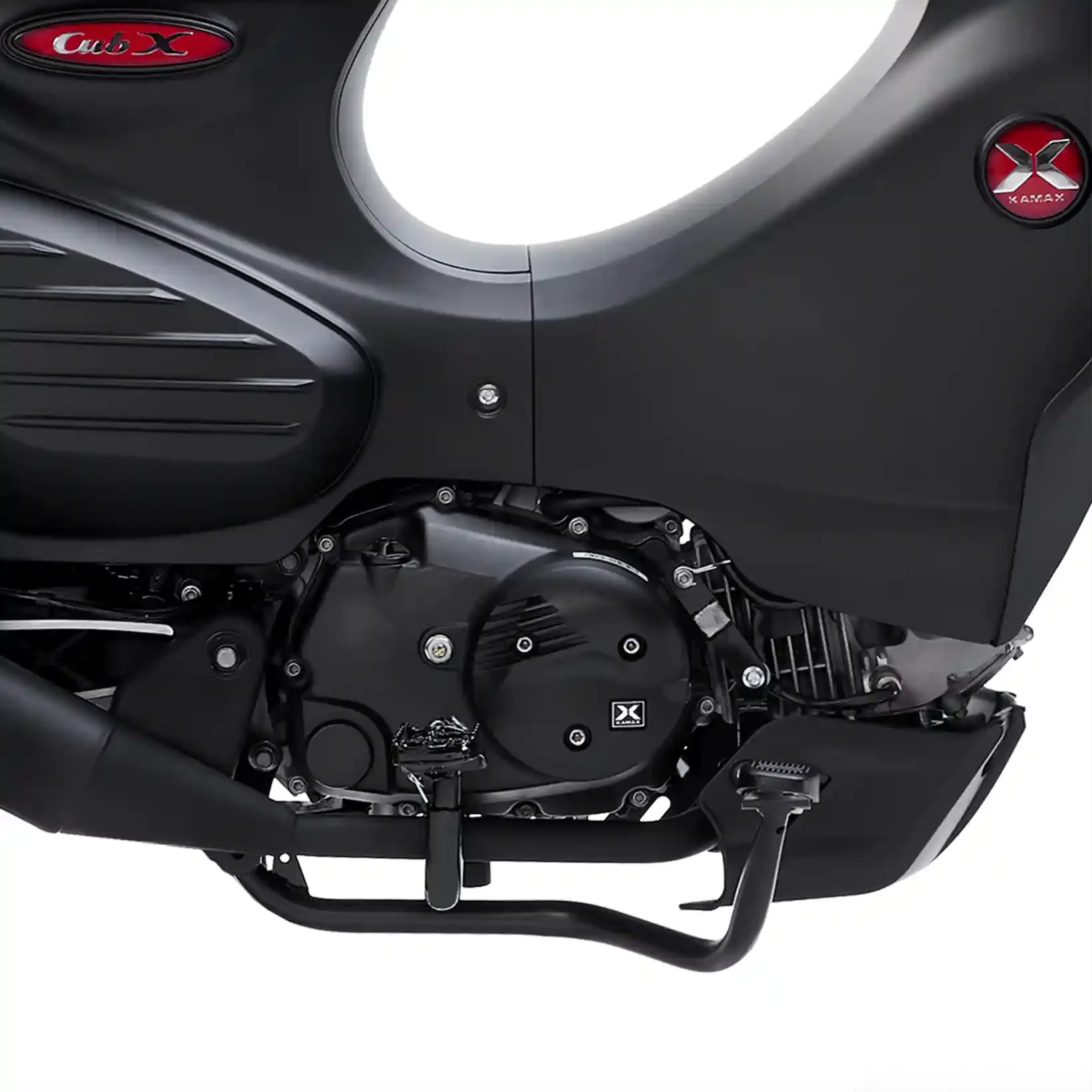

150CC
fuel-injected engine
Endlessly reliable and fun, it’s a giant in its class, delivering impressive horsepower, a broad powerband, and excellent fuel efficiency. Plus, air cooling keeps things simple and adds to its exceptional design.

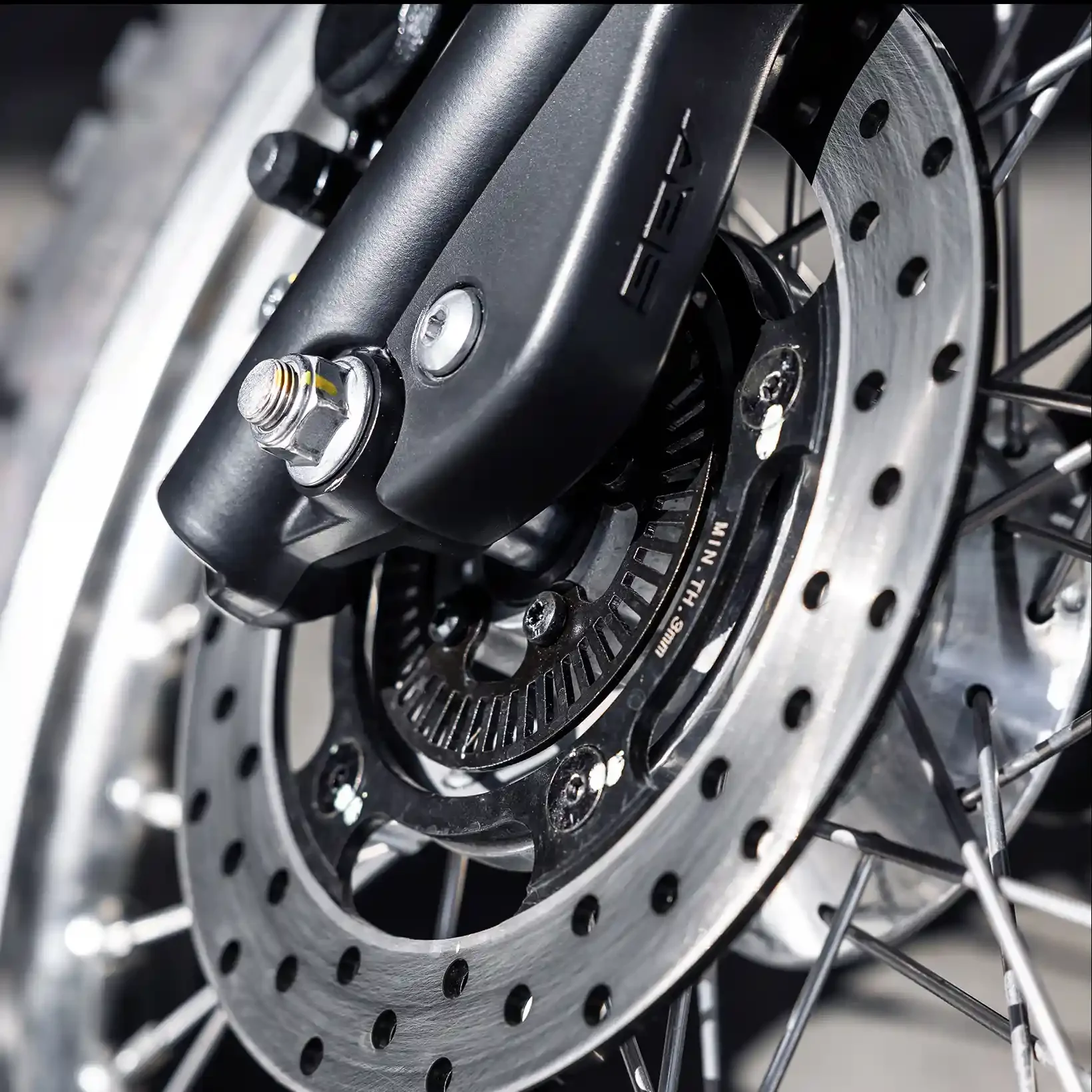

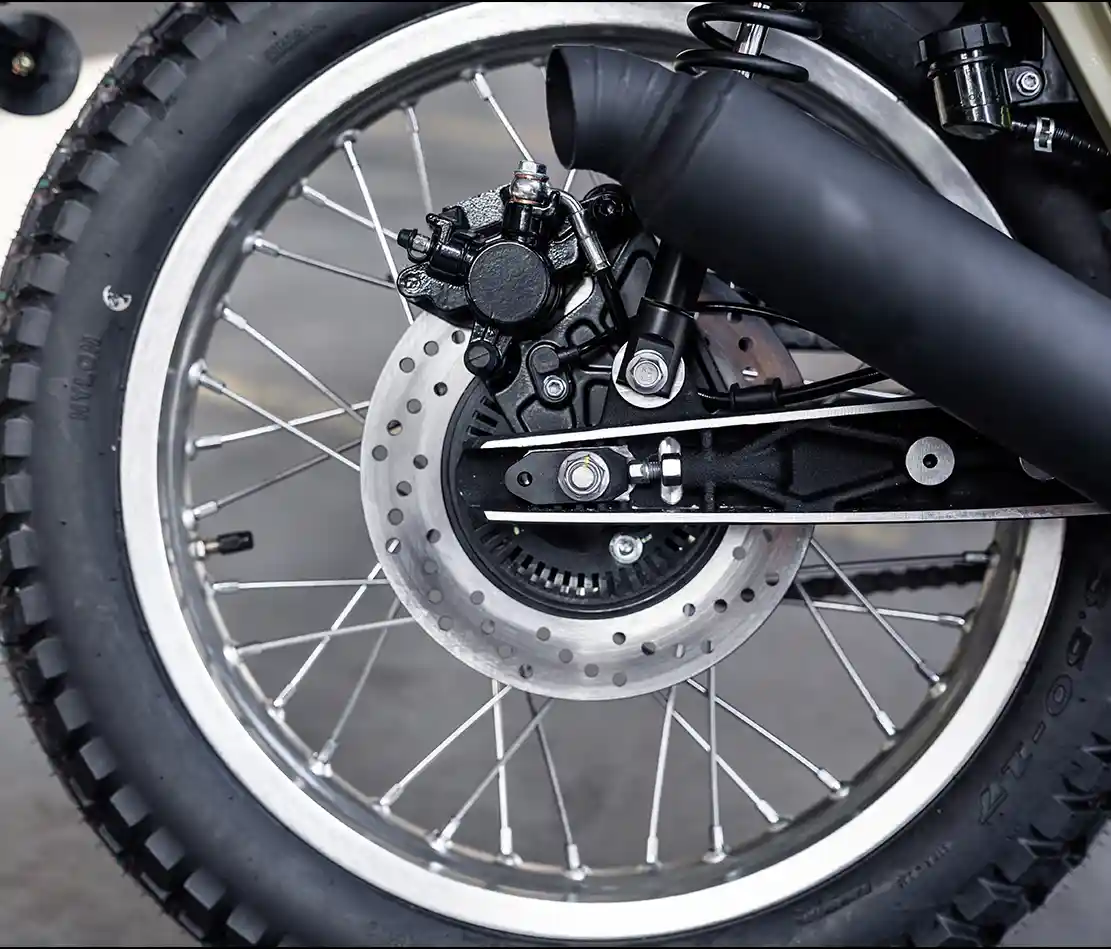

disc brakes
Front and rear hydraulic disc brakes
Hydraulic disc brakes — 220mm front and rear — deliver strong and consistent stopping power. The added safety of standard ABS and TCS gives riders greater confidence in all conditions.
Standard ABS/TCS
Front and rear ABS/TCS
Front and rear wheels come standard with Anti-Lock Braking System (ABS) and Traction Control System (TCS), providing better control and stability when braking on wet or uneven surfaces.
steel backbone
Reinforced steel backbone chassis
The frame features six-stage anti-corrosion treatment and dual-layer coating for enhanced durability. Ultrasonic weld inspection ensures strong joints, while precision tube alignment improves assembly accuracy and overall reliability.
Kickstart your explorer life

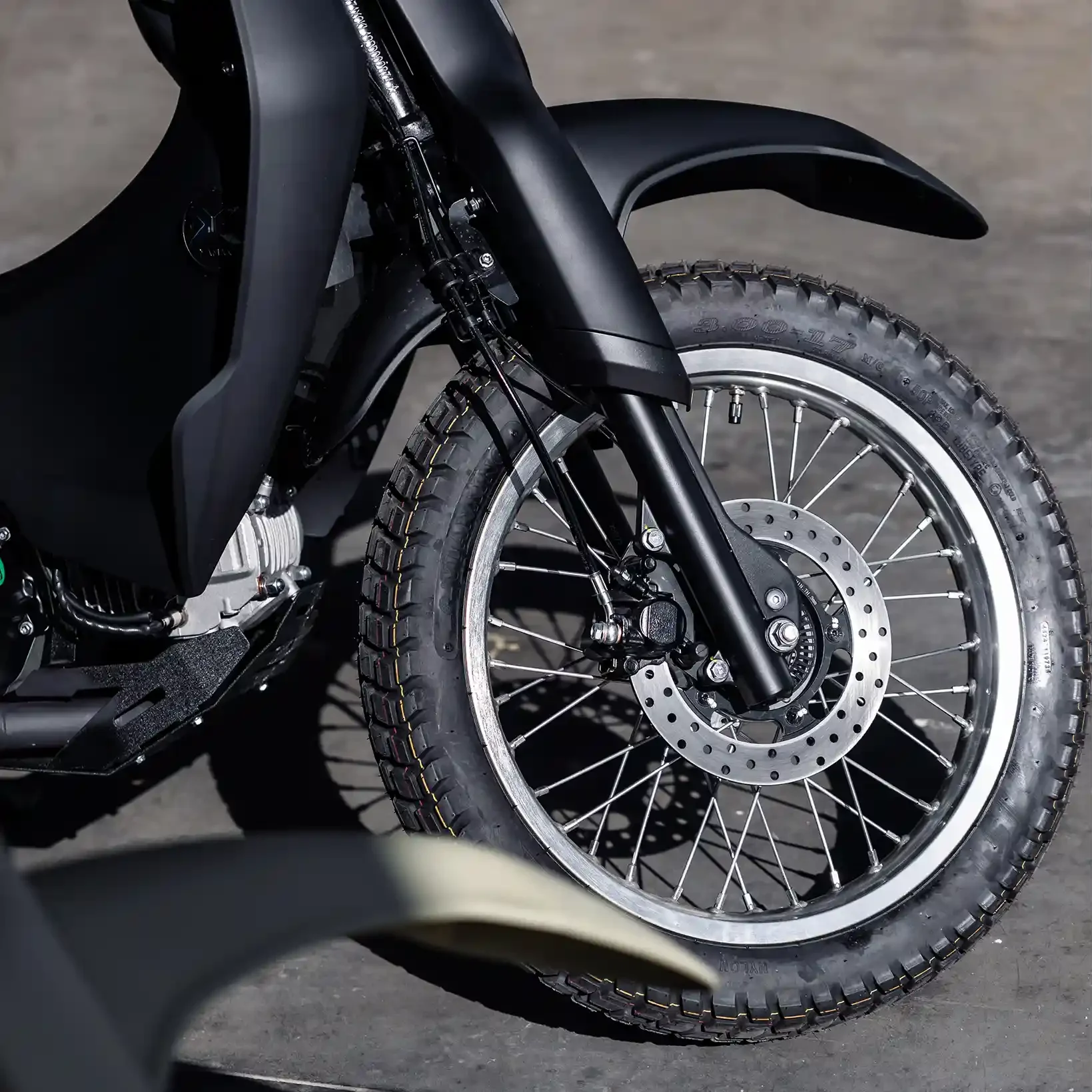

17-inch spoke wheels
Robust spoked wheels mean smooth riding, whether you’re tackling dirt roads or city streets.

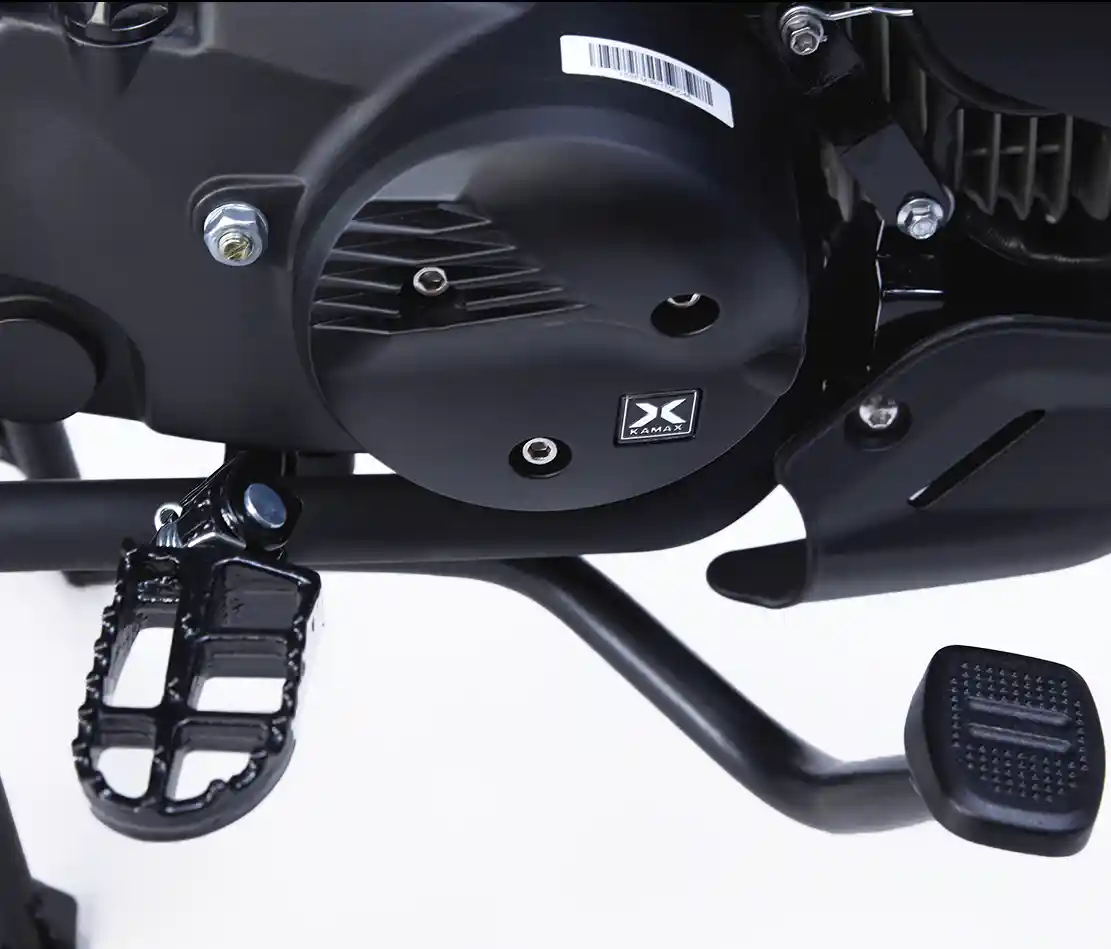

Four-speed semi-automatic transmission
4-Speed Rotary Gearbox (N-1-2-3-4-N) with High Gear Protection for safer, smoother operation.

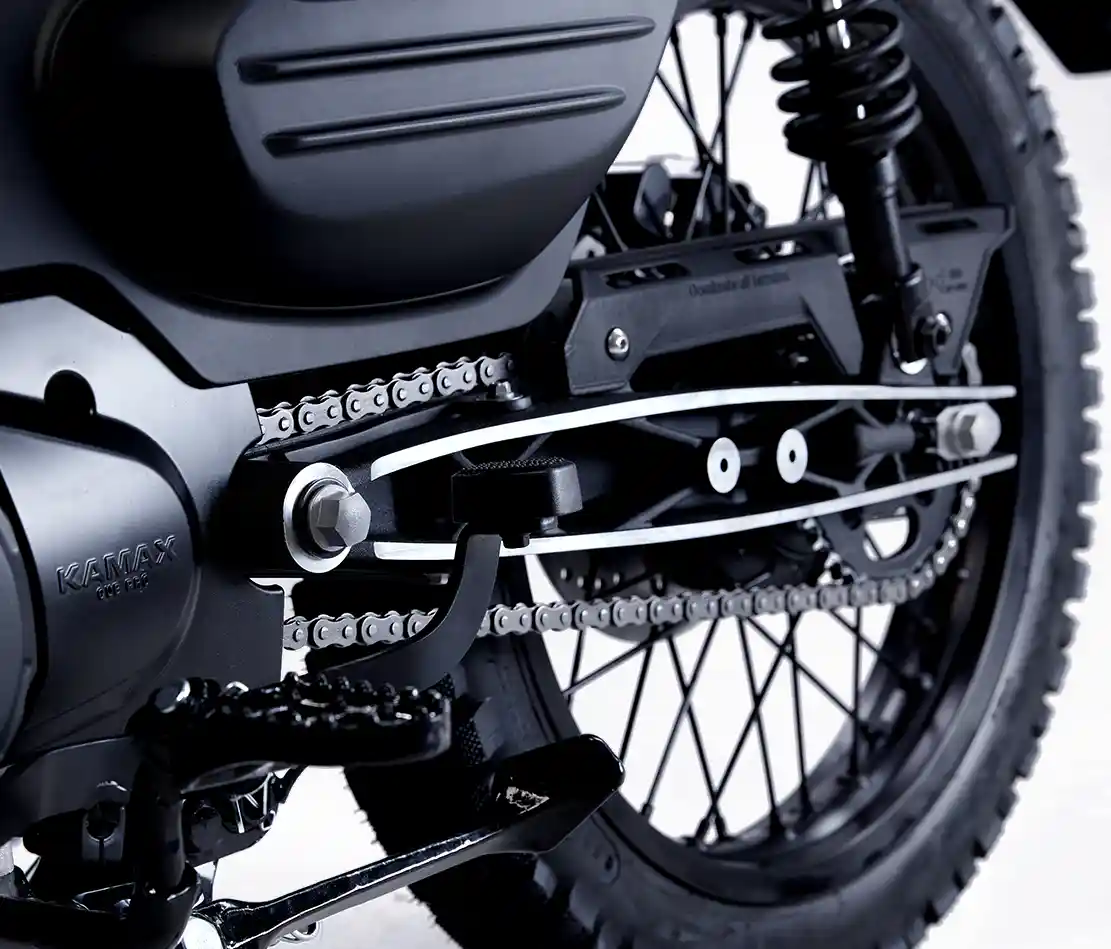

One-piece cast aluminum swingarm
One-piece cast aluminum swingarm, lightweight and strong for better handling and riding stability.

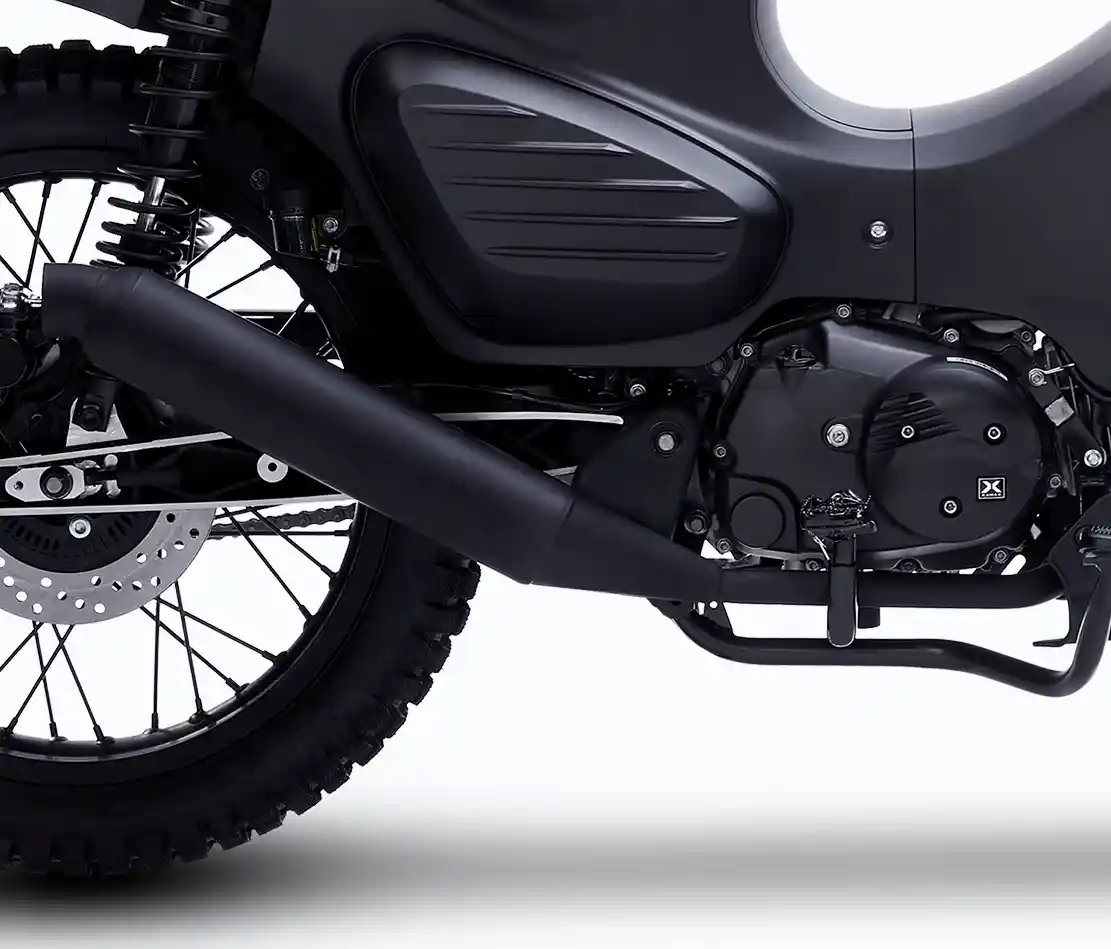

High-mounted muffler
Equipped with a high-mounted muffler to prevent exhaust blockage during water crossings, enhancing off-road capability.
Easy to park
Because of its compact size, parking in the city is easy, as is loading and unloading it from a vehicle or storing it when you’re not riding.

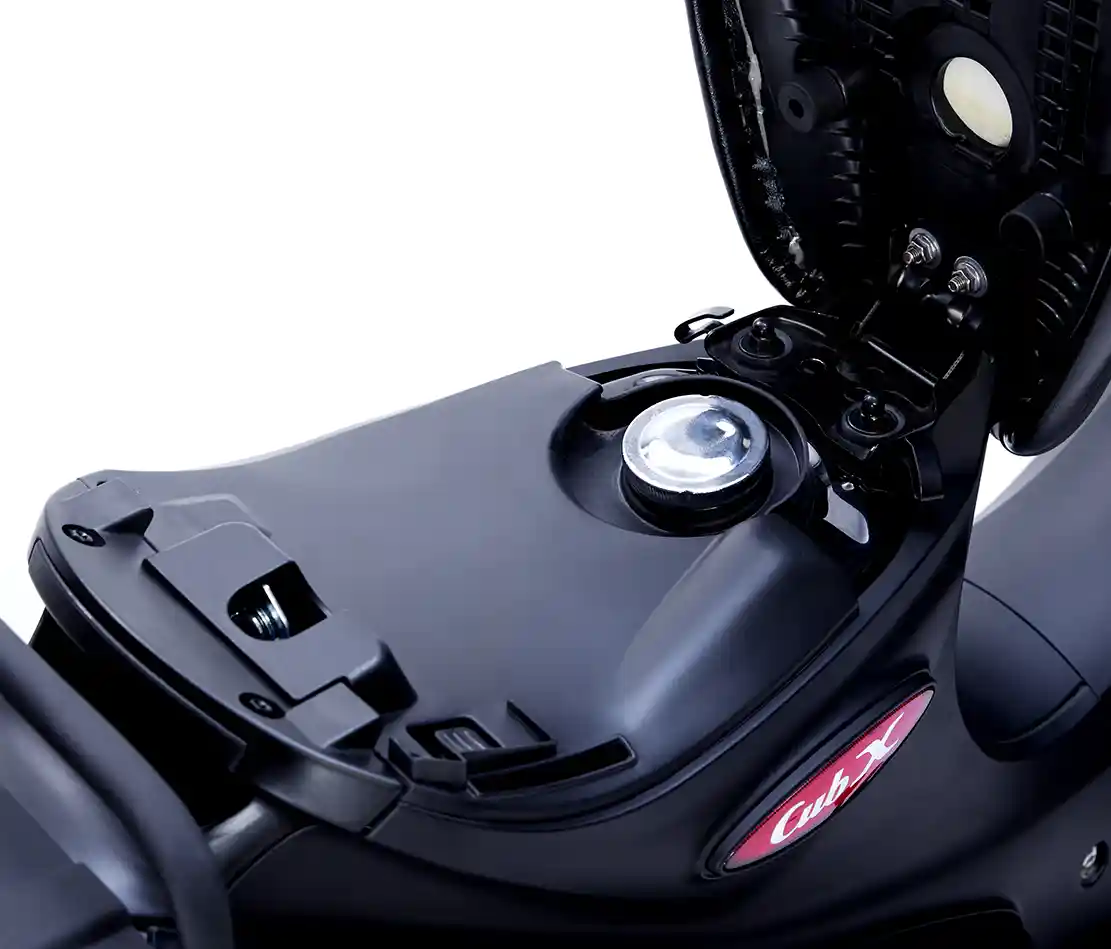

Underseat fuel tank
With a 3.8L fuel tank and excellent fuel efficiency, you can travel up to an impressive 220 miles per fill-up. And the tank filler is conveniently located under the seat, making it easy to access.

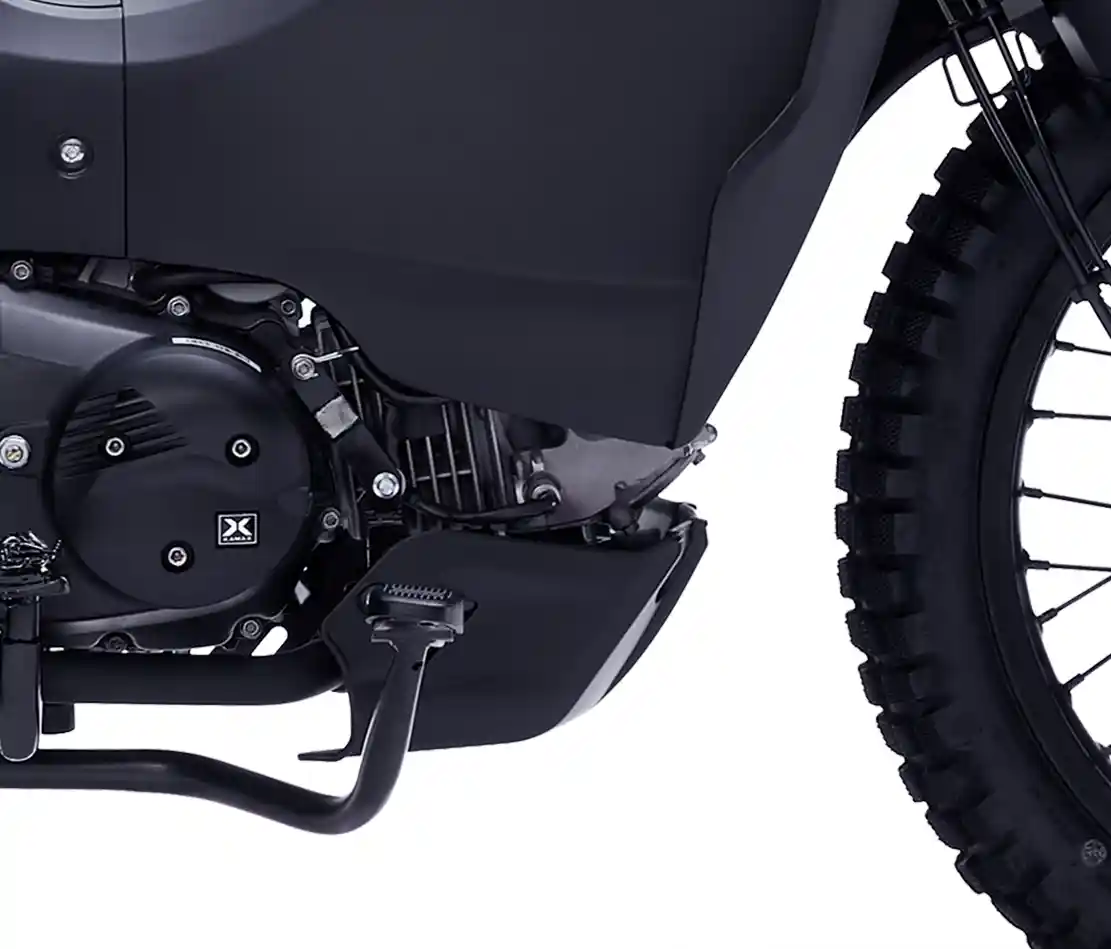

Skid plate and brush guards
Unleash your adventurous spirit with a sturdy skid plate, front brush-guard tubes, and 6.5 inches of ground clearance.
Roomy seating
The seating position is spacious and accommodating for nearly all riders, thanks to the 800mm seat height and taller handlebars.

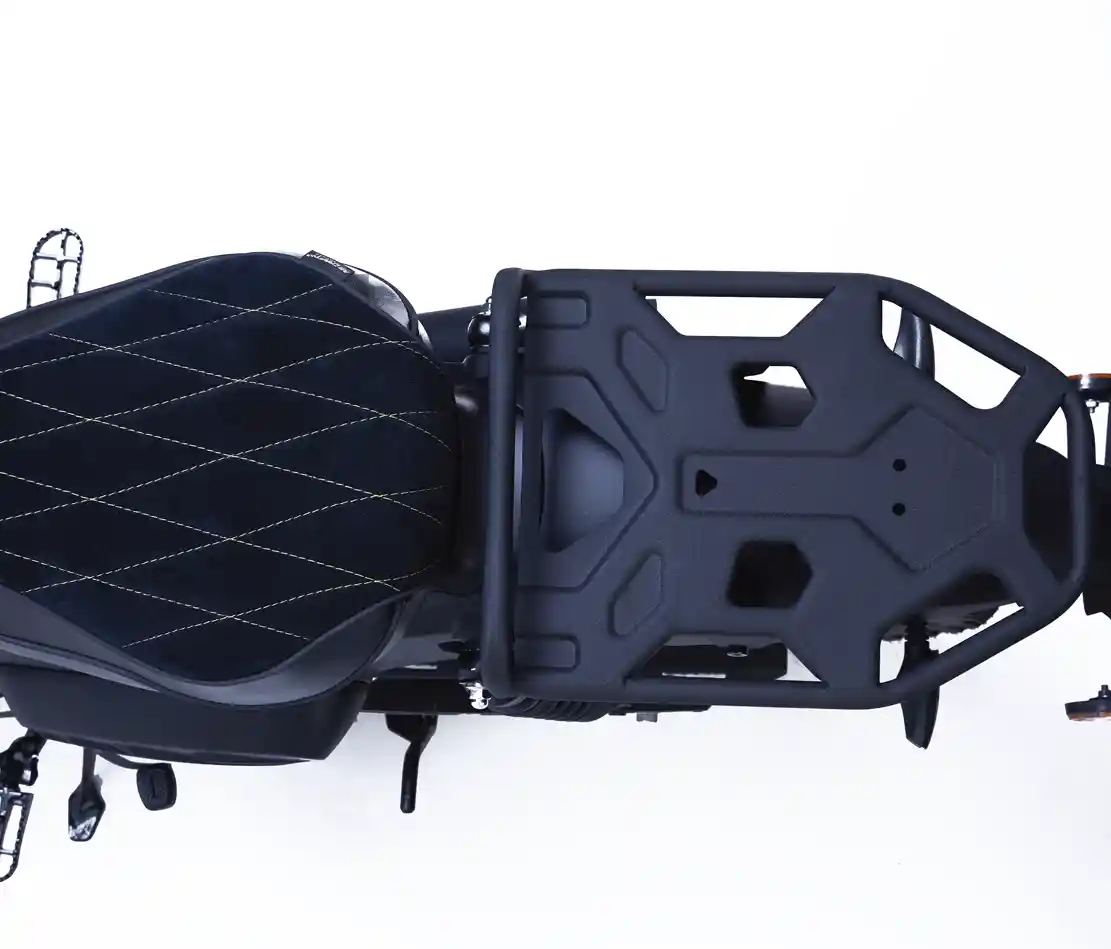

Standard Cargo rack
Equipped with a large rear luggage rack to carry more gear and enhance your riding experience. Additionally, an optional rear seat is available to suit your needs.
Electric starting
Start your ride with just a push — the electric starter makes every journey effortless.
LCD Multi-function digital instruments
The adaptive LCD digital display provides essential information at a glance, including speedometer, odometer, fuel gauge, clock, plus indicators for high/low beam, ABS, tire pressure, and real-time fuel consumption—making every ride smarter and safer..
ALL-LED lighting
Equipped with lightweight, ultra-durable, and bright full LED lights that fuse style with rugged toughness. The all-new D-class headlight dominates the road, lighting up every conquest.
View The Spec
| Basic Specification | Model Name | Cub X |
| Model Type | Underbone |
| Body Parameters | L*W *H (mm) | 1925*720*1040 |
| Seat Height (mm) | 800 | |
| Wheelbase (mm) | 1245 | |
| Minimum Ground Clearance (mm) | 160 | |
| Front Suspension System | Conventional | |
| Rear Suspension System | Dual Cylinder Shock Absorbers | |
| Fuel Tank Capacity (L) | 3.8 | |
| Curb Weight (kg) | 112 |
| Engine Parameters | Engine Model | 1P57FMJ |
| Displacement (cc) | 147.5 | |
| Number of Engine Cylinders | 1 | |
| Bore * Stroke (mm) | 57*57.8 | |
| Stroke | 4 | |
| Compression Ratio | 9.5：1 | |
| Cooling Method | Air-Cooled | |
| Max. Power (kW) / (rpm) | 7.5Kw/8000 | |
| Max. Torque (N·m) / (rpm) | 10.5Kw/5000 | |
| Max. Horsepower (PS) / (rpm) | 9.79PS/8000 | |
| Energy Type | Gasoline | |
| Fuel Grade | 92# | |
| Emission Standards | National Standard Ⅳ/ Euro 5+ |
| Power Transmission | Gear | 4-speed Rotary Transmission With High Gear Protection |
| Clutch | Wet Dual-Clutch Transmission (DCT) | |
| Transmission Method | Chain Drive |
