Cub S 150cc | China Manufacturer | Wholesale Price
A retro-inspired 150cc street bike, blending classic design with modern tech — ABS, TCS, smart key, LED lighting, and a short-tail silhouette built for agile urban riding.
Cub Series
Own the city,
escape the city,
remake the city,
—One Cub at a time.
CUB PRO
CUB X
CUB S
CUB EV
KAMAX-TOP CHINESE MOTORCYCLE SUPPLIER

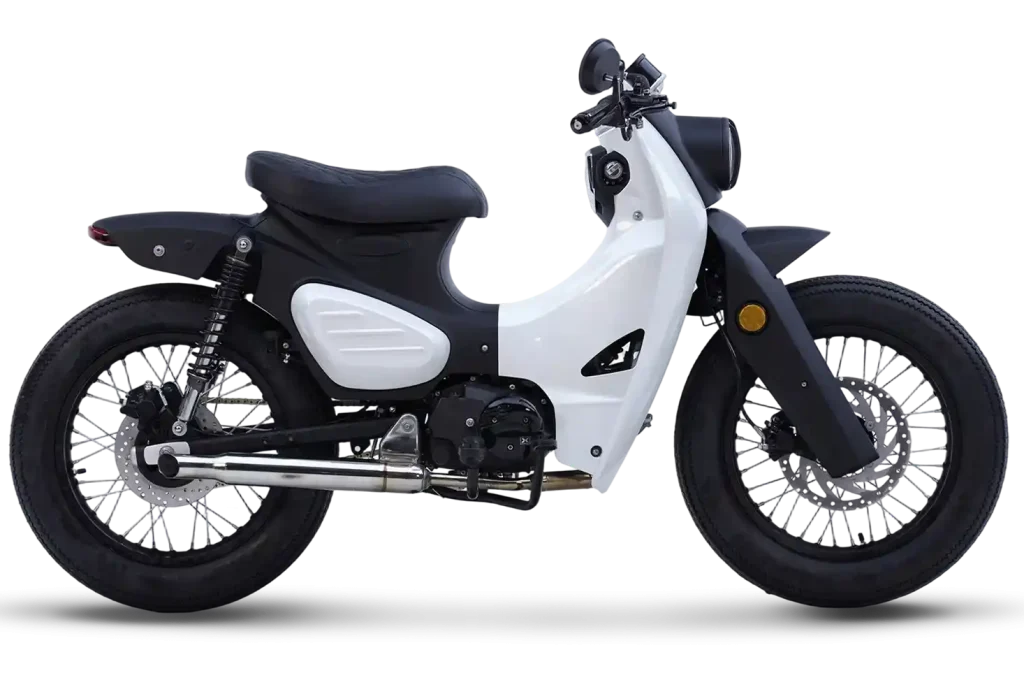

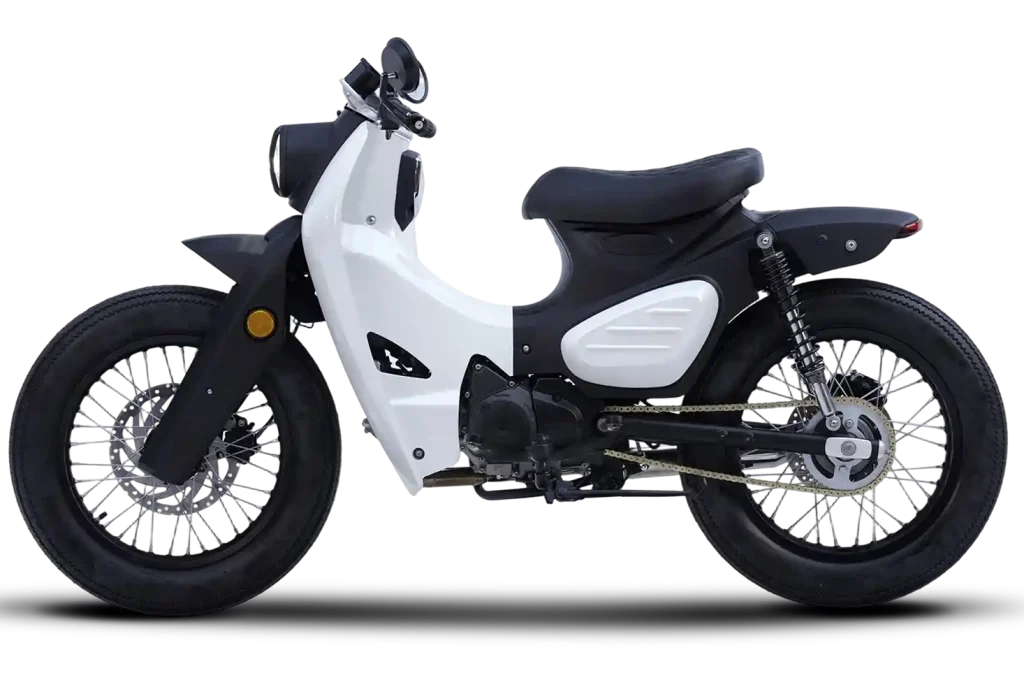

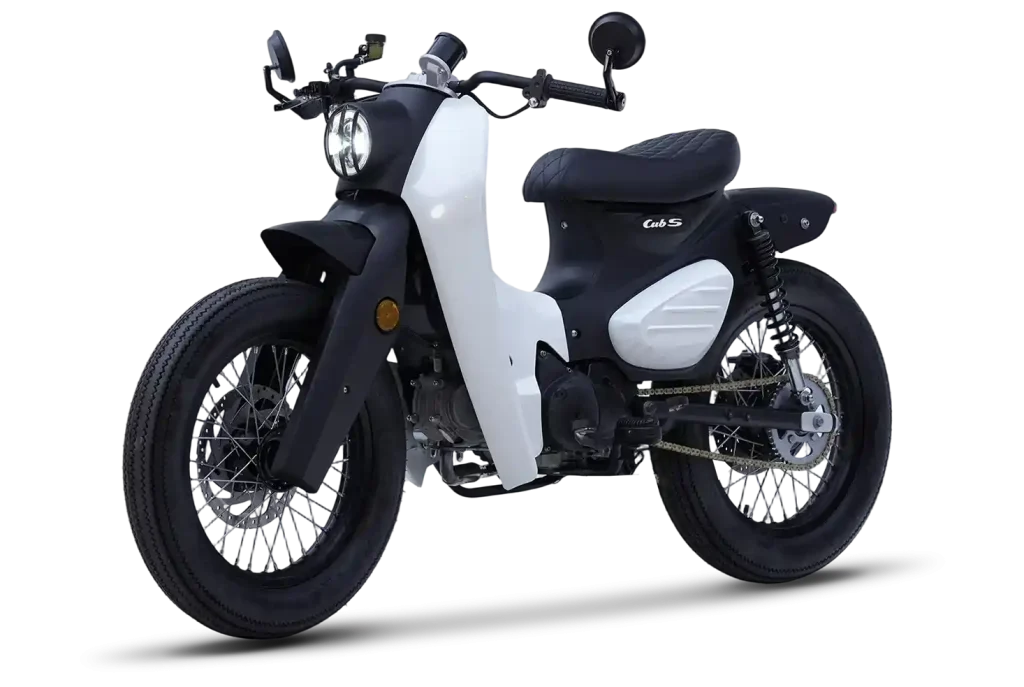

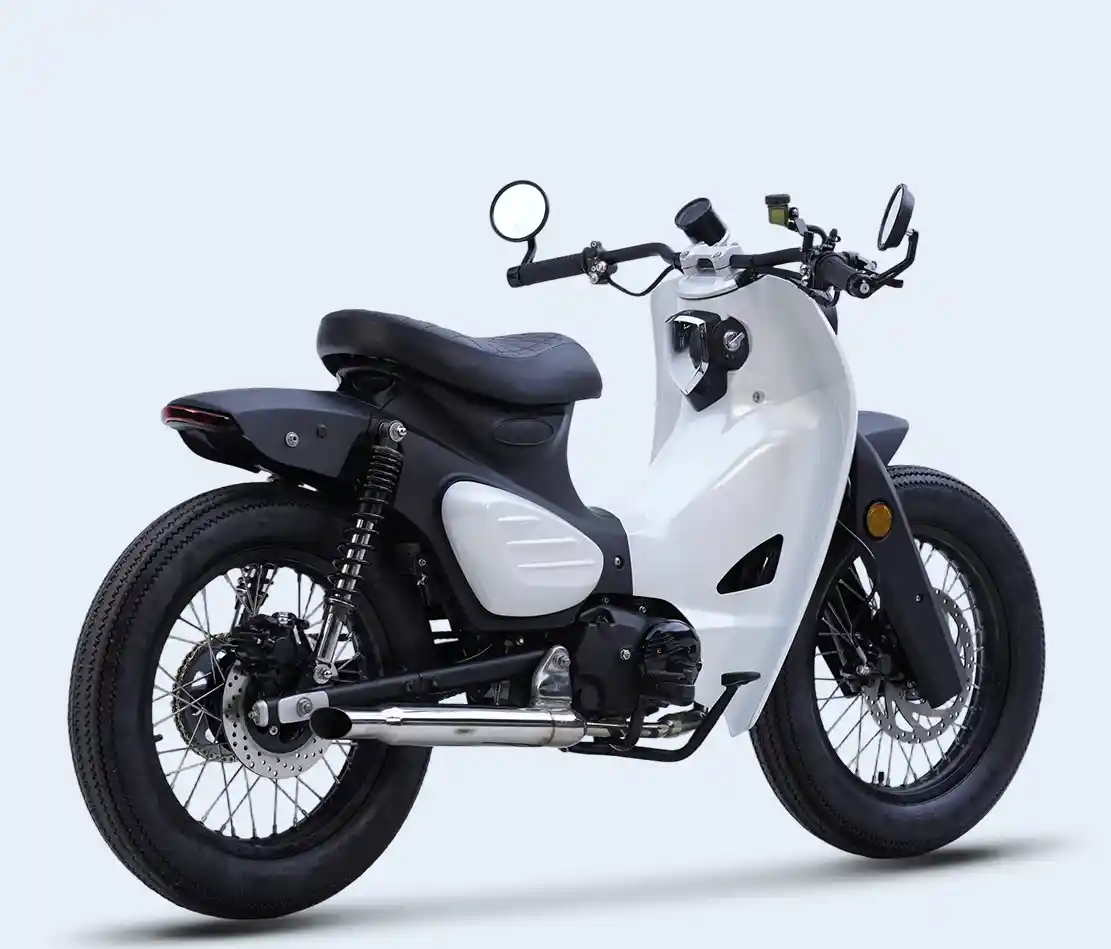

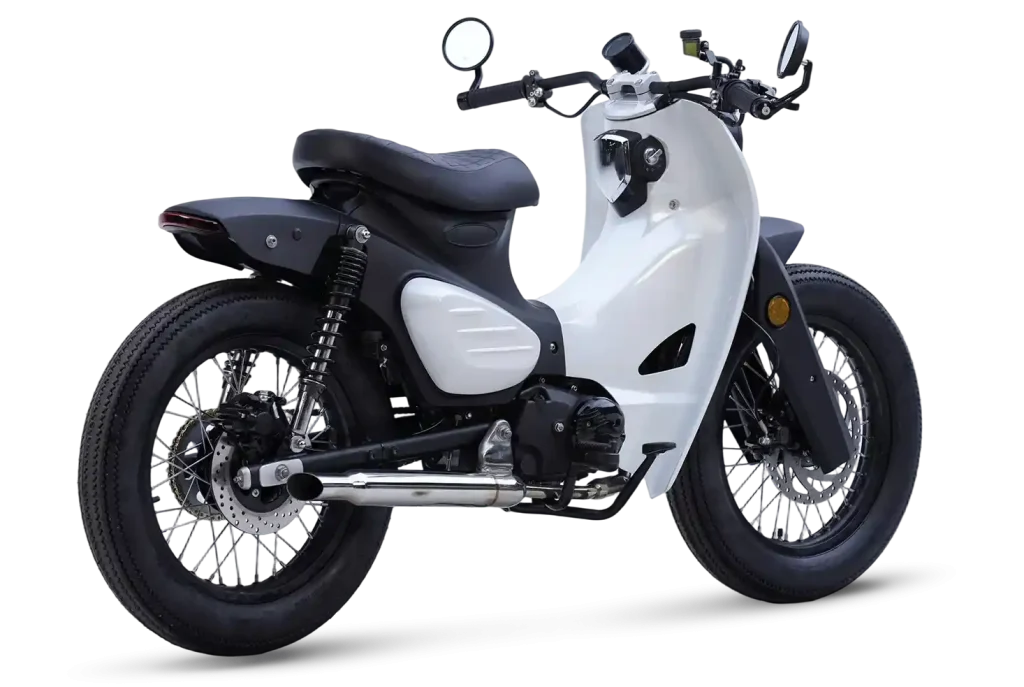

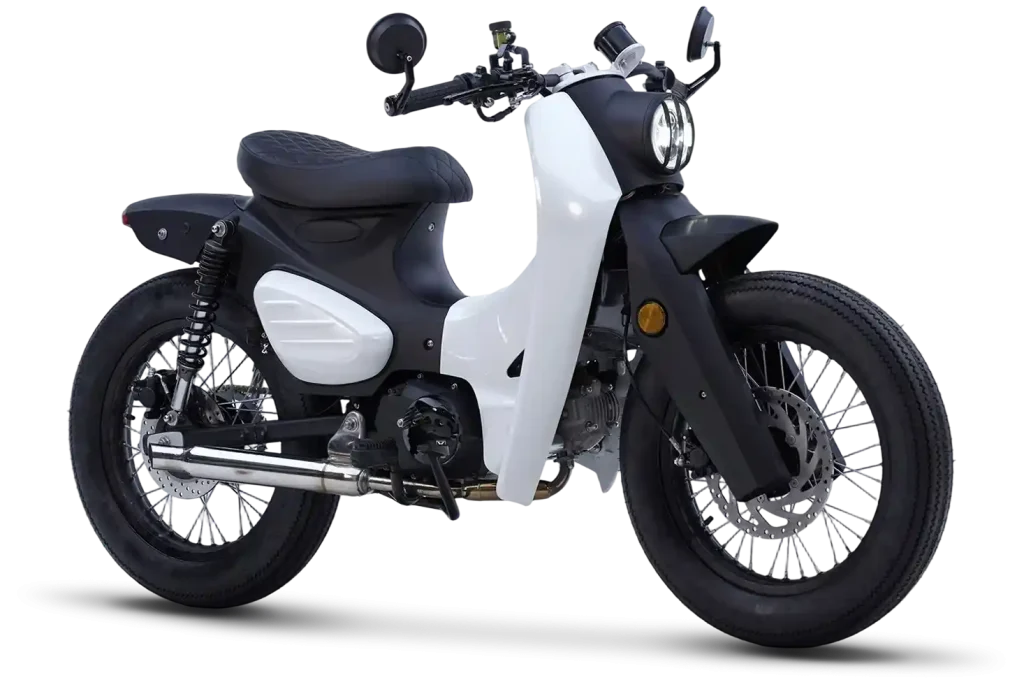

CUB S
Crafted for the City. Styled for the Bold.
A retro-inspired 150cc street bike, blending classic design with modern tech — ABS, TCS, smart key, LED lighting, and a short-tail silhouette built for agile urban riding.
Engine: 147.5cc, 4-Stroke, Air-Cooled
Four-speed semi-automatic transmission
Standard ABS/TCS
Reinforced steel backbone chassis
Classic styling meets modern adventure

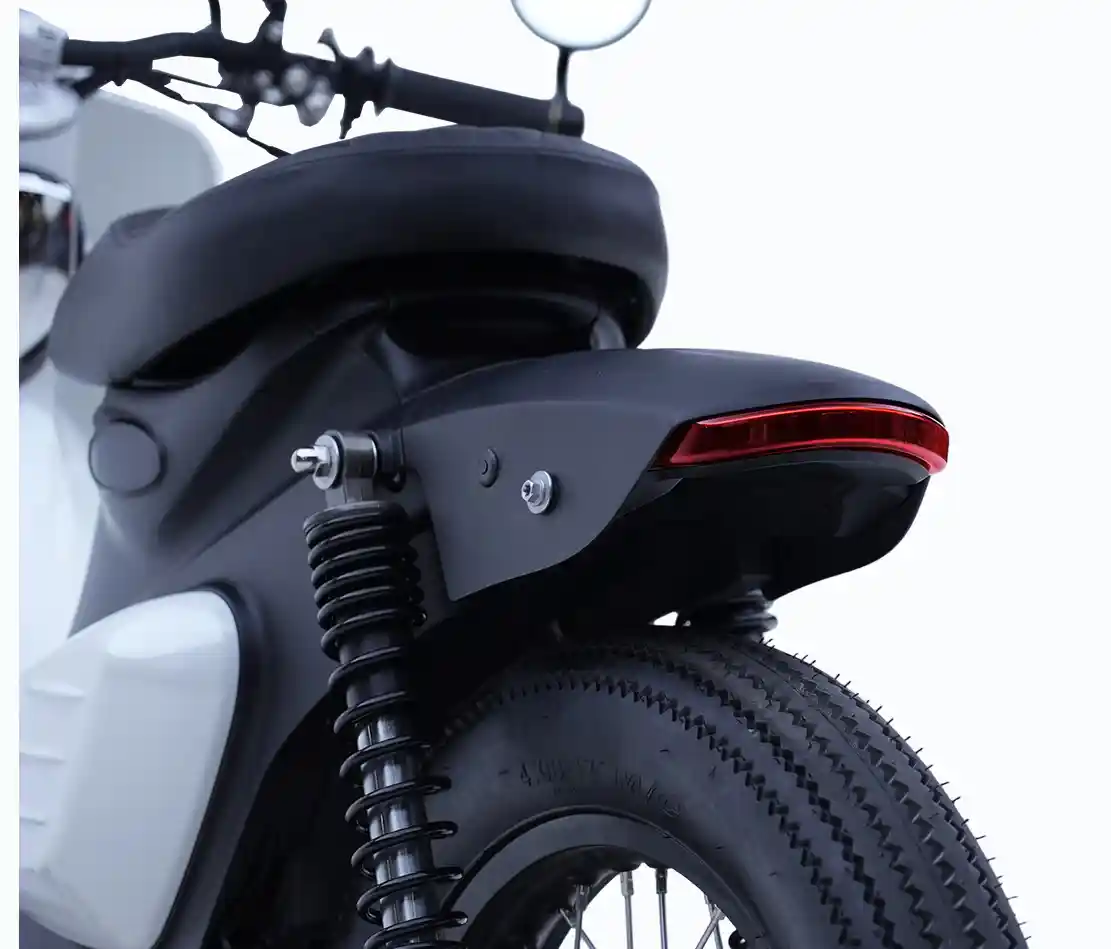

Short Tail Custom
Ride the Classics, Enjoy the Style
CUB S 150
Factory Direct Sale Support Custom
The TOP Cub Motorcycle Manafacturer in China

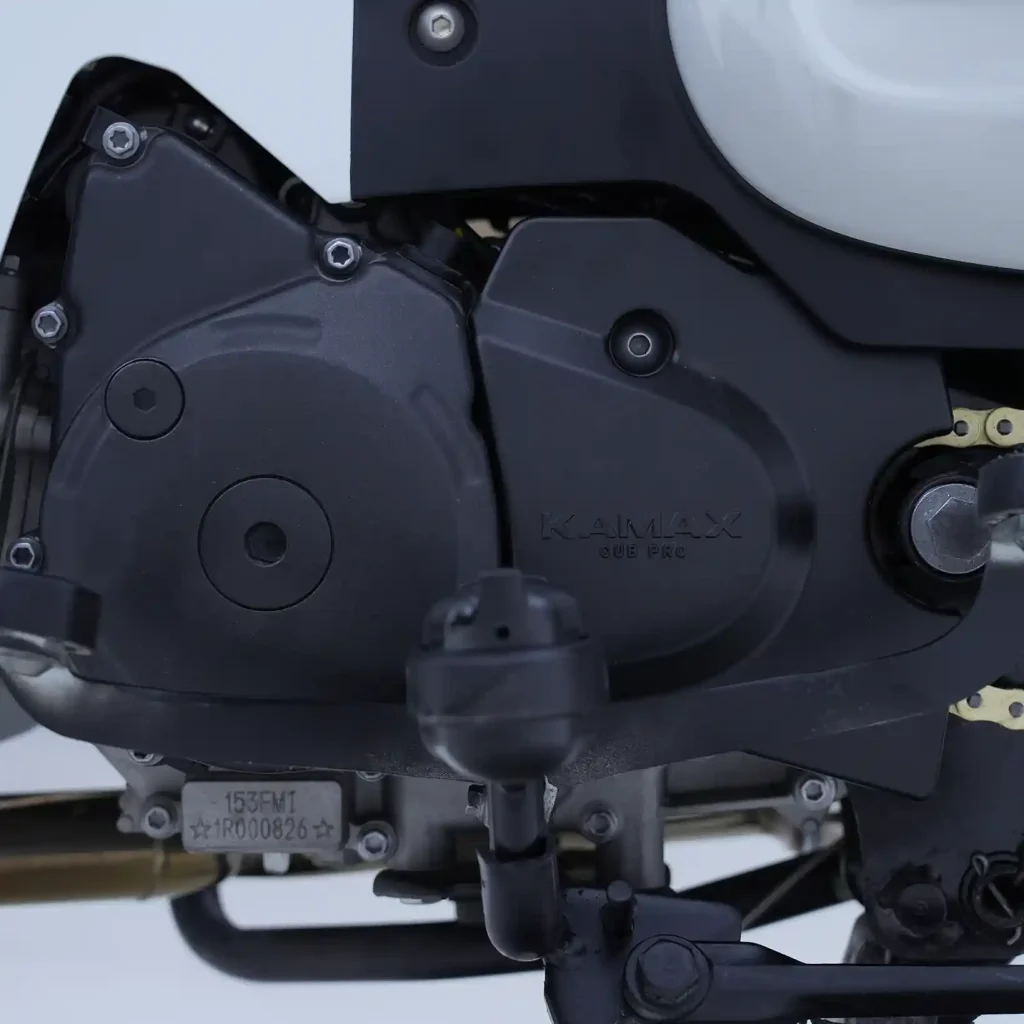

150CC
fuel-injected engine
Endlessly reliable and fun, it’s a giant in its class, delivering impressive horsepower, a broad powerband, and excellent fuel efficiency. Plus, air cooling keeps things simple and adds to its exceptional design.

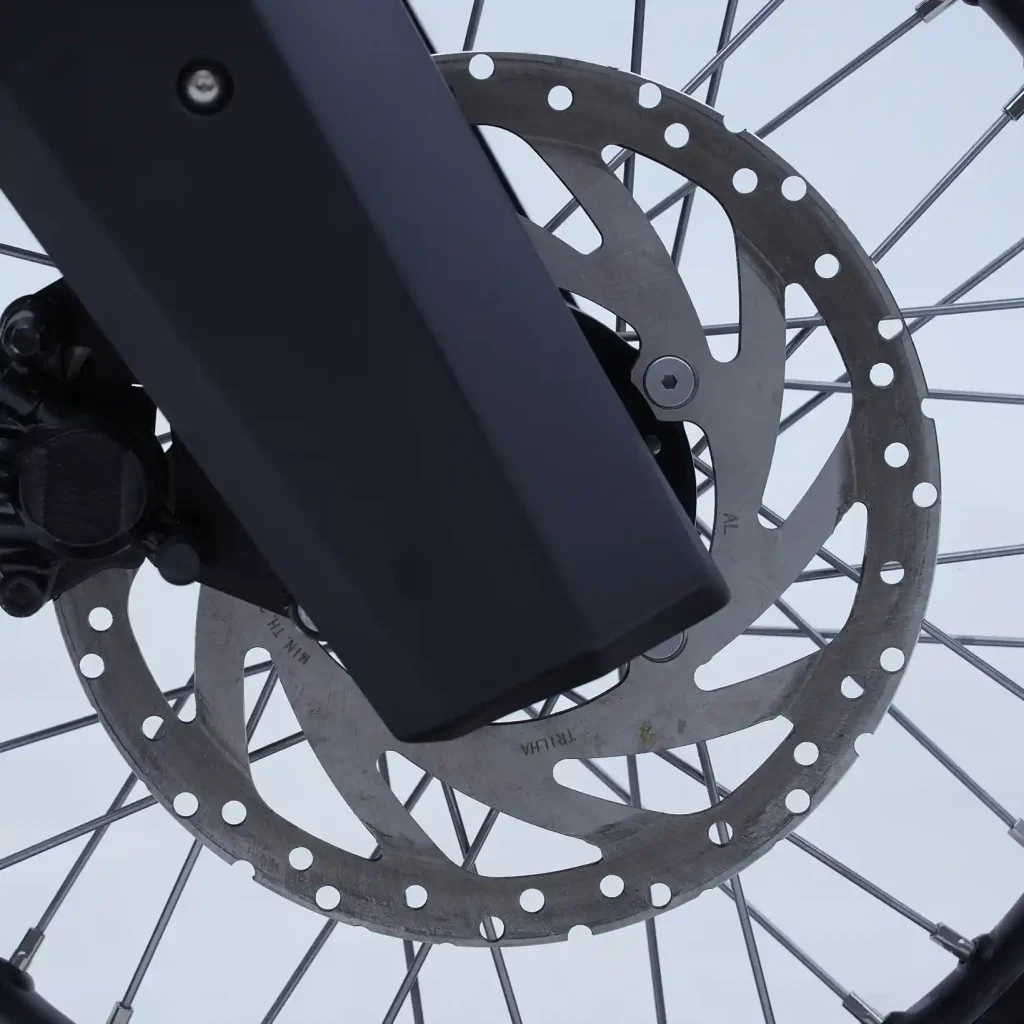

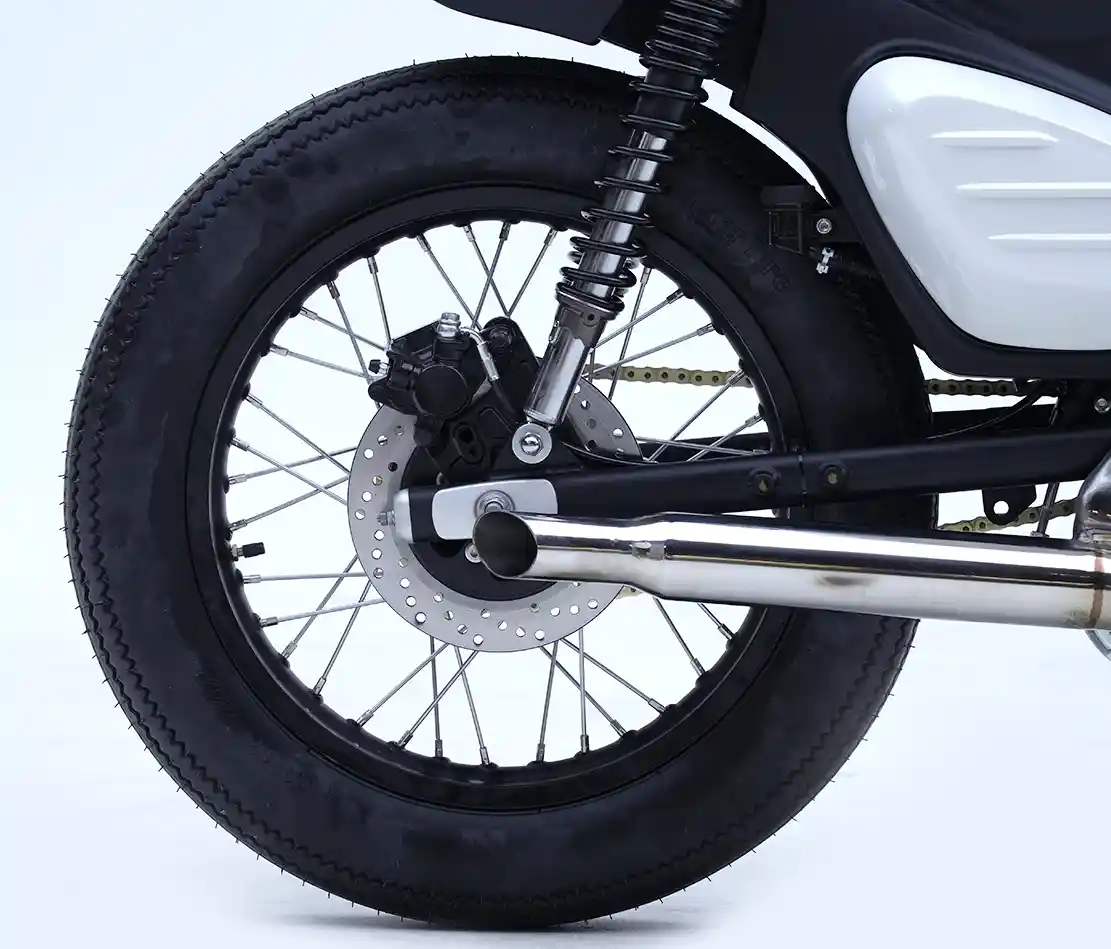

disc brakes
Front and rear hydraulic disc brakes
Hydraulic disc brakes — 220mm front and rear — deliver strong and consistent stopping power. The added safety of standard ABS and TCS gives riders greater confidence in all conditions.
ABS/TCS
Standard ABS/TCS
Front and rear wheels come standard with Anti-Lock Braking System (ABS) and Traction Control System (TCS), providing better control and stability when braking on wet or uneven surfaces.
steel backbone
Reinforced steel backbone chassis
The frame features six-stage anti-corrosion treatment and dual-layer coating for enhanced durability. Ultrasonic weld inspection ensures strong joints, while precision tube alignment improves assembly accuracy and overall reliability.
Kickstart your explorer life

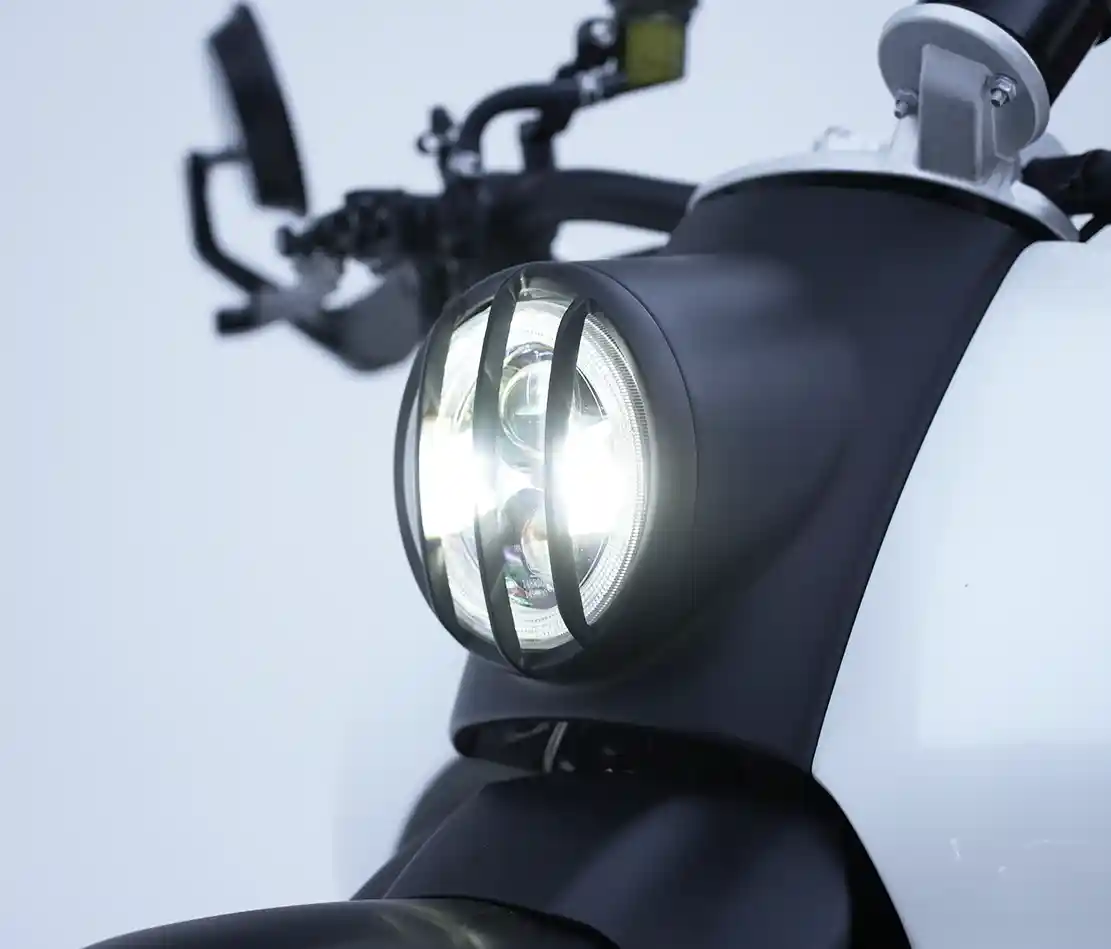

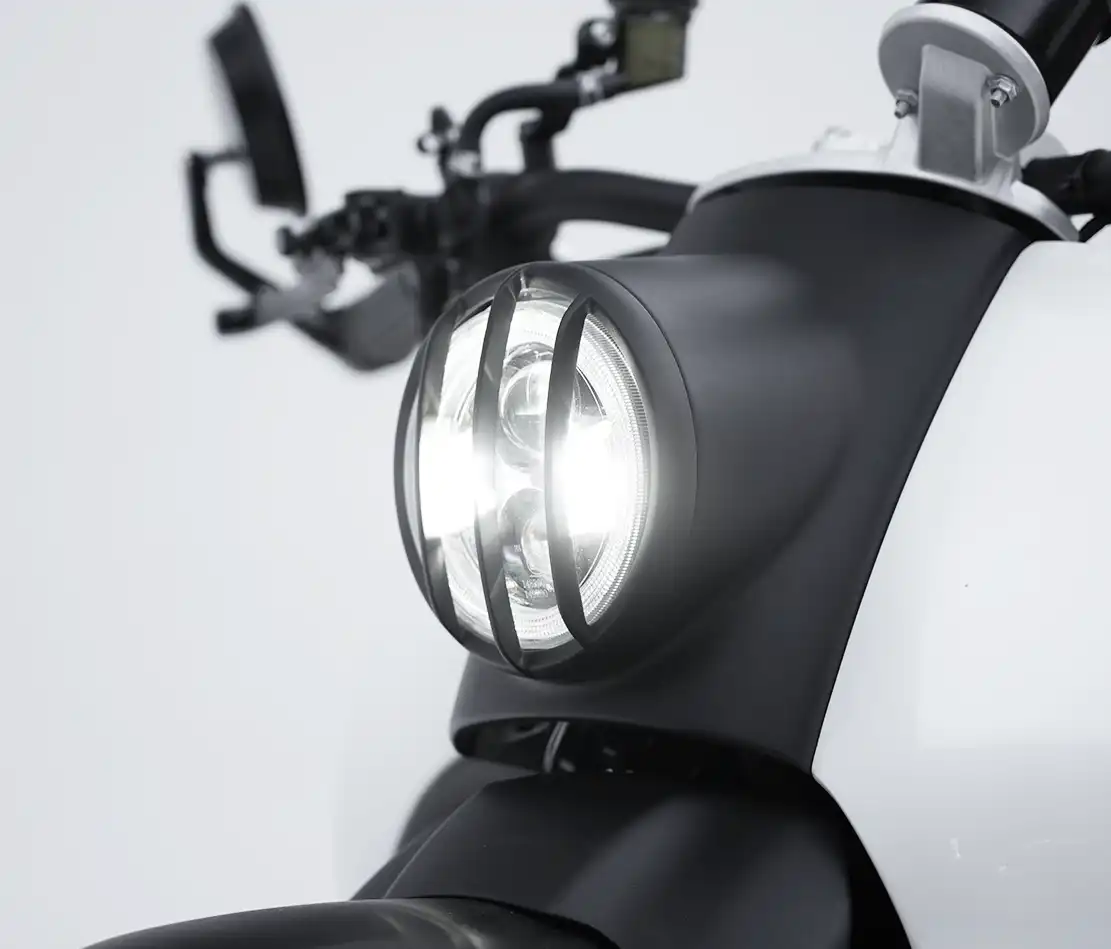

Retro LED Projector Headlight
A classic silhouette meets modern brilliance. The retro-inspired LED projector headlight with multi-bead layout delivers crisp, wide-angle illumination — bold in style, sharp in performance.

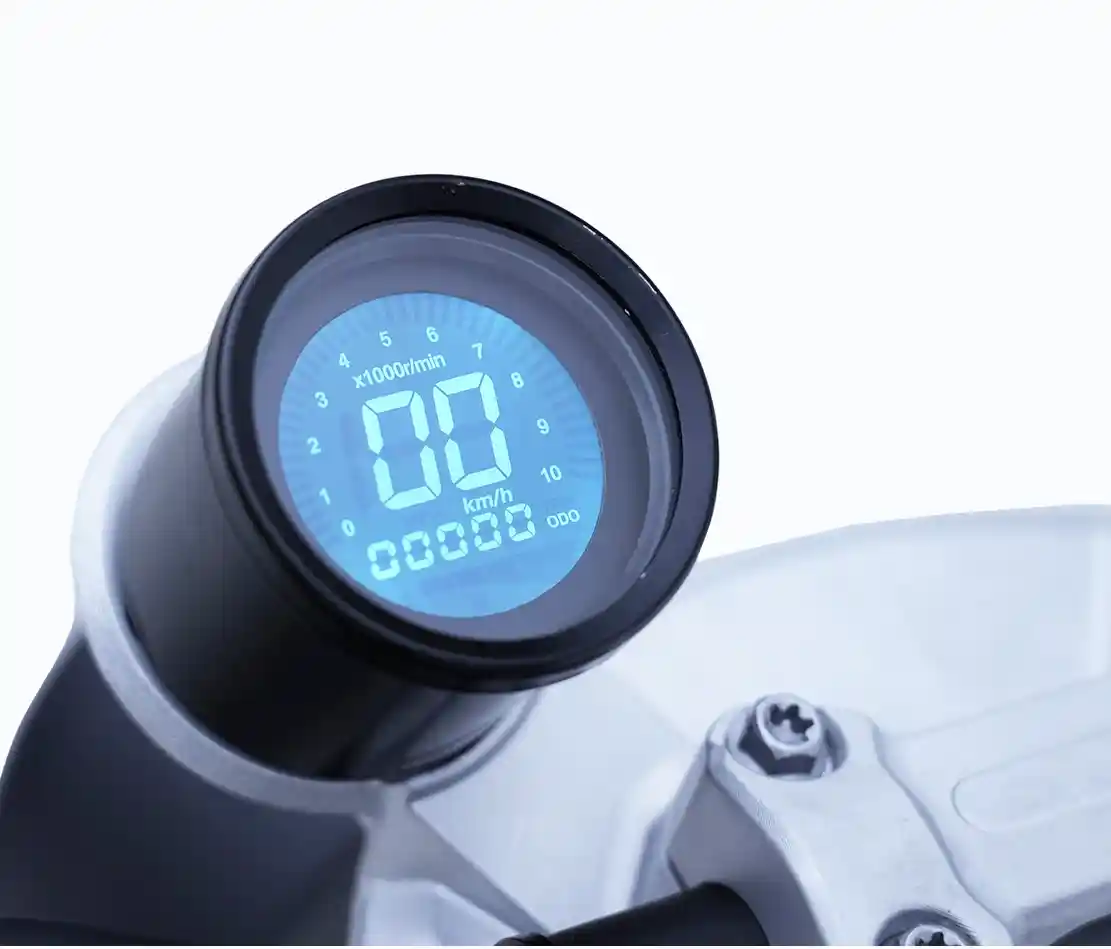

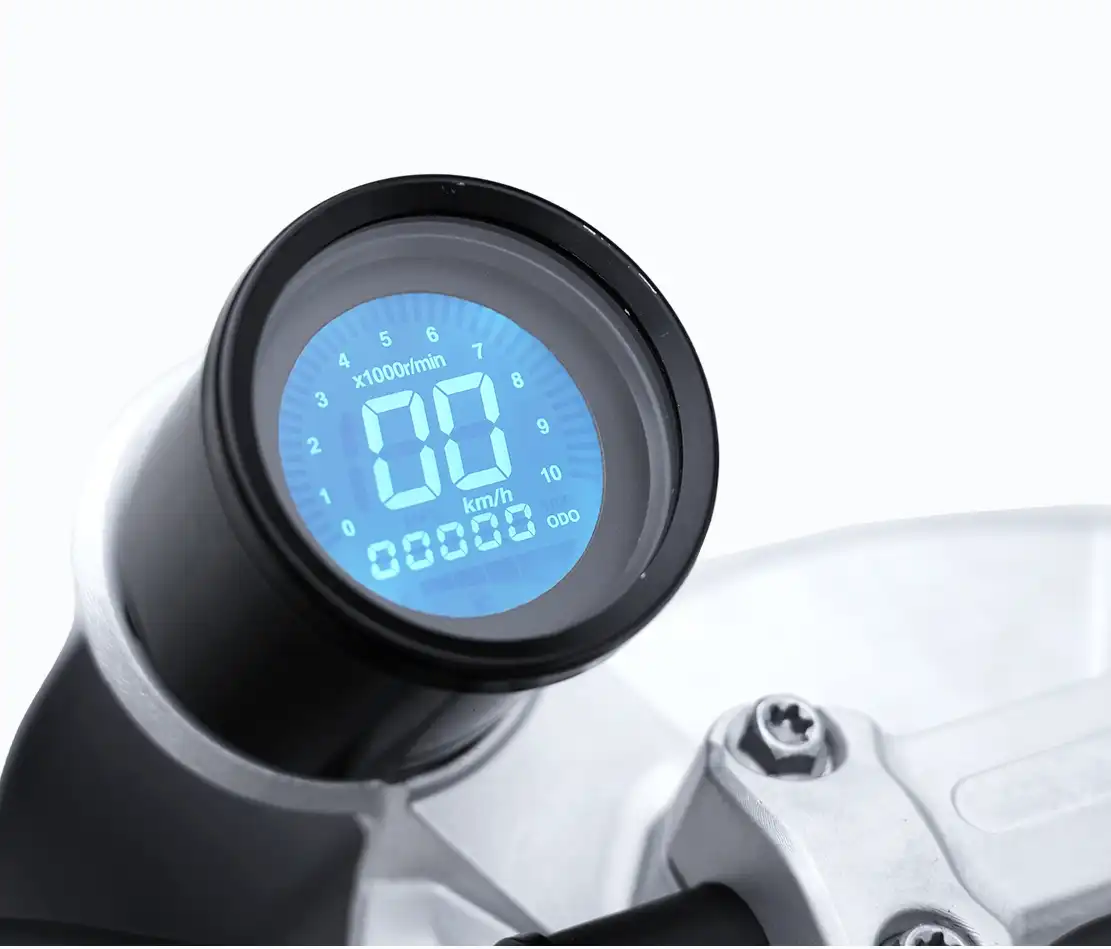

Single-Pod Retro Instrument
The single-pod retro gauge keeps your cockpit clean and classic — essential info at a glance, wrapped in pure vintage soul.

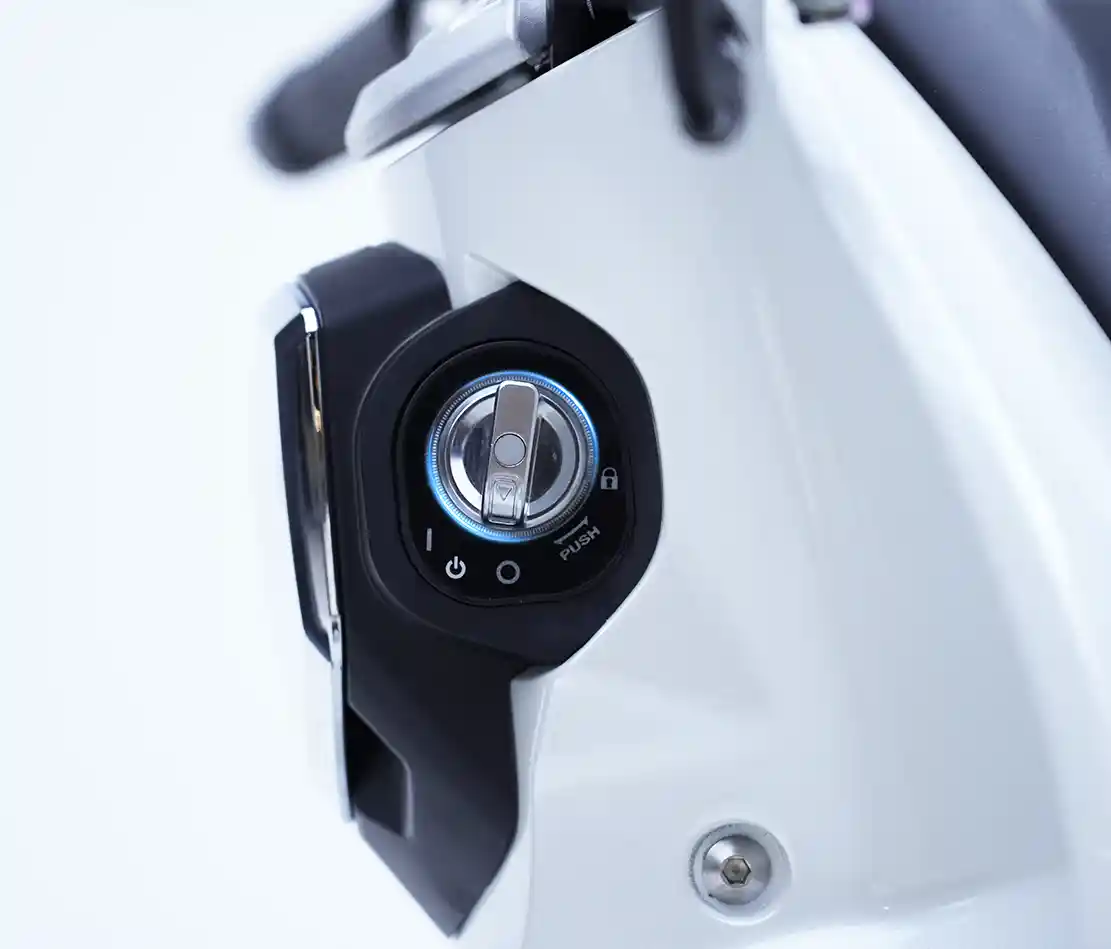

Electric starting
Start smart. Ride fast. With keyless ignition, just one press brings the machine to life — no keys, no hassle, all attitude.

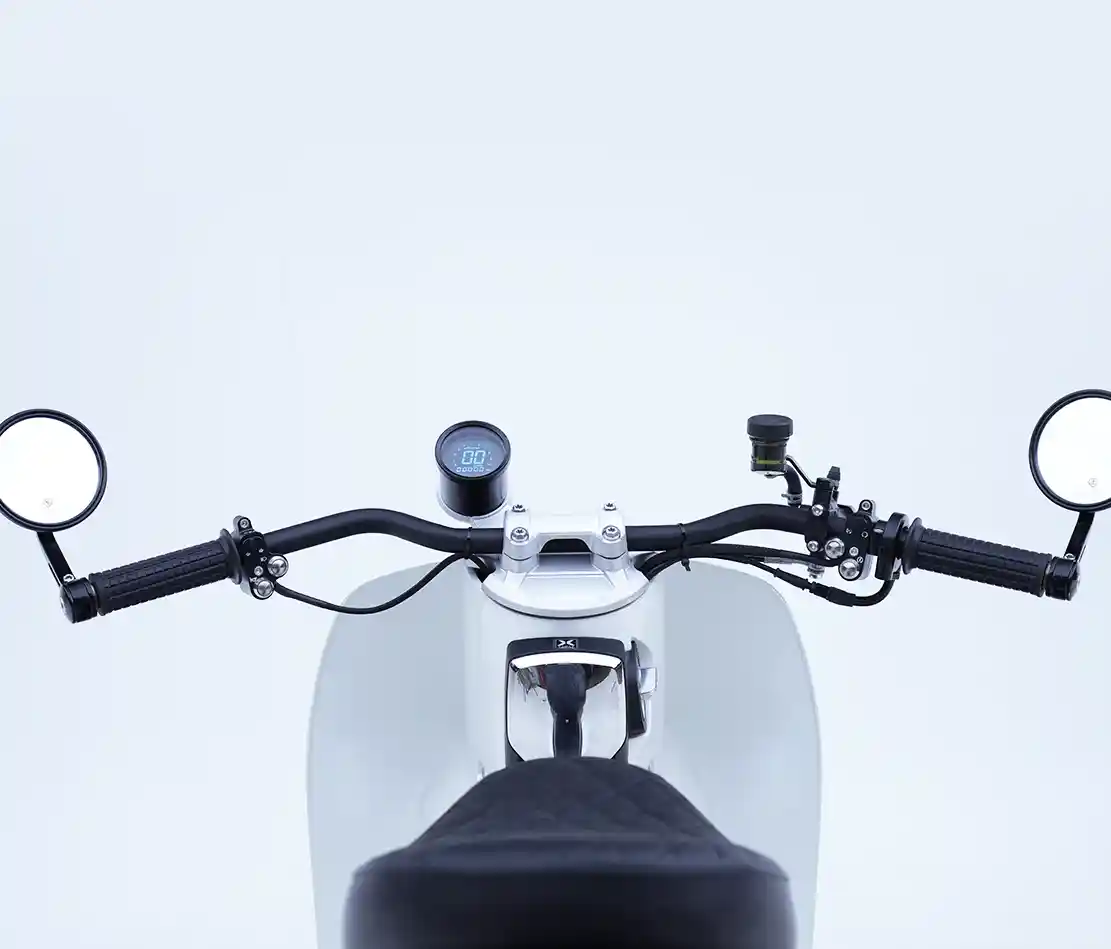

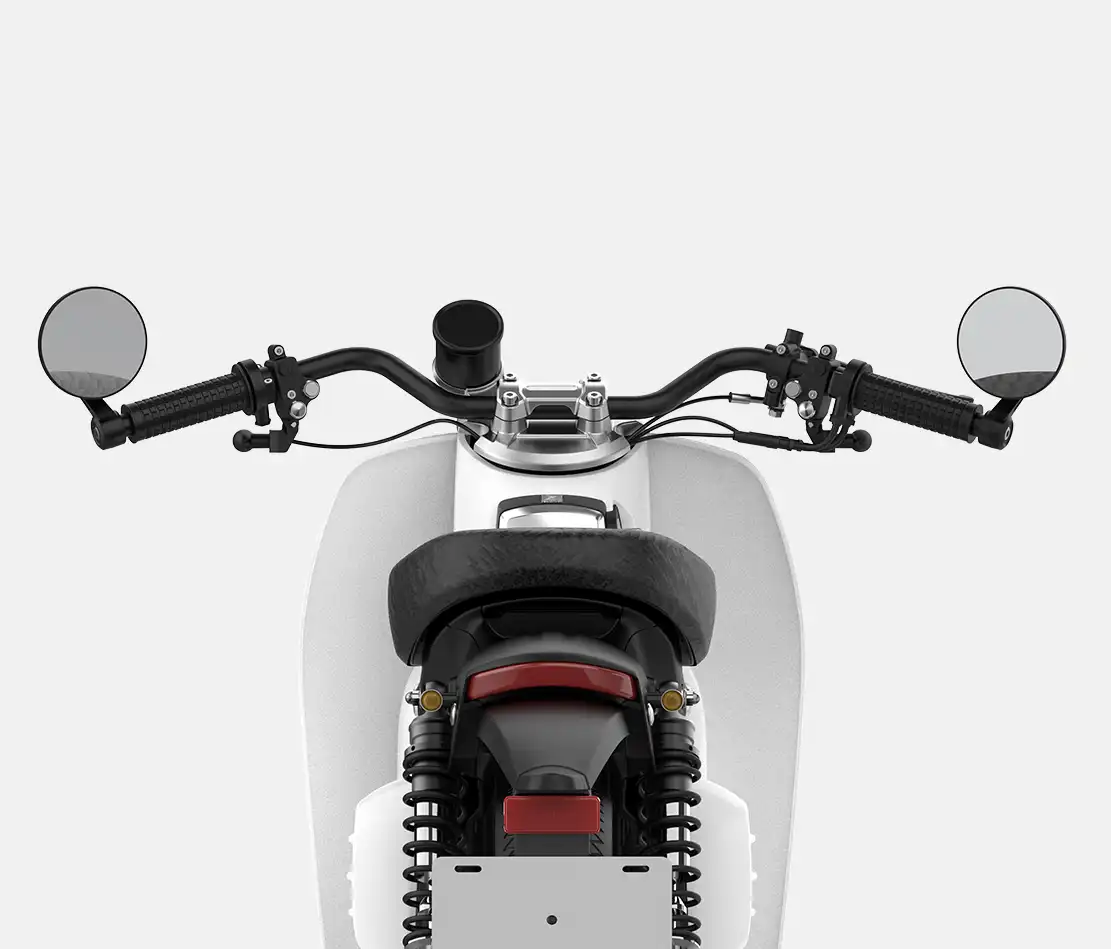

Aluminum Alloy Tapered Handlebar
Sleek and strong, the aluminum alloy tapered handlebar blends form and function. Its variable diameter design enhances grip comfort and adds a refined, custom look to your ride.
Easy to park
Because of its compact size, parking in the city is easy, as is loading and unloading it from a vehicle or storing it when you’re not riding.

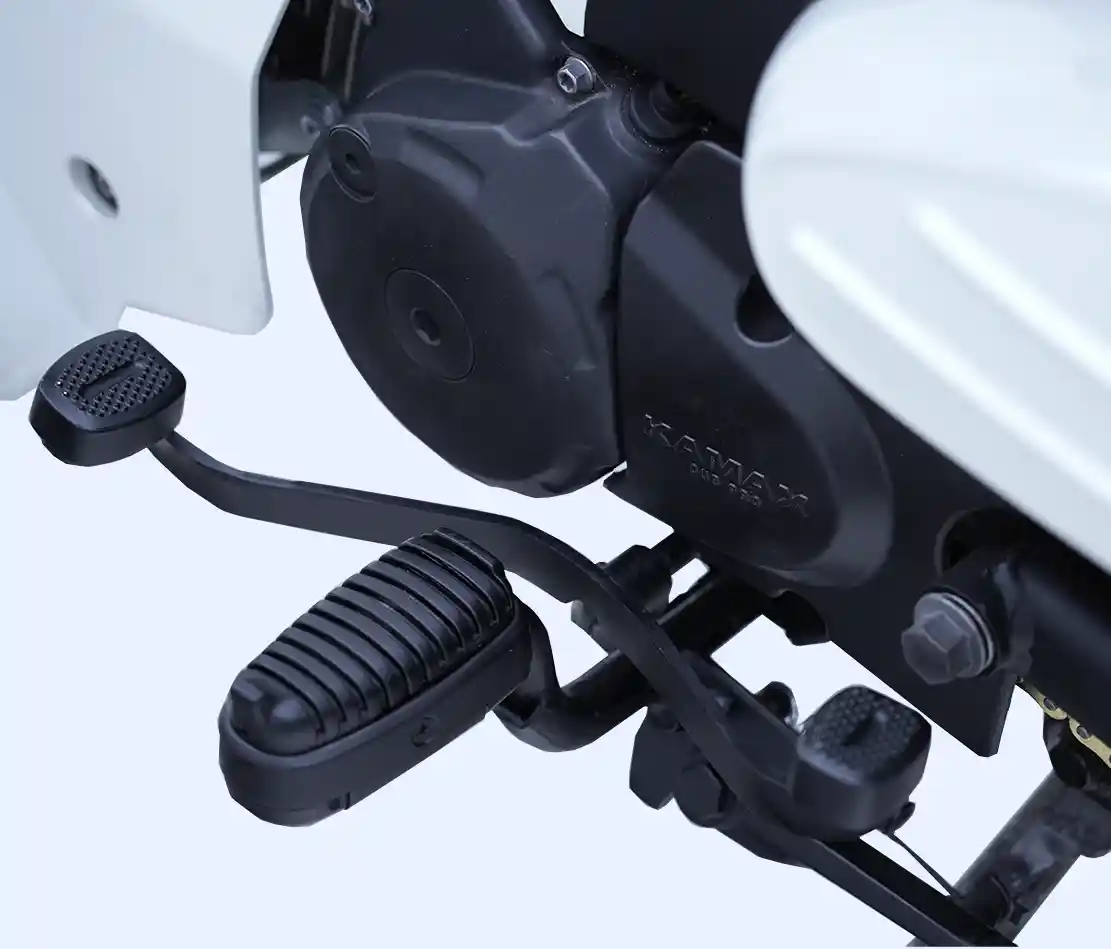

Four-speed semi-automatic transmission
With the four-speed semi-automatic transmission, you shift with your left foot like a traditional motorcycle, but there’s no clutch to worry about.

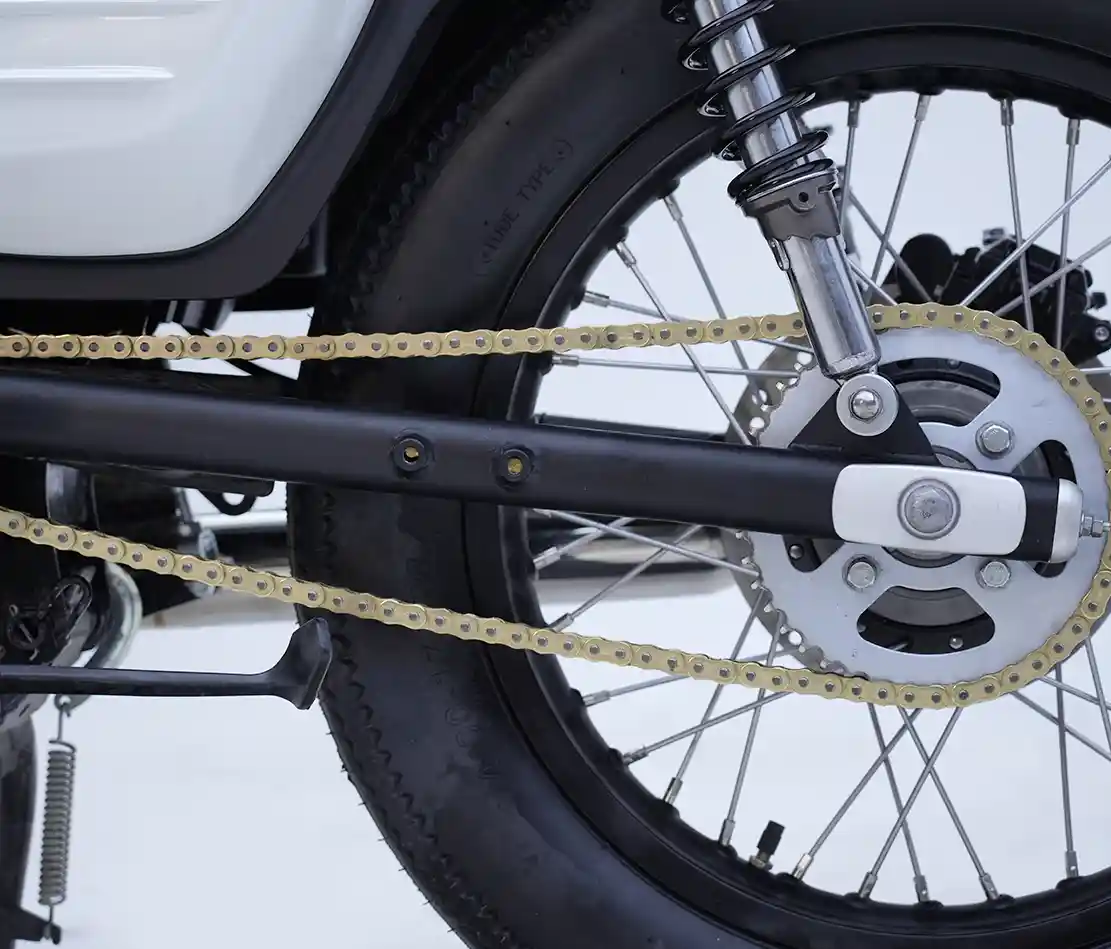

DID O-ring Sealed Chain
DID O-ring chain features durable rubber seals that keep lubricant inside and dirt out. This reduces wear, extends chain life, and ensures smooth, reliable power transfer on any ride.
Retro-Comfort Seat Height
800mm seat height offers confident footing and all-day comfort. Slim, low, and in perfect harmony with the bike’s retro soul.
4.0-17 Classic Sawtooth Tires
Beefy 4.0-17 sawtooth tires deliver rugged grip with vintage attitude. Built for street rebels and weekend wanderers, they complete the look — and own the road.

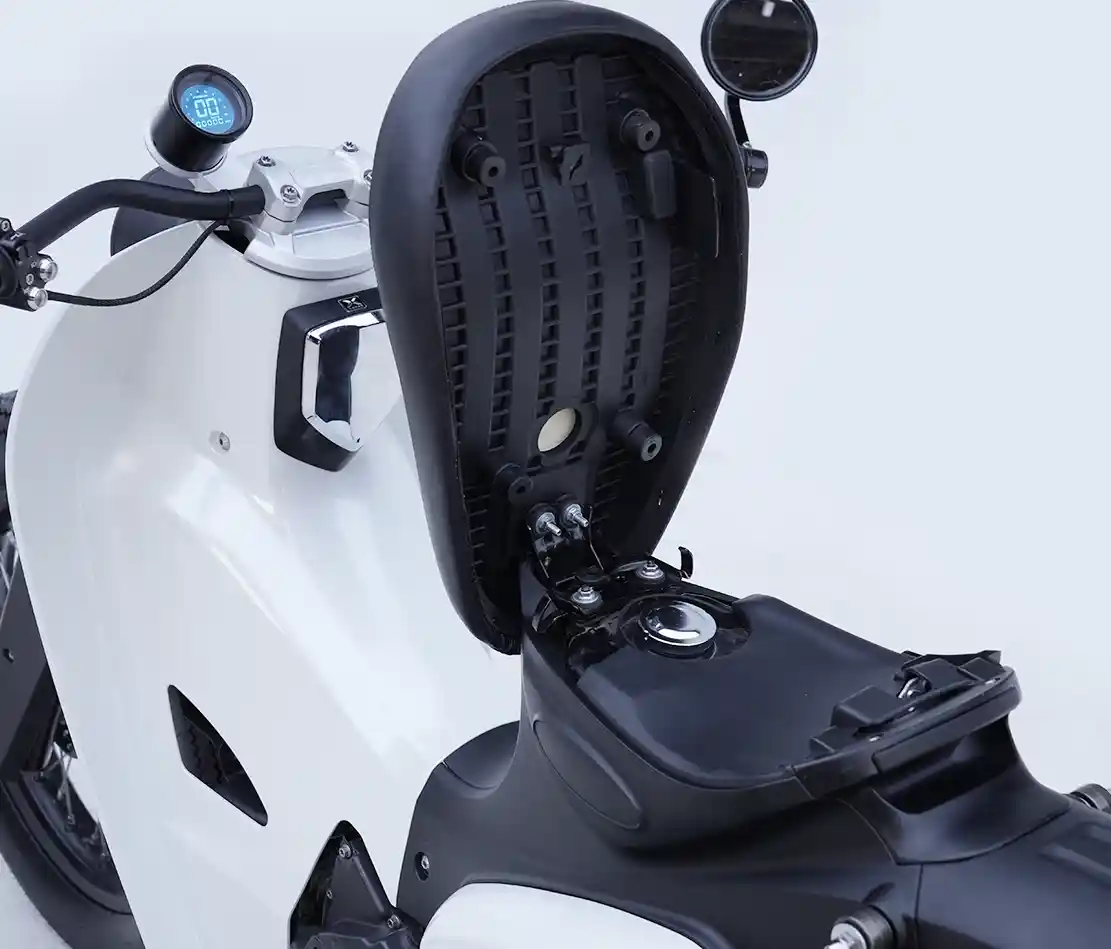

Underseat fuel tank
With a 3.8L fuel tank and excellent fuel efficiency, you can travel up to an impressive 220 miles per fill-up. And the tank filler is conveniently located under the seat, making it easy to access.

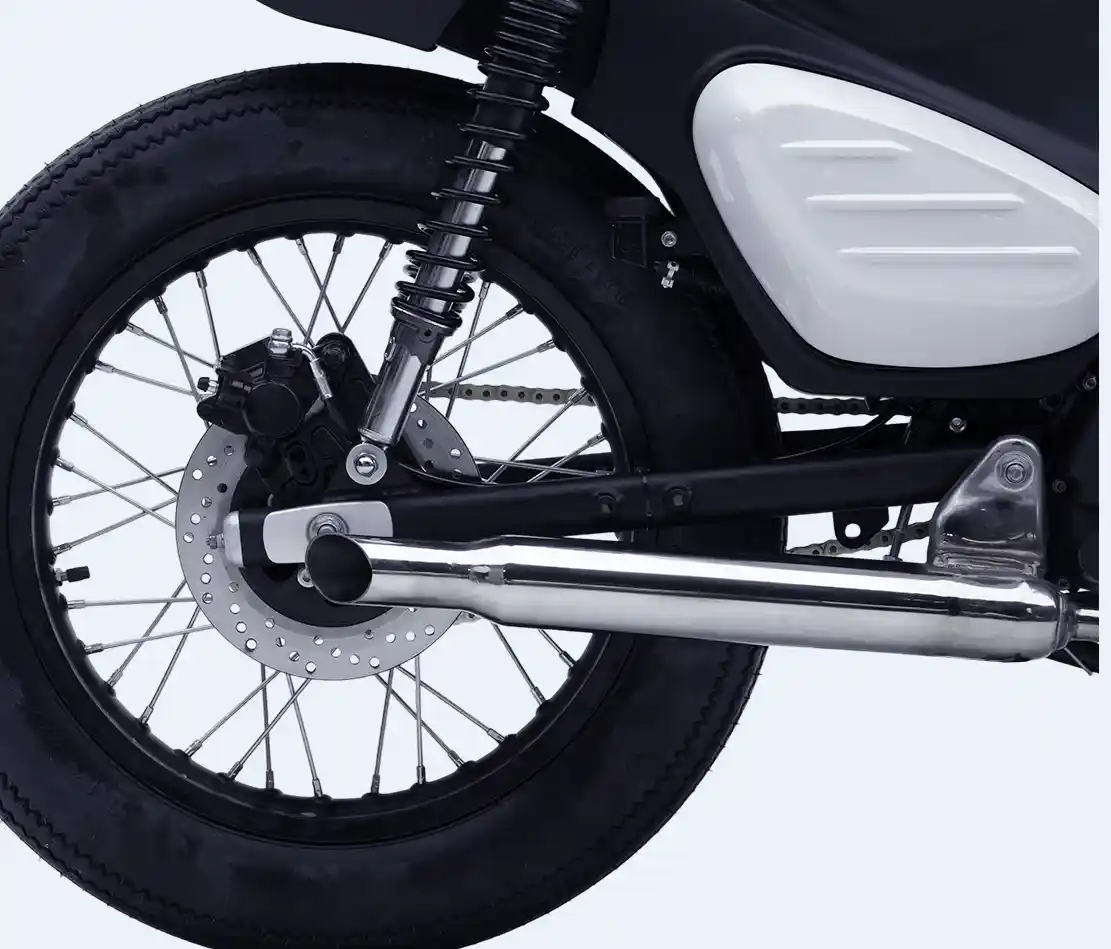

Stainless Steel Retro Exhaust
Crafted from premium stainless steel, this retro-style muffler delivers a deep, authentic sound with classic looks. Durable, corrosion-resistant, and designed to turn heads.
Step-through chassis
The seating position is spacious and accommodating for nearly all riders, thanks to the 800m
View The Spec
| Basic Specification | Model Name | Cub S |
| Model Type | Underbone |
| Body Parameters | L*W *H (mm) | 2020*850*1060 |
| Seat Height (mm) | 800 | |
| Wheelbase (mm) | 1245 | |
| Minimum Ground Clearance (mm) | 160 | |
| Front Suspension System | Conventional | |
| Rear Suspension System | Dual Cylinder Shock Absorbers | |
| Fuel Tank Capacity (L) | 3.8 | |
| Curb Weight (kg) | 112 |
| Engine Parameters | Engine Model | 1P57FMJ |
| Displacement (cc) | 147.5 | |
| Number of Engine Cylinders | 1 | |
| Bore * Stroke (mm) | 57*57.8 | |
| Stroke | 4 | |
| Compression Ratio | 9.5：1 | |
| Cooling Method | Air-Cooled | |
| Max. Power (kW) / (rpm) | 7.5Kw/8000 | |
| Max. Torque (N·m) / (rpm) | 10.5Kw/5000 | |
| Max. Horsepower (PS) / (rpm) | 9.79PS/8000 | |
| Energy Type | Gasoline | |
| Fuel Grade | 92# | |
| Emission Standards | National Standard Ⅳ/ Euro 5+ |
| Power Transmission | 4 | |
| Clutch | Wet Dual-Clutch Transmission (DCT) | |
| Transmission Method | Chain Drive |
