BOXER 200 Street MOTORCYCLE

Built Tough. Works Hard. Ready for Africa.

SUPPORT OEM & ODM

BOXER 200 Street Motorcycles For Global Dealer.

Designed for the African market, this Boxer-style 200cc utility motorcycle is built as a practical working bike rather than a simple commuter. Powered by a reliable CBF200 engine and equipped with a large 12L fuel tank, full LED lighting, heavy-duty rear and side racks, and durable spring-type suspension, it is suitable for commercial transport, rural mobility, farming use, passenger carrying, and cargo delivery across demanding road conditions. EFI with Euro 5 certificate is available, and carburetor version can also be offered as an optional configuration for different market requirements.

Not for Retail Sale

Wholesale Only

Overview Features Specs Gallery
Get a Quote

Why Choose BOXER 200

Built Tough. Works Hard. Ready for Africa.

BOXER 200 | Kamax Motorcycle

Factory Direct Wholesale

Made in Chongqing，China

Support OEM & ODM

MOQ: 1 Container (105 Units)

  • CBF200 engine with EFI, Euro 5 certificate available
  • Carburetor version available as an option
  • LCD speedometer with mechanical tachometer
  • Electric start and kick start for reliable ignition
  • Full LED lighting system for better visibility
  • Front disc and rear drum brake with front single-channel ABS
  • Fully enclosed chain guard for better protection and durability
  • Durable steel rear carrier and side racks for practical loading
  • Durable steel rear footrests
  • Front and rear license plate brackets included
Get a Quote

View the Specs

24+ Years Experince in Motorcycle

More about KAMAX

Customer Case Globally

Explore More

All Motorcycle Models

Explore More

BOXER Features

  • BOXER 200 | Kamax Motorcycle

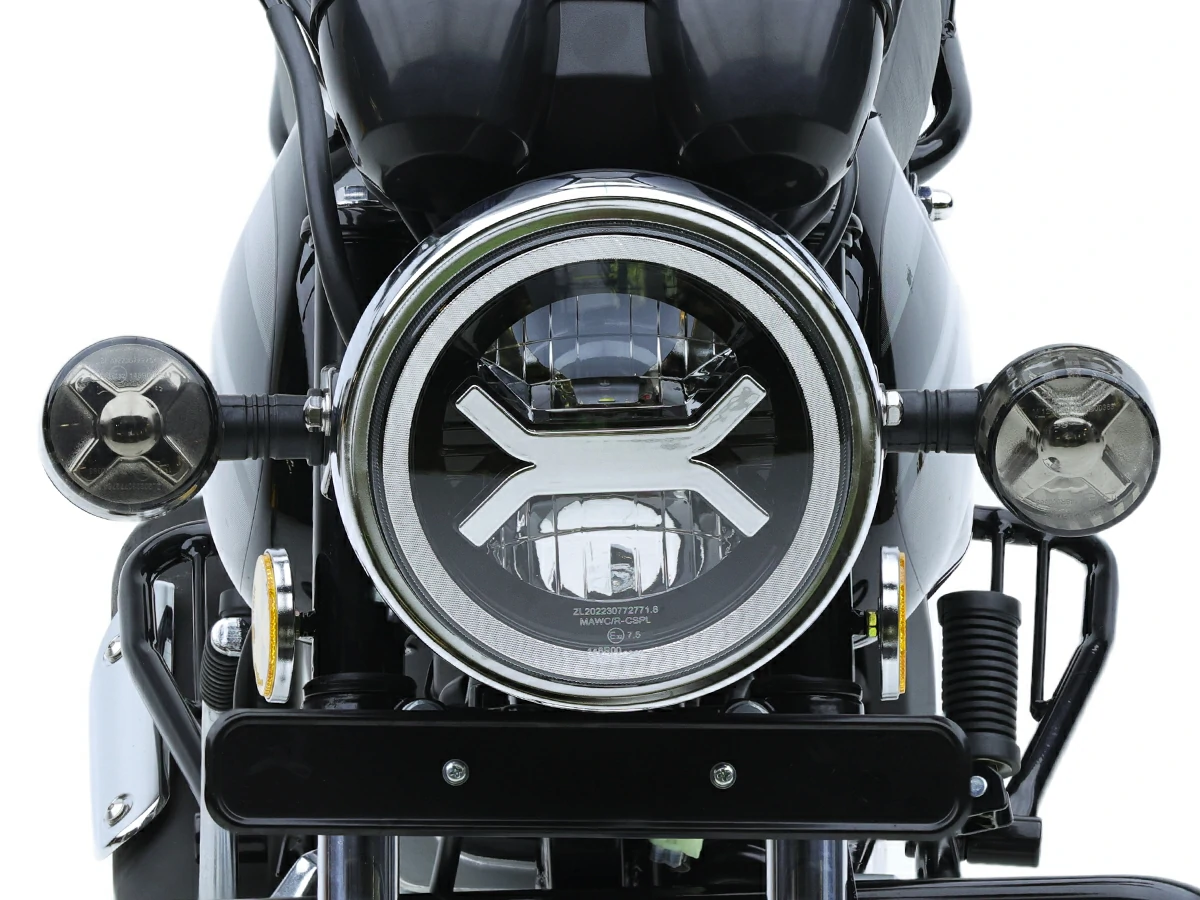

    Full LED lighting system

    BOXER 200 | Kamax Motorcycle

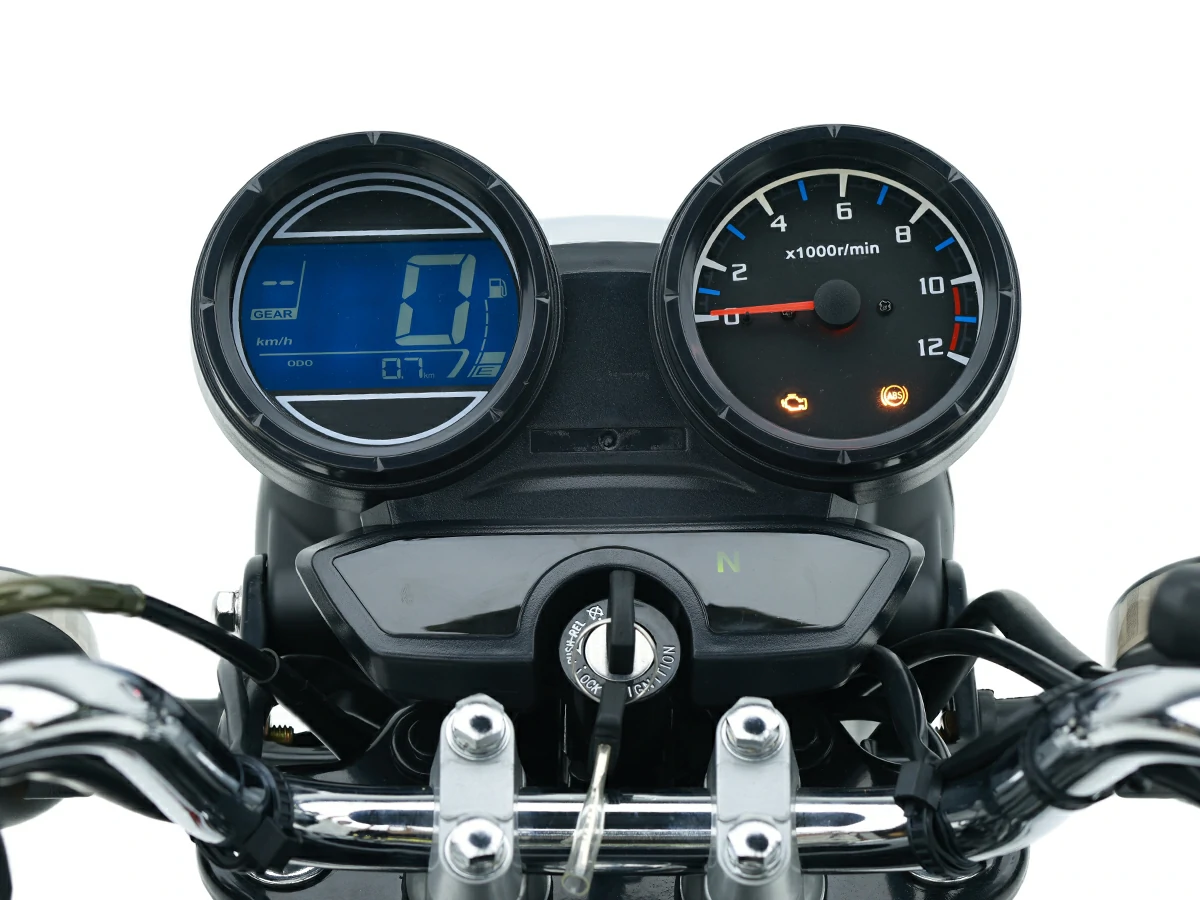

    LCD speedometer with mechanical tachometer

    BOXER 200 | Kamax Motorcycle

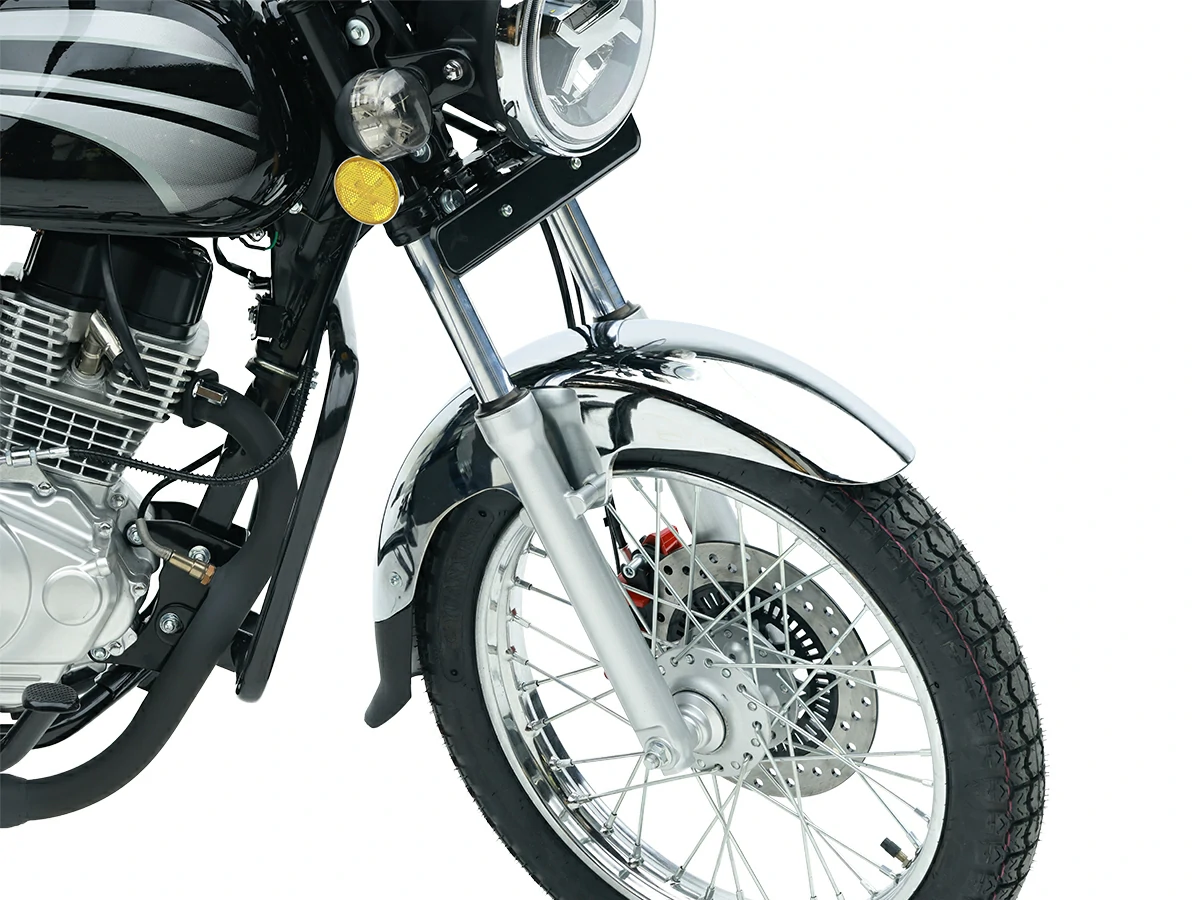

    Spring-type front shock absorbers

    BOXER 200 | Kamax Motorcycle

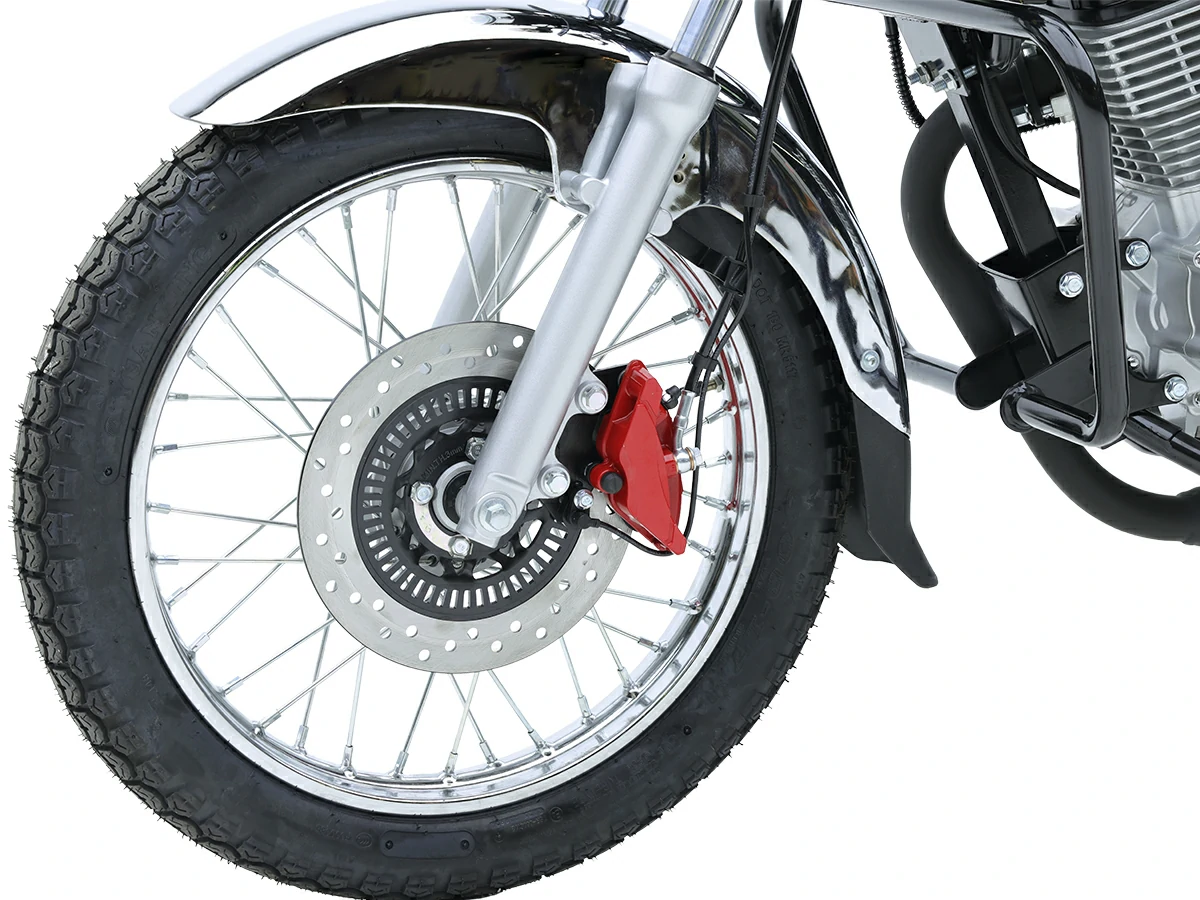

    Front disc and rear drum brake

     with front single-channel ABS

  • BOXER 200 | Kamax Motorcycle

    CBF200 engine, EFI, Euro 5 certificate available

    Carburetor version optional

    BOXER 200 | Kamax Motorcycle

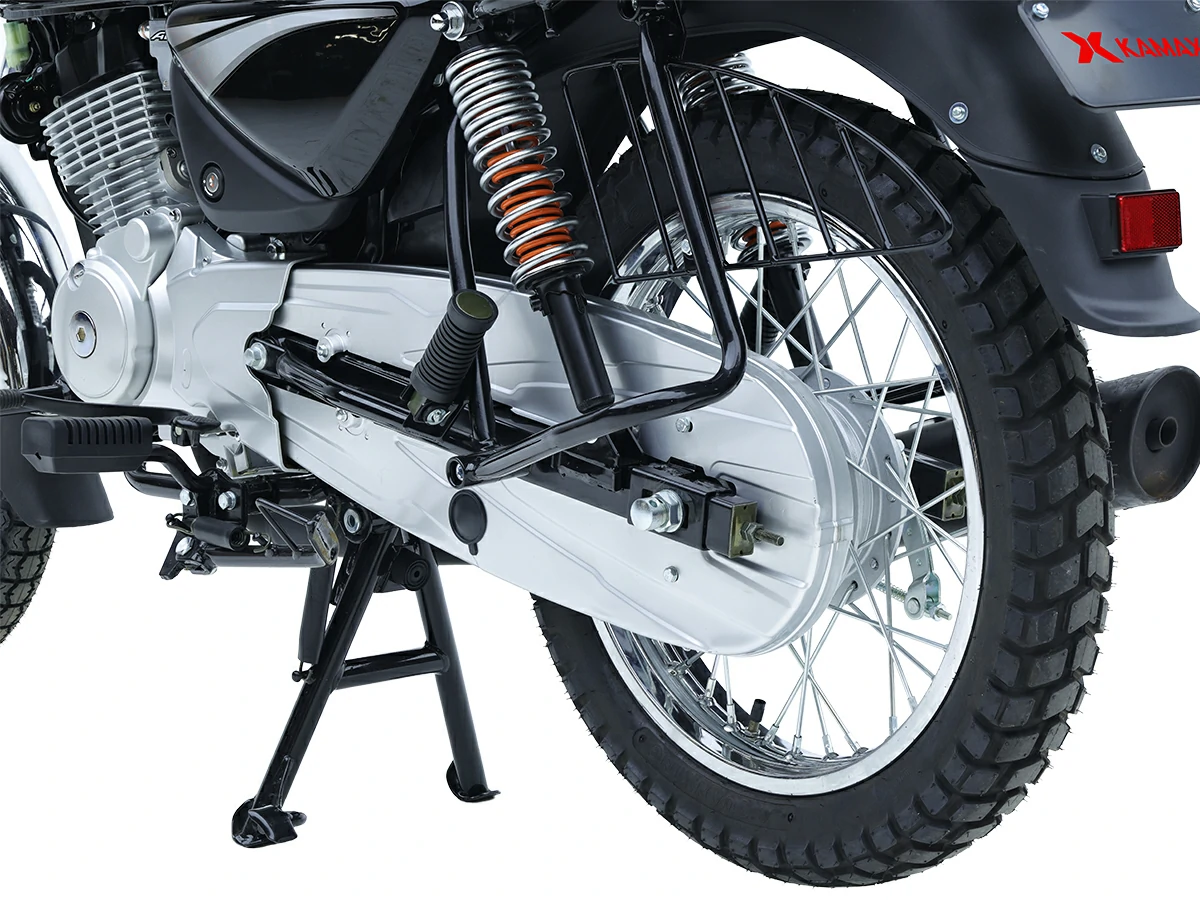

    Fully enclosed chain guard

    BOXER 200 | Kamax Motorcycle

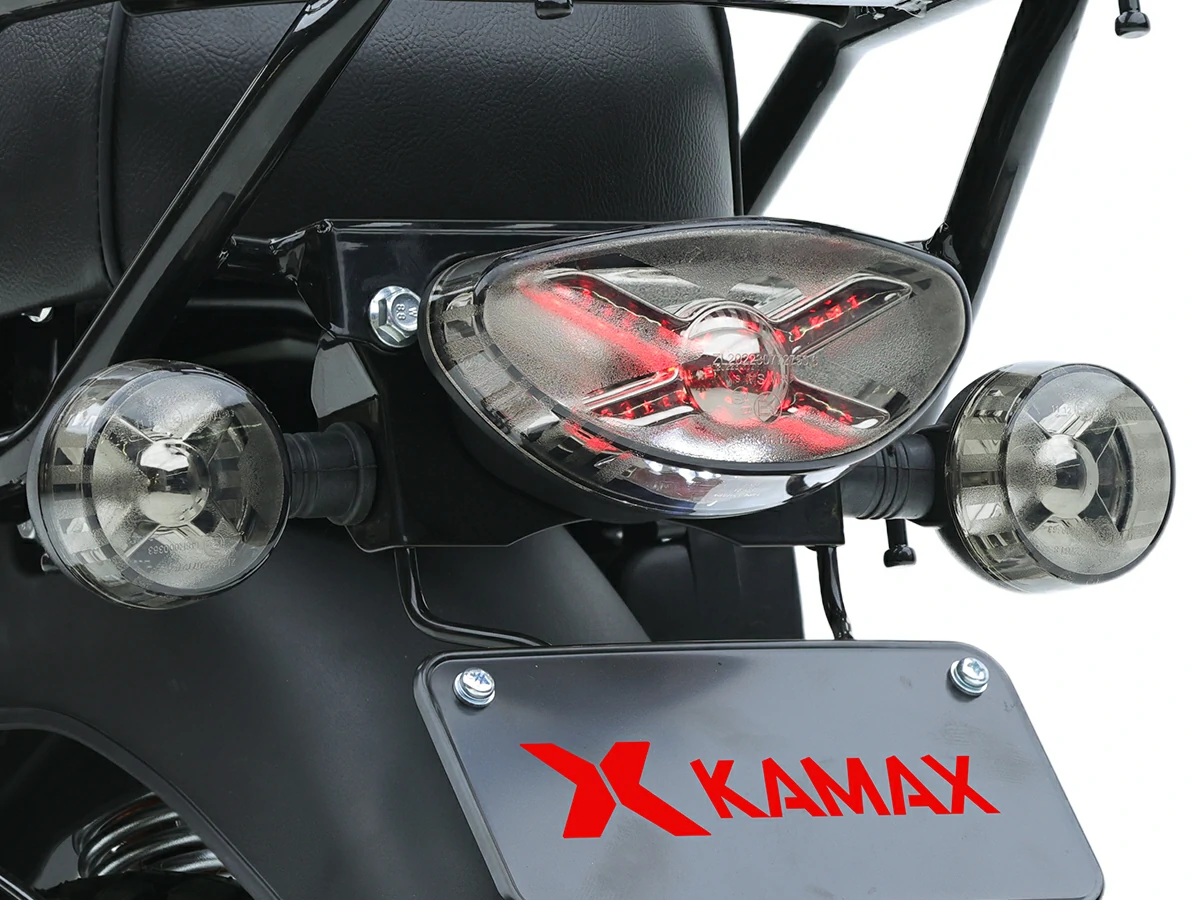

    LED tail light

    BOXER 200 | Kamax Motorcycle

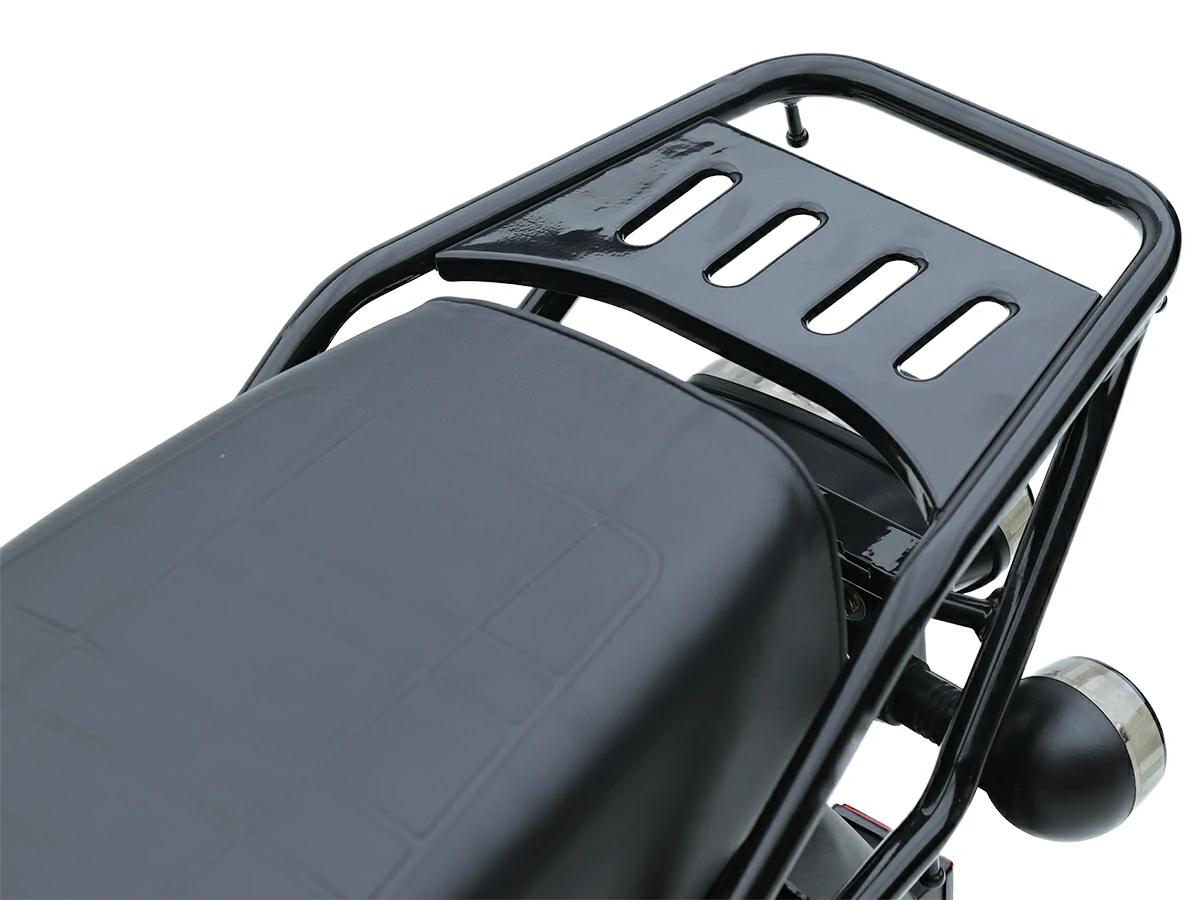

    Steel rear carrier

  • BOXER 200 | Kamax Motorcycle

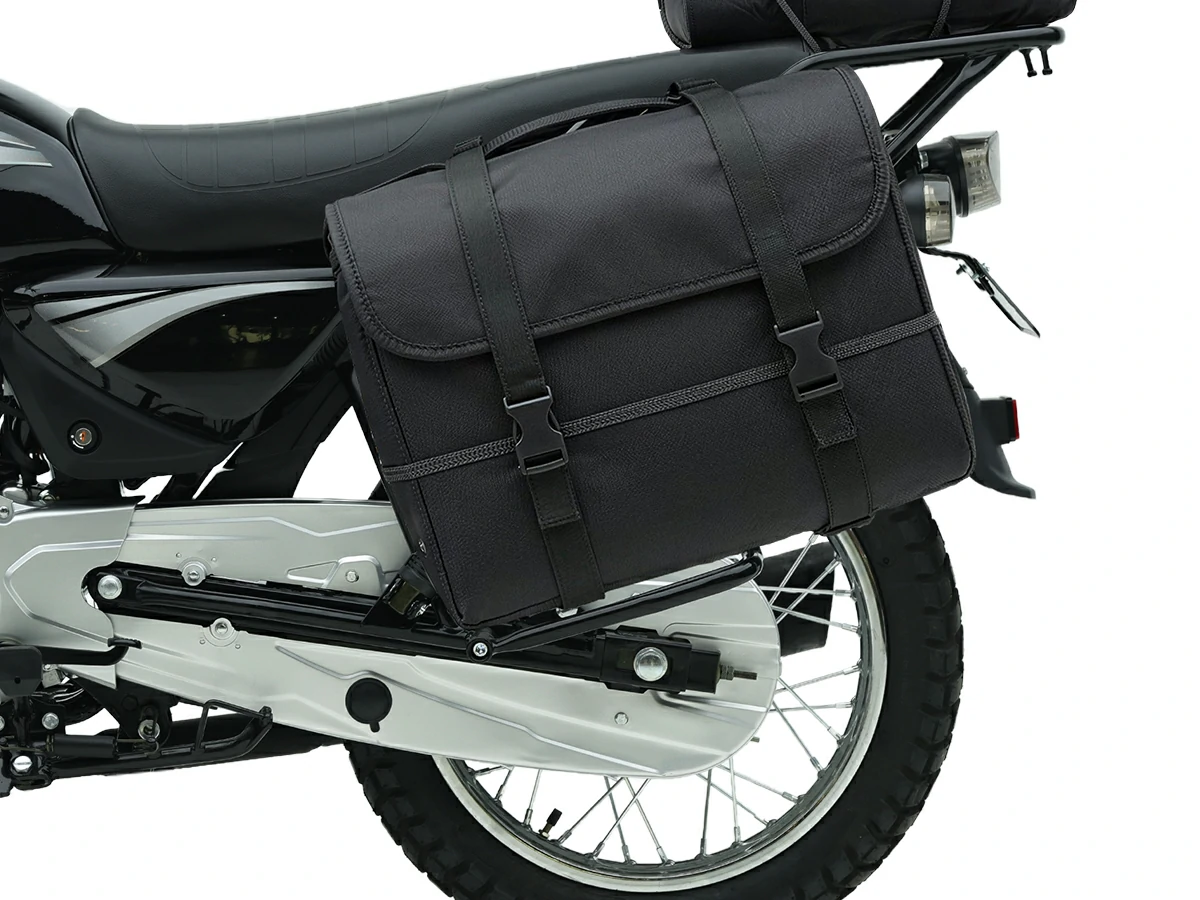

    Durable side racks for extra carrying capacity

    BOXER 200 | Kamax Motorcycle

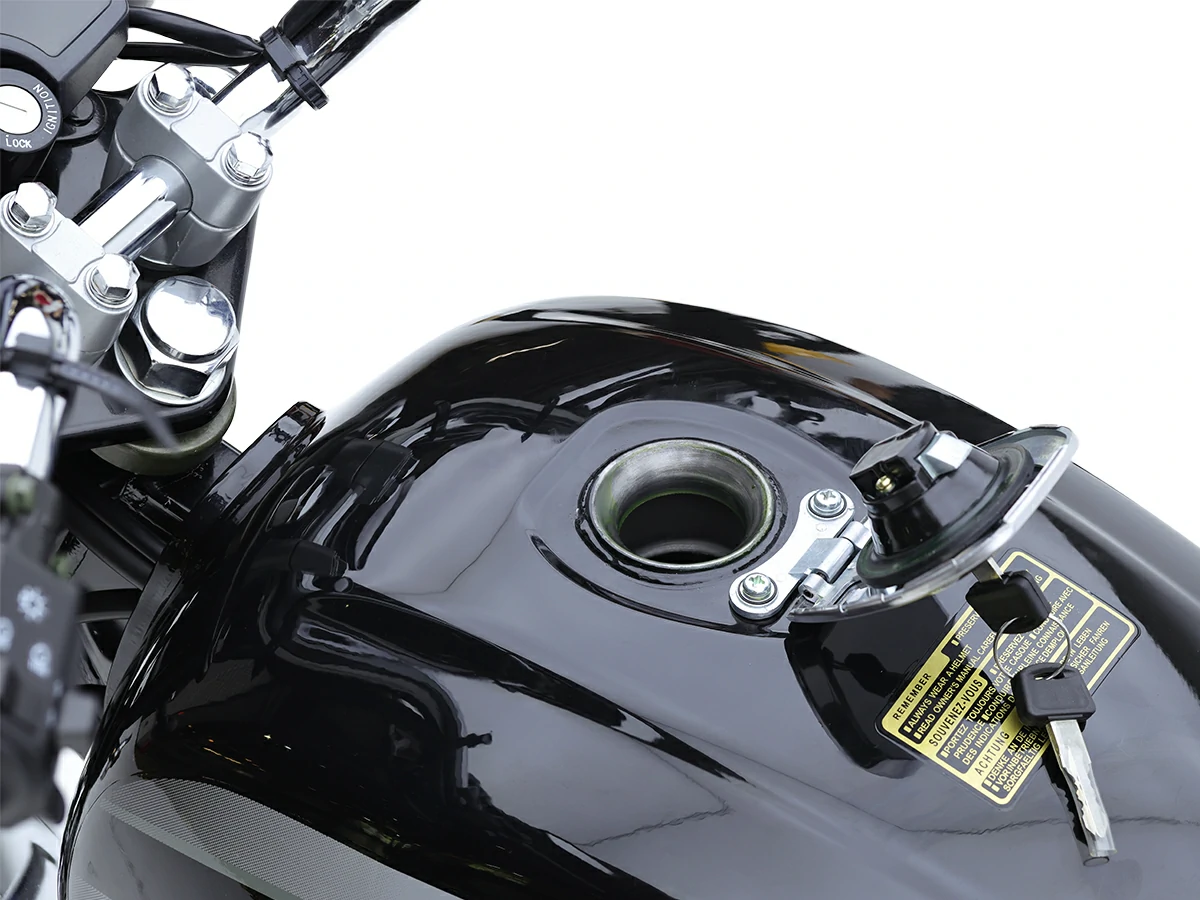

    Large 12L fuel tank for longer rides

BOXER 200 Spec

Model Name：BOXER 200Category：Street Motorcycles
Color Options: /Container Loading (40HQ)：105 Sets /40HQ SKD,175 Sets /40HQ CKD
Dimensions(L × W × H)： 2010 × 820 × 1270 mmWheelbase：1315 mm
Seat Height：/Min Ground Clearance：220mm
Net Weight：120 kgMax Load： 150 kg
Maximum Speed： 90 km/hFuel Consumption 100KM: ≤2.8L
Fuel Tank Capacity： 12LSuspension/Front：Hydraulic damping shock absorber
Suspension/Rear：Spring-type shock absorbers with inner and outer dual springsBrake/Front： DISK
Brake/Rear： DRUMTires/Front： 3.00-17
Tires/Rear： 100/90-17Battery： 12V/6.5A.h
Engine Mode: CBF200Displacement(mL): 194.9 ml
Engine Type： single-cylinder, 4-stroke, air-cooled, inclined engine, overhead camshaftMax.Power：10.2 kW / 8000 r/min
Compression Ratio： 9.1:1Max.Torque ：15.5 N·m / 5500 r/min
Bore and Stroke(mm×mm)： 65.5 × 57.8 mmIgnition method：Storage Capacitor
Ignition method: CDIMin.Fuel Consumption(g/Kw.h): ≤354
Lubrication method: Combined pressure and splash lubricationStarting method: Electric/Kick
Clutch method: Multi-plate wet clutchTransmission System: 5-speed, chain drive
Gasoline Grade: Unleaded gasoline, RON 92 or above
