UD110 underbone Motorcycle

Global-ready. Dealer-friendly. City-proven.

SUPPORT OEM & ODM

UD110 Motorcycles For Global Dealer.

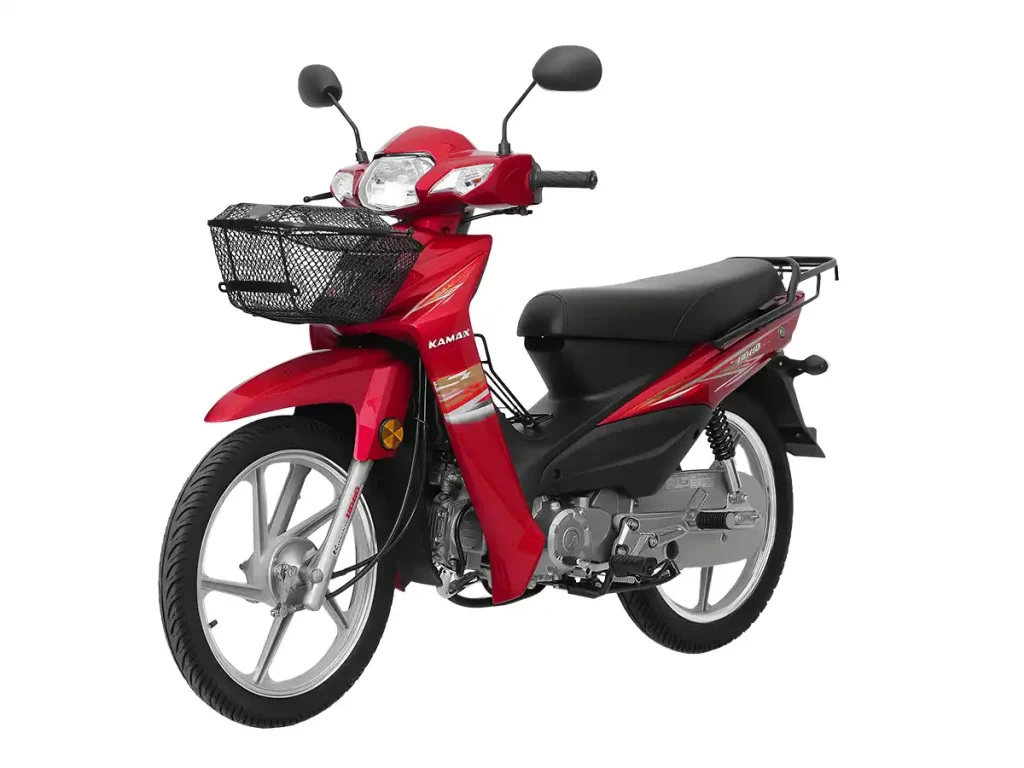

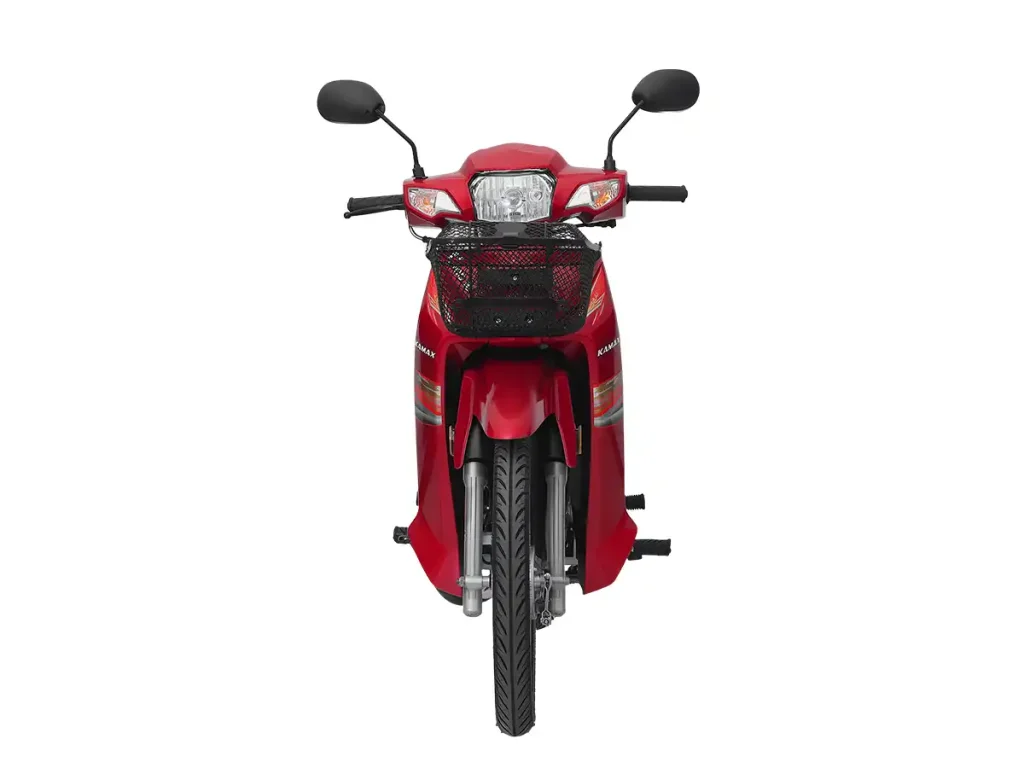

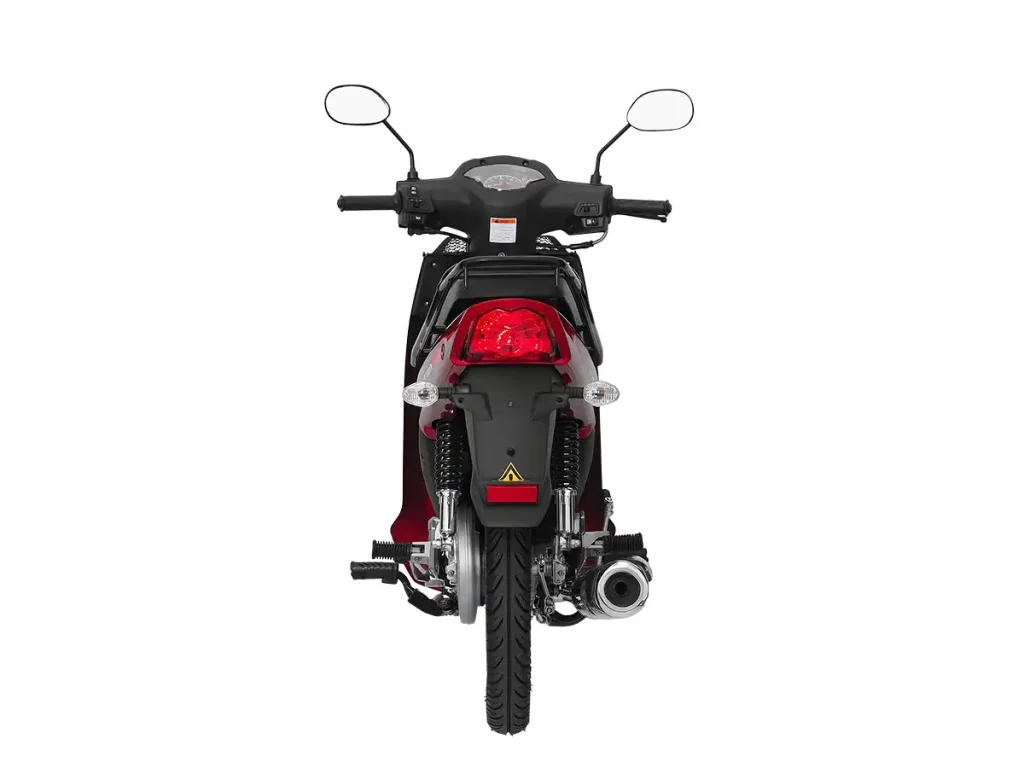

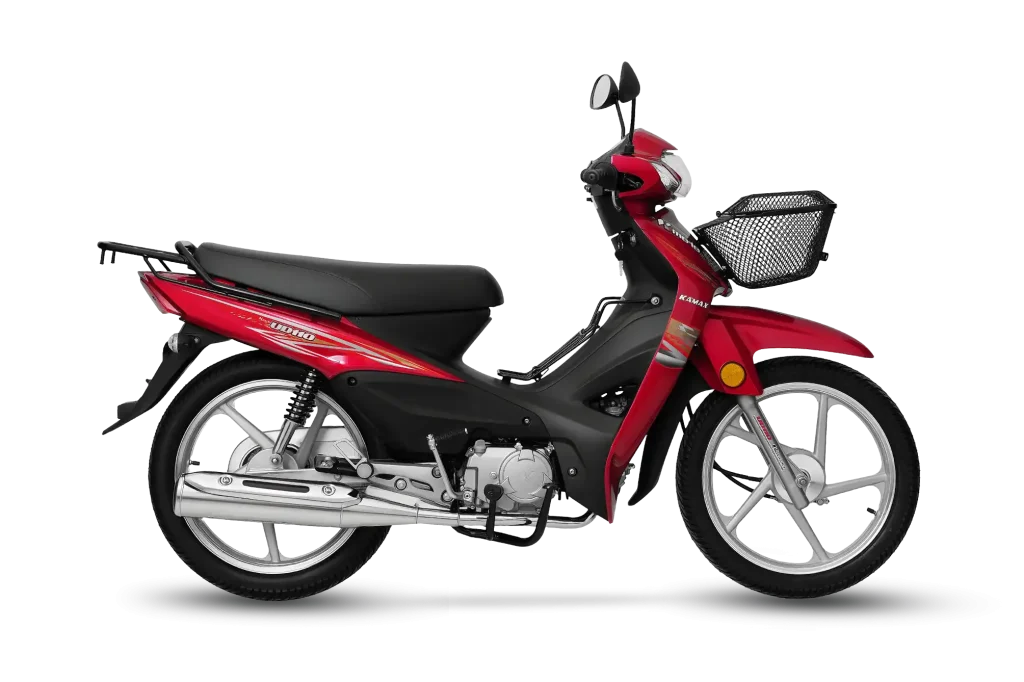

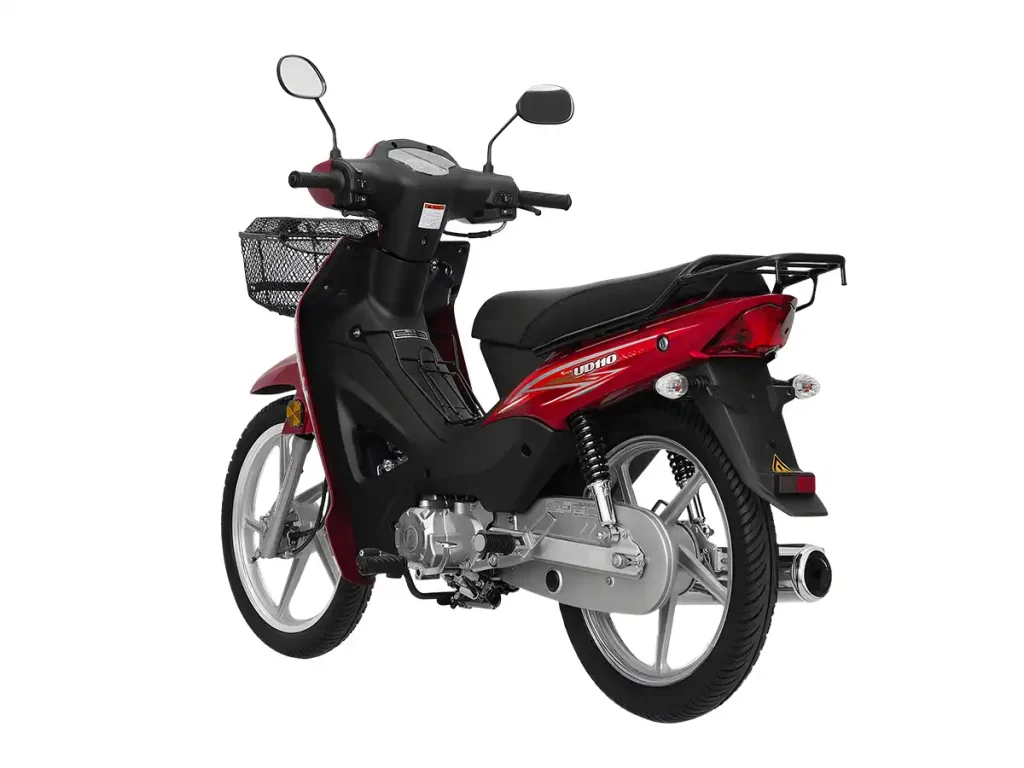

UD110 is a cost-effective 110cc commuter motorcycle designed for global markets.
Equipped with a reliable WANGJIANG SUZUKI engine, low fuel consumption, and a durable steel frame, it is an ideal solution for daily transportation, commercial use, and large-scale distribution.

Not for Retail Sale

Wholesale Only

Overview Features Specs Gallery
Get a Quote

Why Choose UD110 Motorcycle

Built to Perform. Designed to Last.

UD110 Commuter Motorcycle

Factory Direct Wholesale

Made in Chongqing，China

Support OEM & ODM

MOQ: 1 Container (126 Units)

  • Reliable 110cc Engine by WANGJIANG SUZUKI (HAOJUE)
  • Ultra-Low Fuel Consumption,≤ 1.3L per 100km
  • Single-Cylinder Air-Cooled Design for Harsh Conditions
  • Manual Wet Multi-Plate Clutch with 4-Speed Gearbox
  • Lightweight but Strong Steel Frame
  • Drum Brake System，Low Cost & Easy Maintenance
  • Electric & Kick Start for Market Flexibility
  • Alloy Wheels with 17” Tires
Get a Quote

View the Specs

24+ Years Experince in Motorcycle

More about KAMAX

Customer Case Globally

Explore More

All Motorcycle Models

Explore More

UD110 Spec

Model Name：UD110Category：Commuter Motorcycles
Color Options: /Container Loading (40HQ)： CBU126/CKD195
Dimensions(L × W × H)： 1905 × 690 × 1090 mmWheelbase：1205 mm
Seat Height：780 mmMin Ground Clearance：128 mm
Net Weight：99 kgMax Load： 150 kg
Maximum Speed： 78 km/hClimbing Ability： ≥ 18°
Fuel Tank Capacity： 3.5LFuel Type： Unleaded gasoline
Fuel Consumption： 1.3 L / 100 kmBattery： 12V 5Ah
Brake/Front: DRUM 110MMBrake/Rear: DRUM 110MM
Tires/Front：2.50-17Tires/Rear: 2.75-17
Wheel base/Front: 17inchWheel base/Rear: 17inch
Battery: 12V5Ah Gel Battery 12 MONTH LEFT FREECARGADOR: USB-2A
Chain: 428HGFrame: Q195 steel
Model: 152FMH-DMax Power: 5.3/7500 (kW/rpm)
Manufacturer: WANGJIANG SUZUKI（HAOJUE）Max Torque: 8.0/5500 (N.m/rpm)
Engine Type: Single cylinder,4-stroke,air-coolingCompression Ratio: 9.1：1
Displacement: 106.7 cc Bore × Stroke: 52.4 × 49.5 mm
Starting System: Electric/Kick startIgnition System: Storage Capacitor
Gearbox: 4-speed rotary with top-gear protectionLubrication System: Pressure and Splash
Net Weight: 23.2kgClutch Type: Manual Wet Multi-Plate
Gearshift Method: Constant mesh,4-speed GearshiftMinimum Fuel Consumption Rate: ≤ 354 g/kW·h
Main Advanced Feathure: Chain Transmission,Unitary Cylinder Head,Roller valve rocker,Light-Weighting Piston
