Engine Type
125CC, Single Cylinder, 4-stroke Air-cooled, EFI(BOSCH)
Transmission
4-speed semi-automatic
Front Suspension
26mm telescopic fork; 3.5-inch travel
Rear Suspension
Twin shocks; 3.6-inch travel
Starting Method
Keyless Start
Certification
EEC & EPA

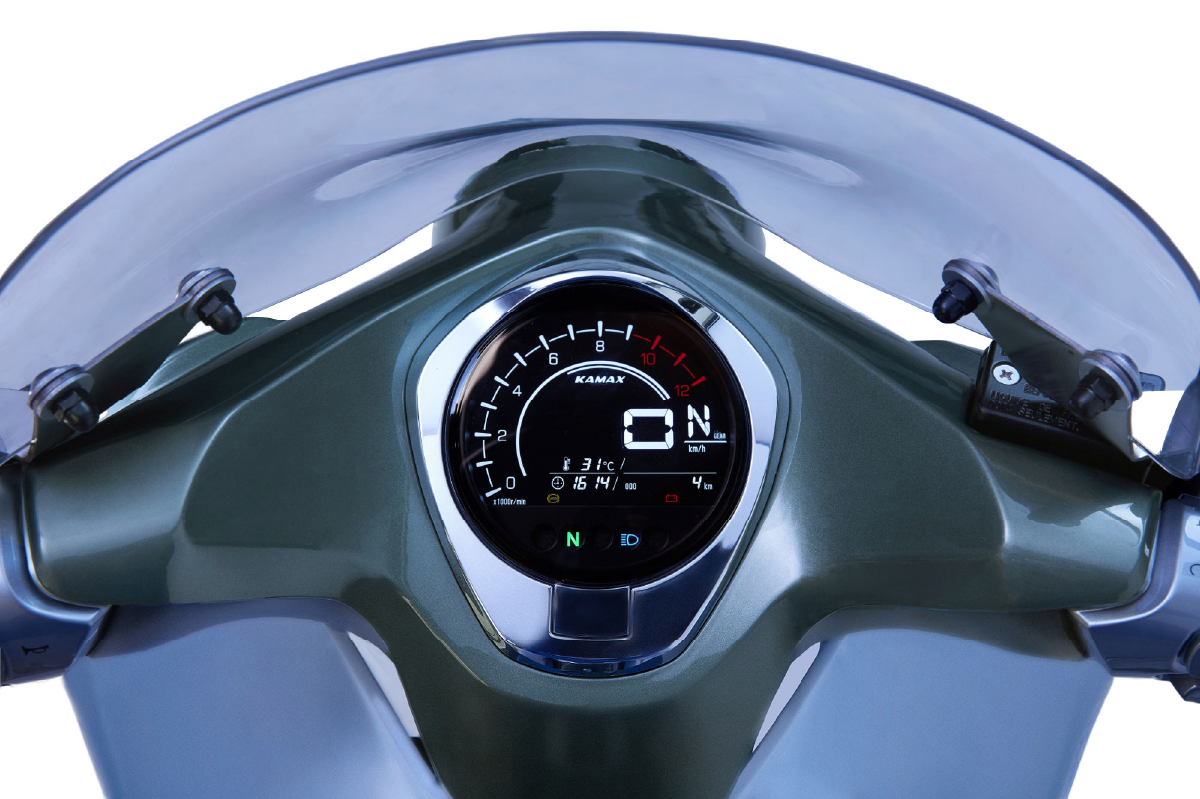

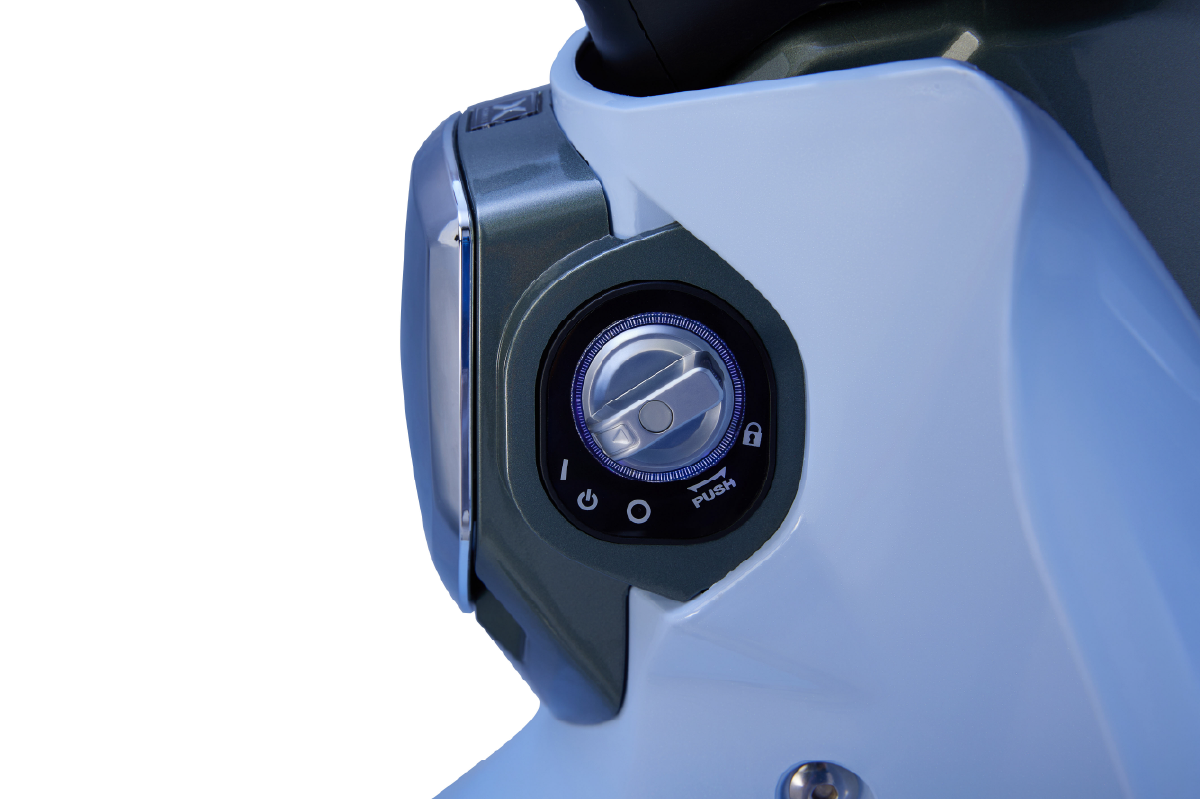

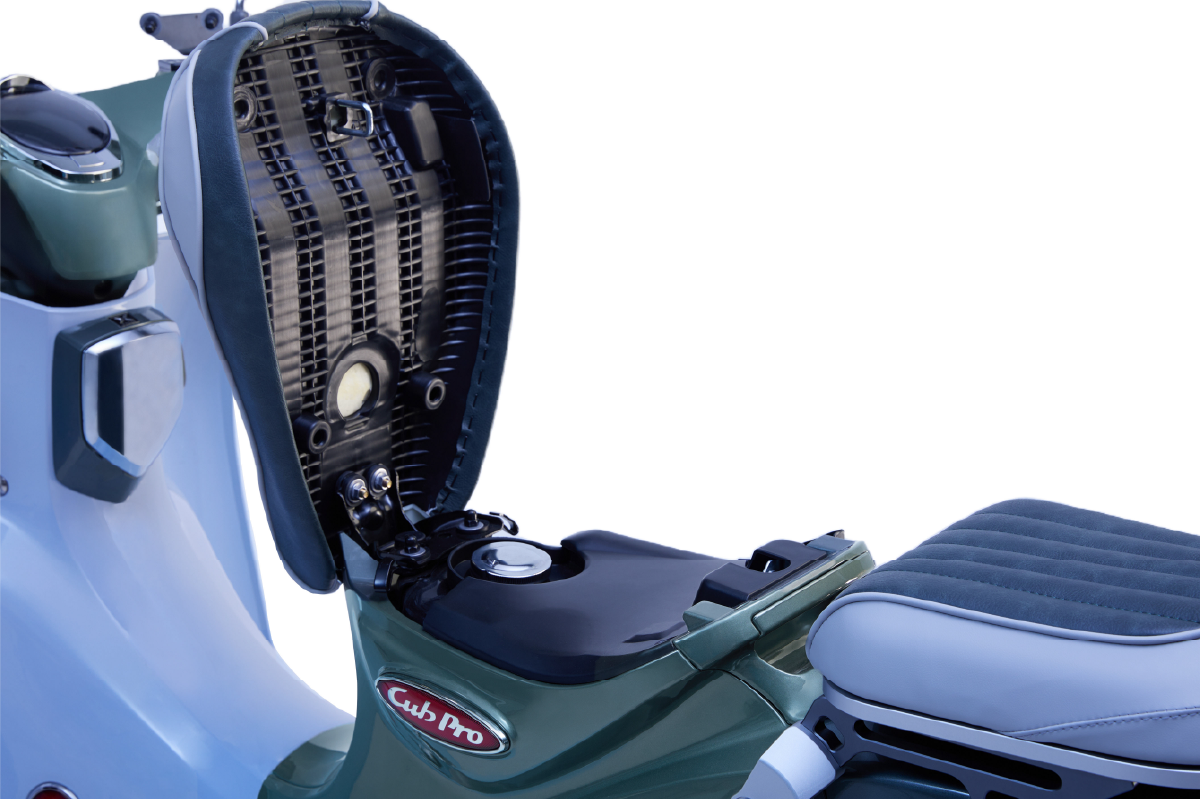

SMART Key. All-LED Lighting.Multi-function digital instruments.Electric seat opener. Easy to park. Standard ABS. Underseat fuel tank. Even the storage is stylish. Step-through chassis for easy access
Despiteits compact size, it delivers exceptional performance andreliability.
Maximum horsepower: 8.6 PS /8000 rpm
Maximum power: 6.8 KW /8000 rpm
Maximum torque: 10.0N·m /6000 rpm
Cub Pro’s front-wheel Anti-Lock Braking System (ABS) is a bighelp when it comes to making controlled stops in less-than-ideal conditions, such as wet pavement or othercompromised surfaces.

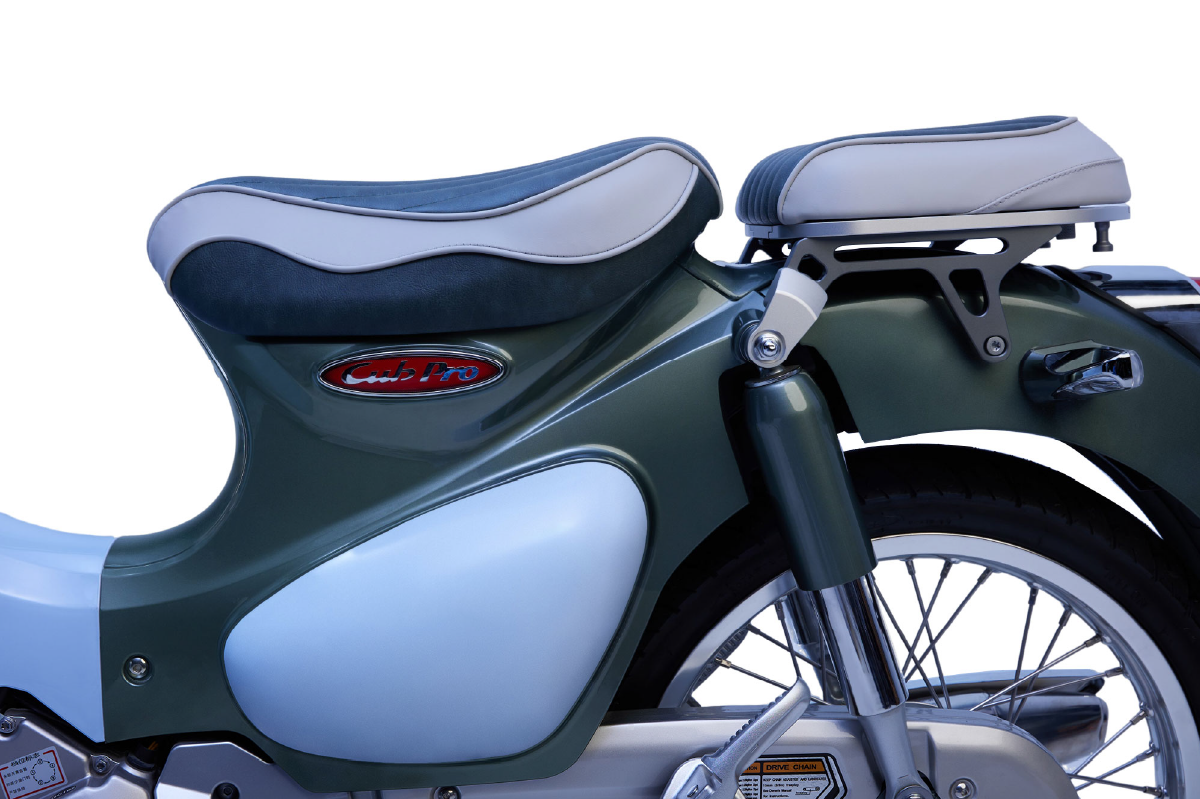

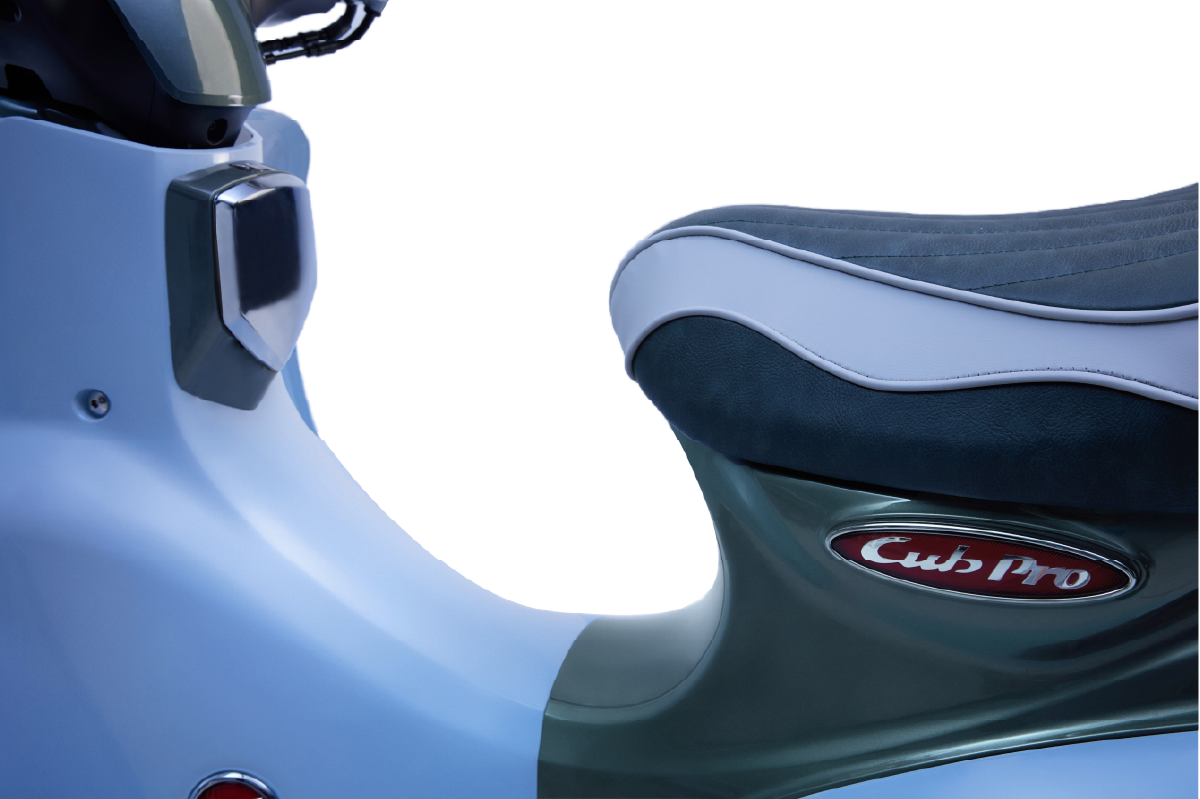

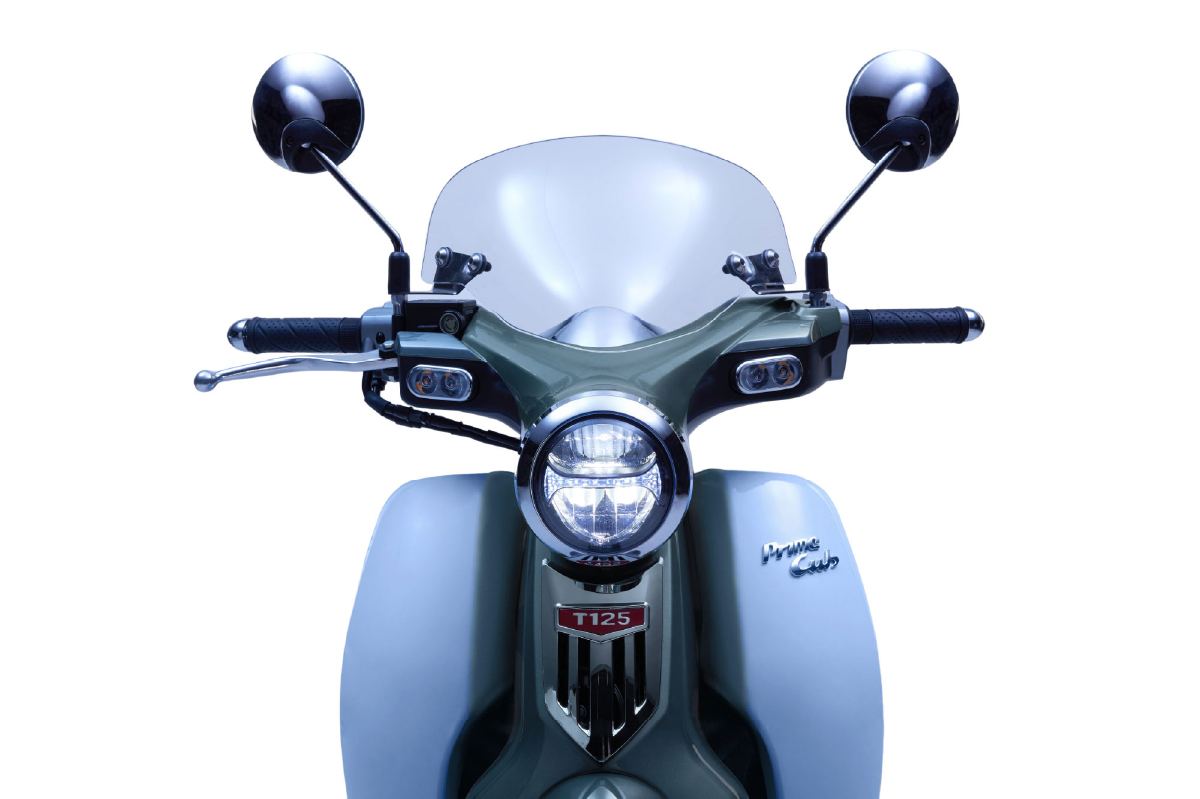

One reason for the Kamax Cub’s popularity is the stepthrough design.The round headlight appears retro but uses modern LED technology to provide excellent illuminationand visibility.
| Engine Type | Single-cy|inder, four-stroke, air-cooled, electronic fuel injection (Bosch) |
| Bore And Stroke | 52.4mm x 57.8mm |
| Compression Ratio | 9.56:1 |
| Maximum torque and corresponding speed | 10.0N·m /6000 rpm |
| Maximum horsepower | 8.6 PS /8000 rpm |
| Maximum power | 6.8 KW /8000 rpm |
| Fuel consumption rate | 68.8 km/L(with 2 riders)/70 km/L (with 1 rider) |
| Transmission | Four-speed semi-automatic |

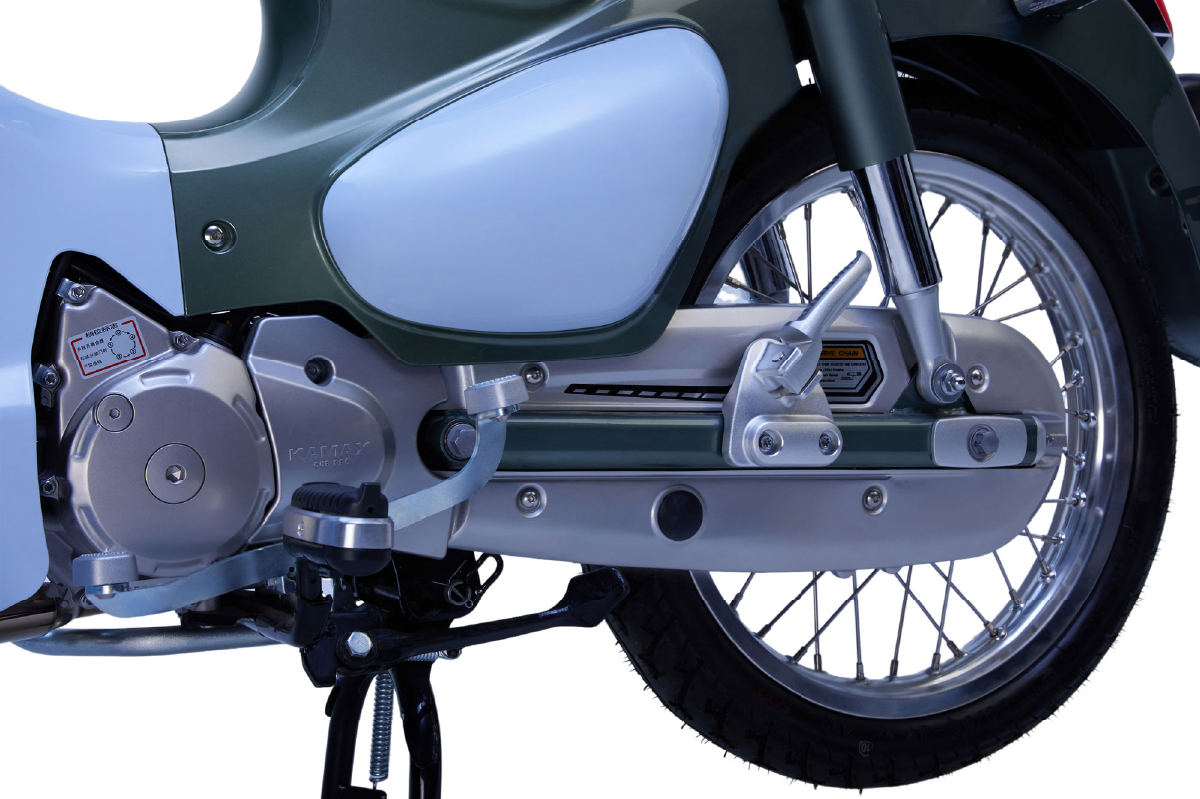

| Final Drive | #428 Chain; 14T/38T |
| Clutch | Multi-Plate Oil-immersed Clutch |
| Front Suspension | 26mm hydraulic telescopic front shock absorbers, 3.5 inches of travel, 26 chrome plated fork, bottom tube diameter 40 |
| Rear Suspension | Dual cylinder shock absorbers,with 3.6 inches of travel |
| Front Brake | 220mm hydraulic disc(with/without ABS) |

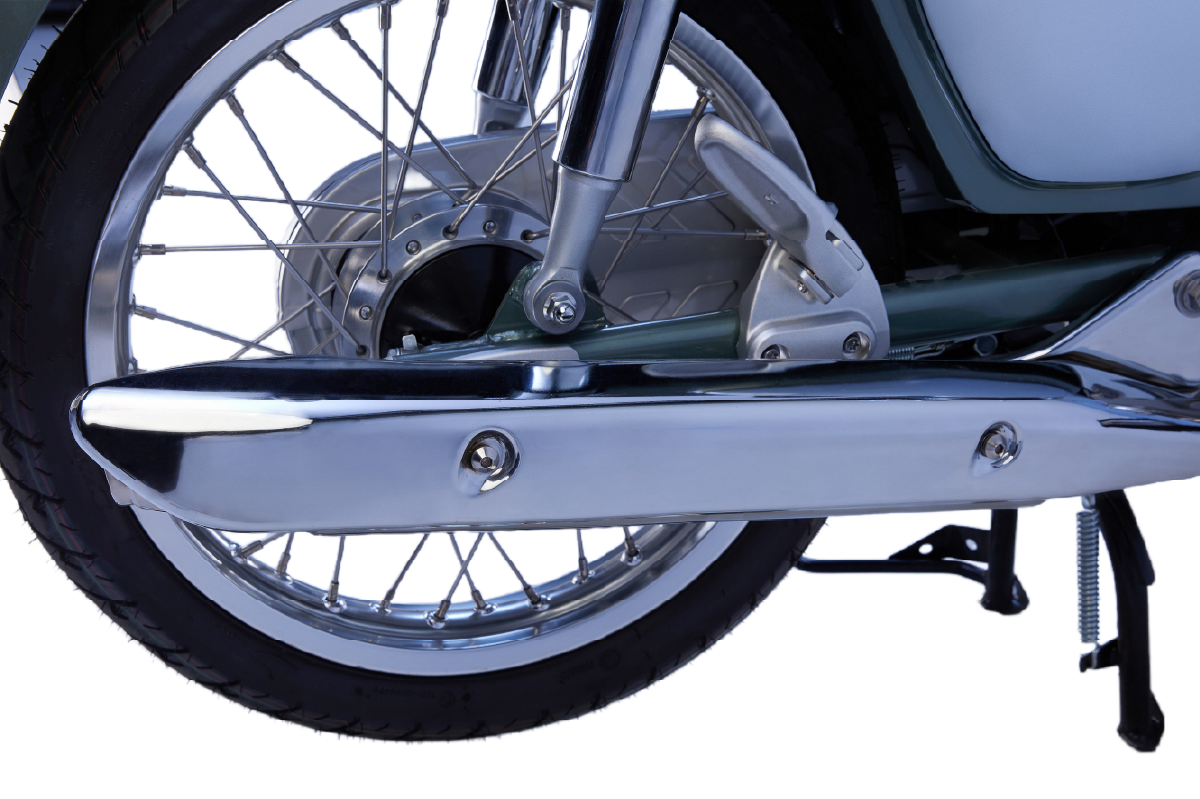

| Rear Brake | Drum brake |
| Front Tire | 80/90-17 |
| Rear Tire | 90/90-17 |
| Dimensions(L*W*H) | 1915mm*720mm*1000mm |
| Wheelbase | 1245mm |
| Seat Height | 760mm |
| Curb Weight | 115kg |
| Fuel Capacity | 3.8L |
| Caster Angle | 26.5 degrees |
| Engine | C50/T125 |

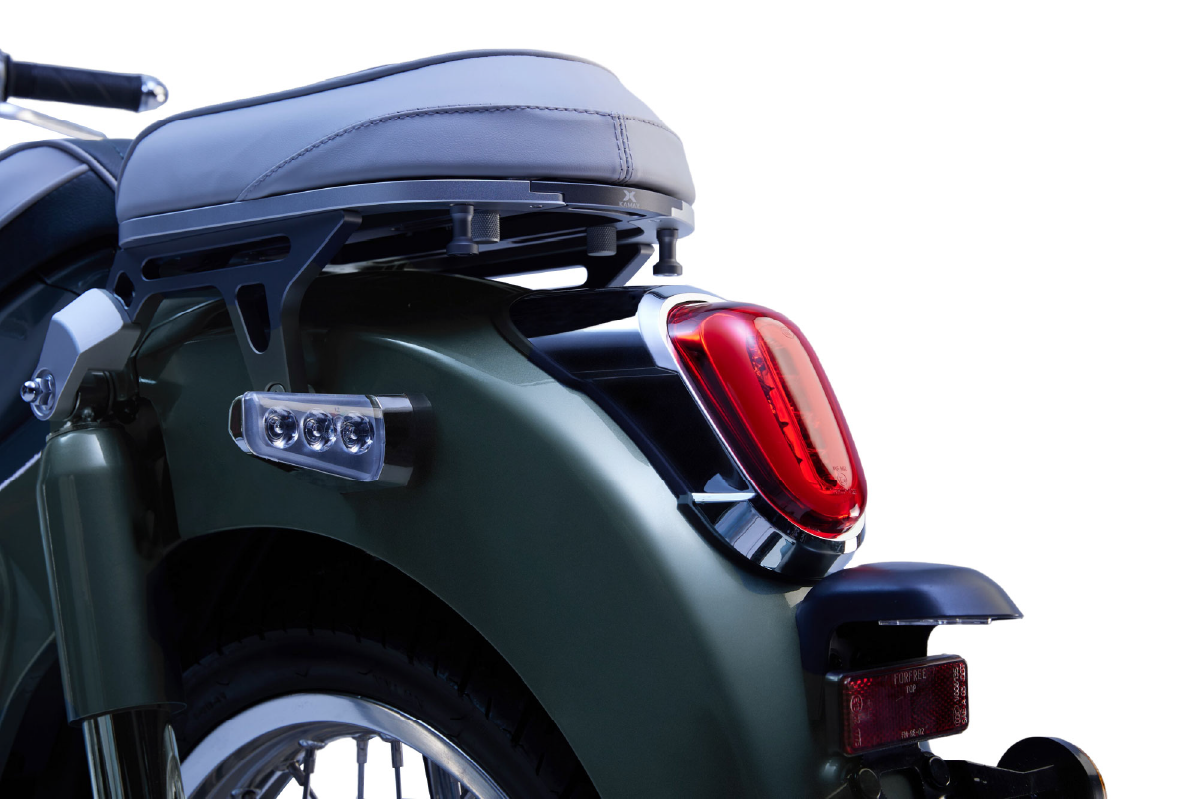

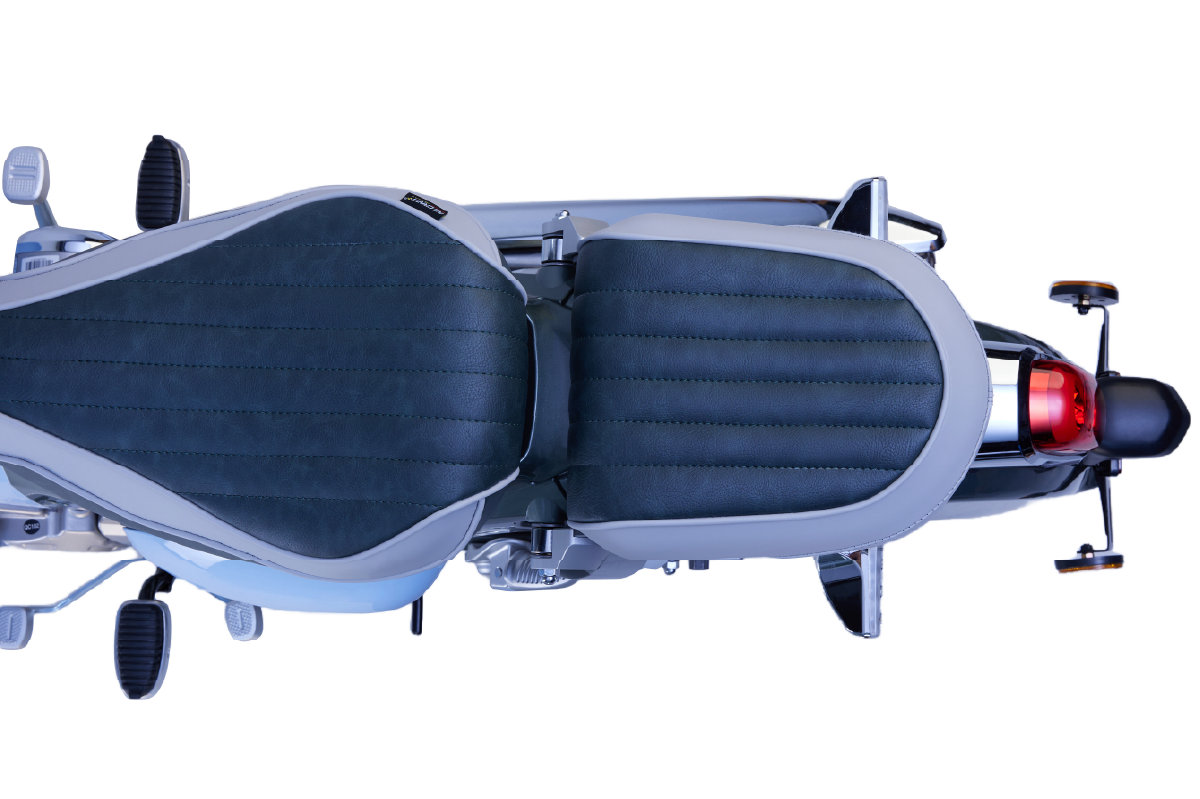

| Rear Seat Panel | CNC aluminum alloy |
| Front and Rear Disc Brakes | ABS/CBS |
| Rim | Mesh wheel/Aluminum wheels |

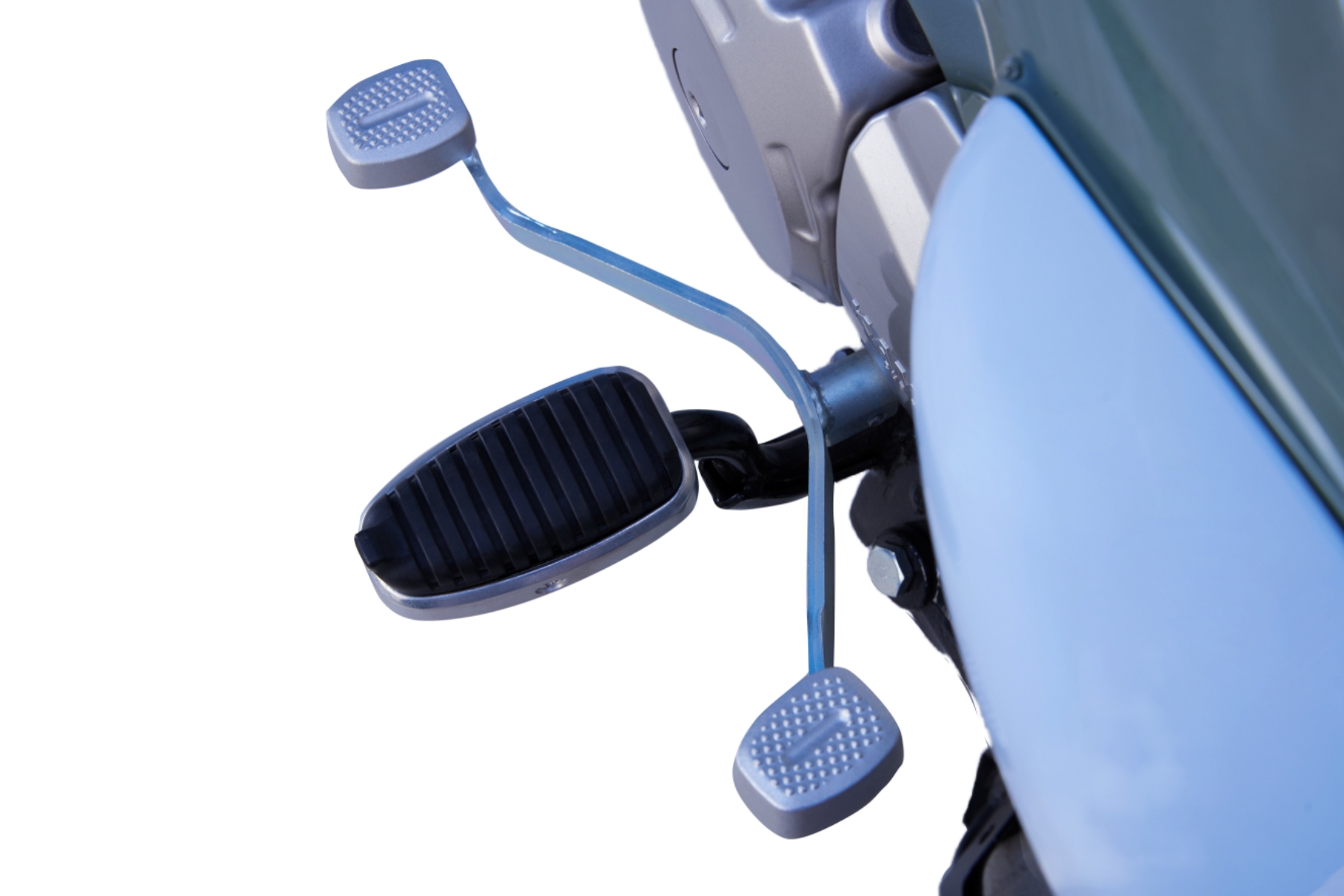

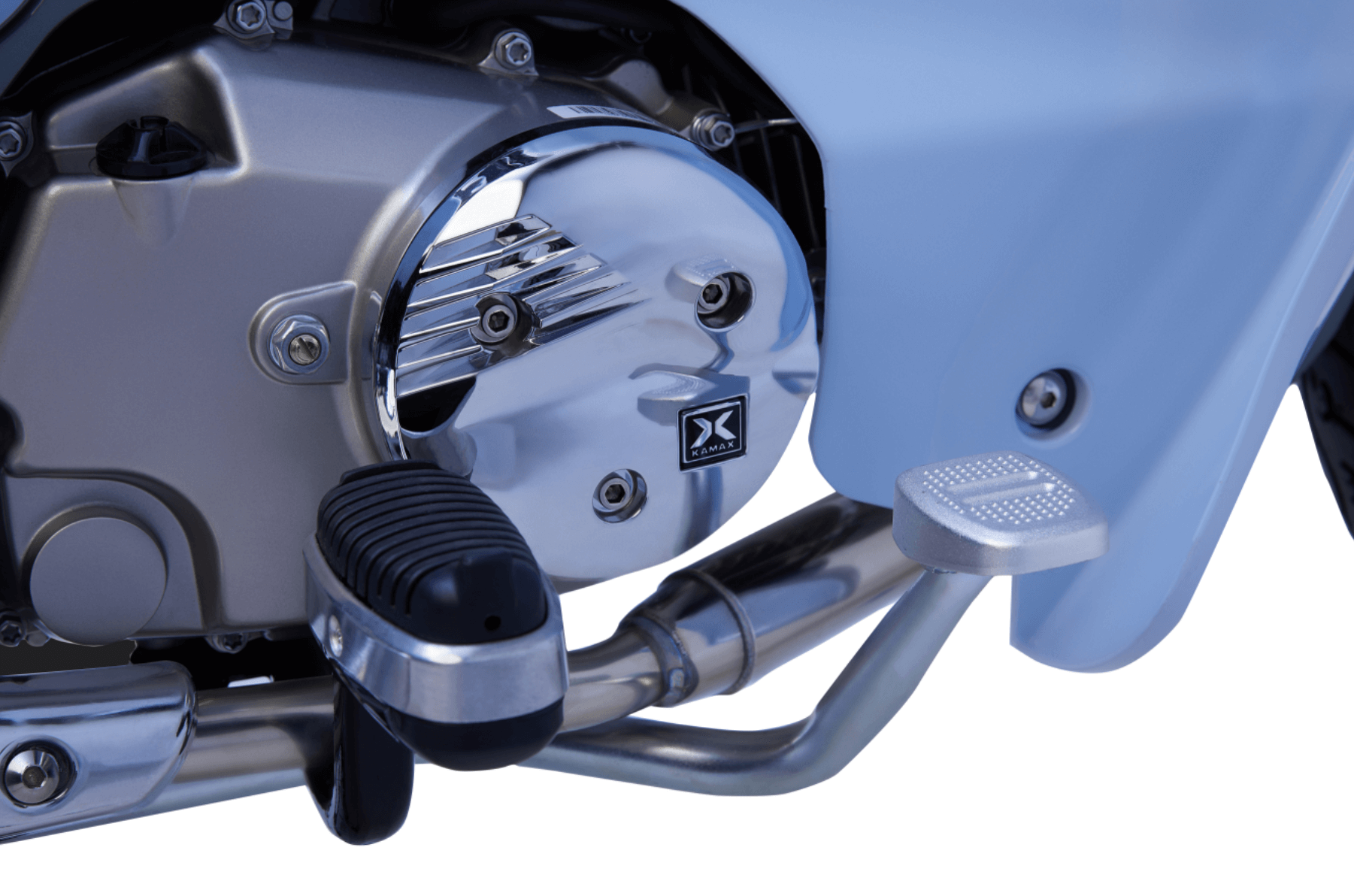

| Back Pedal | Aluminum alloy pedals |
| Windshield | Brown/Transparent |
| Emissions | National Standard Ⅳ/ Euro 5+ |
| Available Colors | Black/Jade Green/Matte Black/Grey/Red/Pink/Landscape Green/Purple |
| Brand | KAMAX |
| Origin | Chongqing, China |
| Factory Direct Sale | Yes |
| Loading Capacity | HQ CKD 210 Units ;HQ SKD 145 Units; HQ, /HQ CBU 36Units |
| Sample Oder | Support |
| OEM/ODM | Support |
| Sole Agent | Support |
