16R

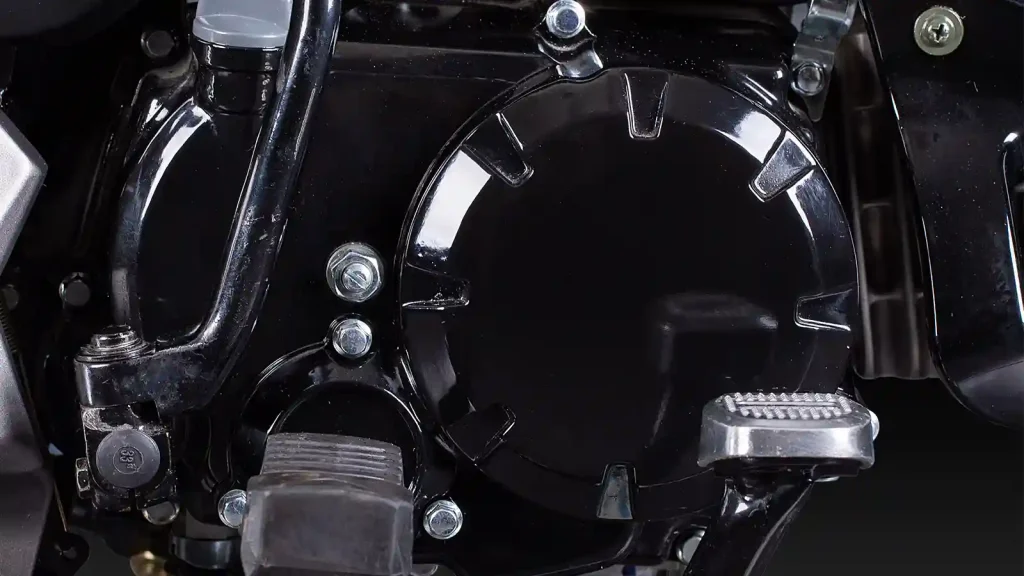

  • Engine: 110cc, 4 stroke, single cylinder, double clutch, air cooled
  • Bore*Stroke: 52.4*49.5mm
  • Max. power: 5.8kw/7500rpm
  • Max. torque: 8.5kw/5500rpm

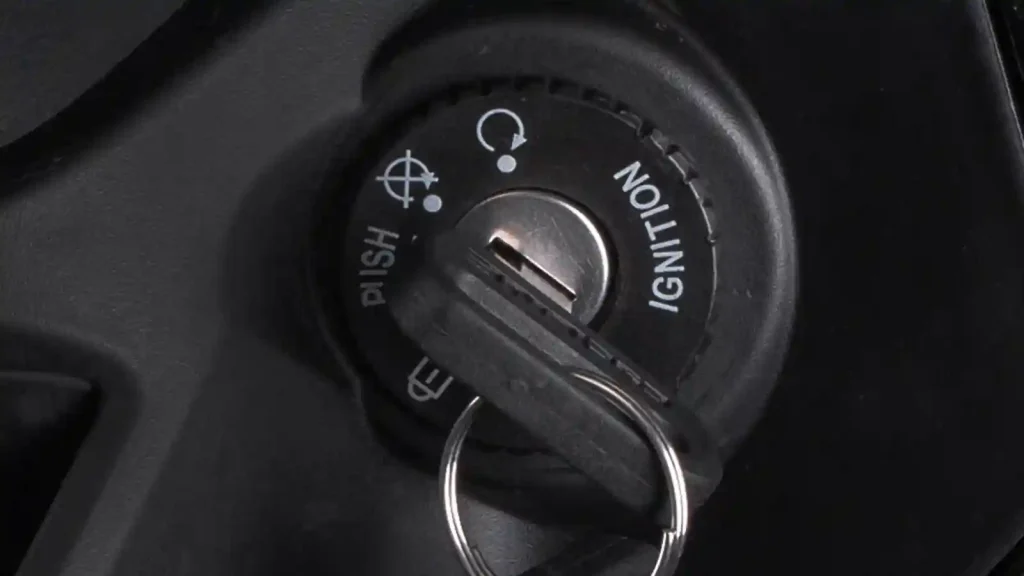

  • Ignition: CDI
  • Starting System: Electric/Kick
  • Gear and Clutch: 4 gears, auto clutch
  • Front suspension: Hydraulic Spring Shock

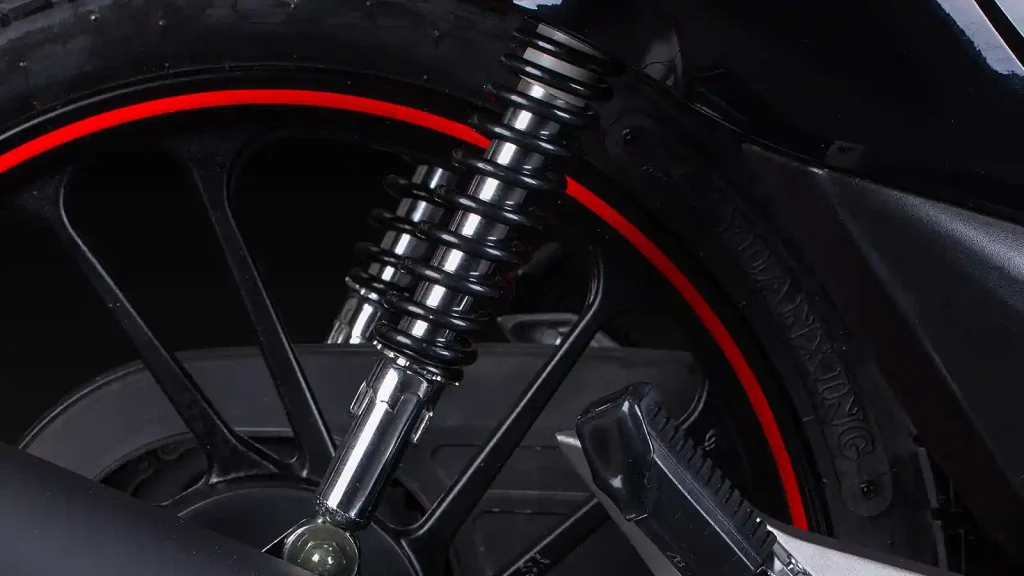

  • Rear shock absorber: Hydraulic Spring Shock

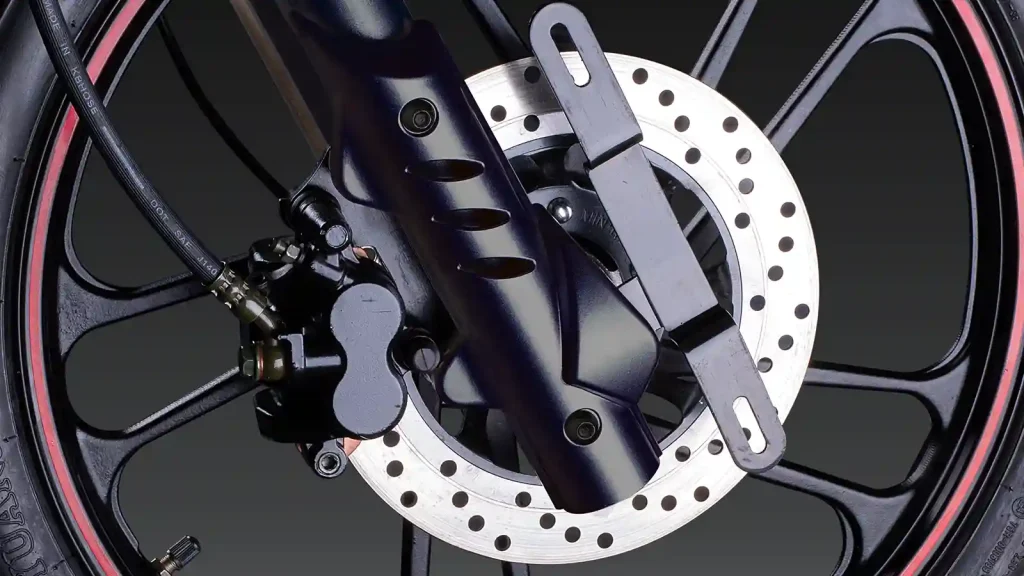

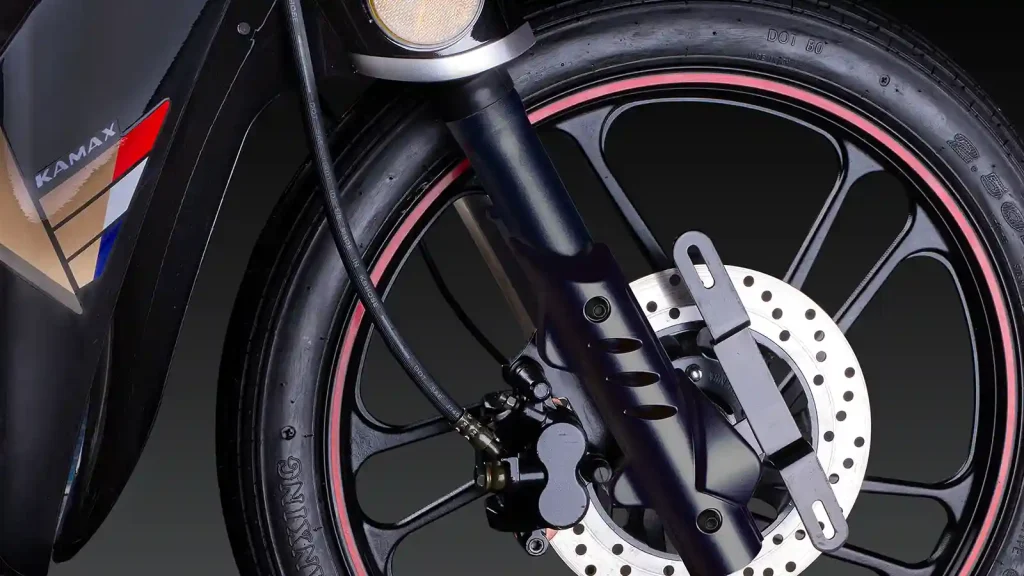

  • Brakes (front/rear): disc/drum
  • Tires/Front: 2.50-17
  • Tires/Rear: 2.75-17
  • Dimension: 1940*690*1230mm
  • Wheelbase: 1250mm

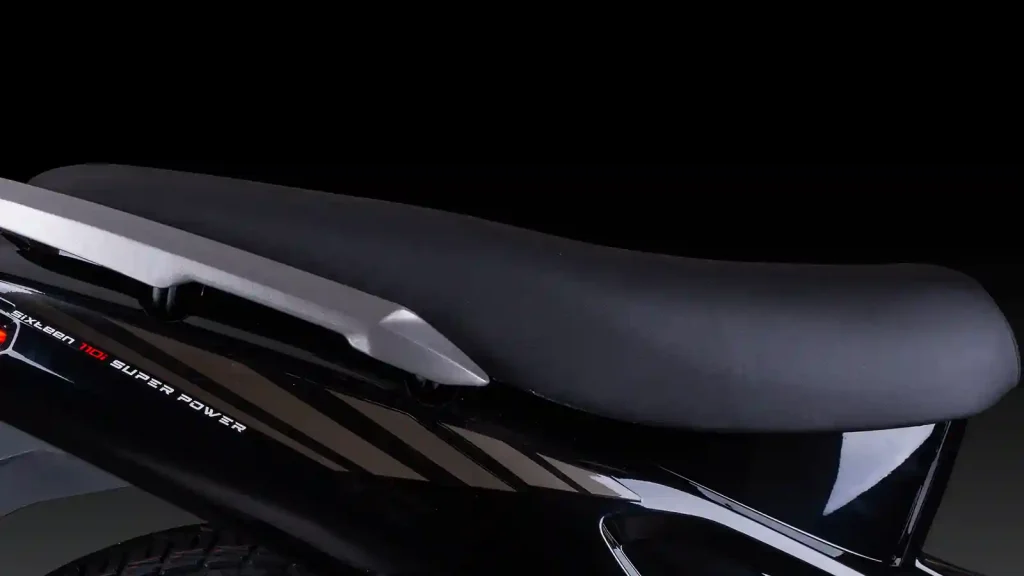

  • Seat Height: 780mm
  • Min. ground clearance: 135mm
  • Net Weight: 92kg
  • Max Speed(km/h): >85

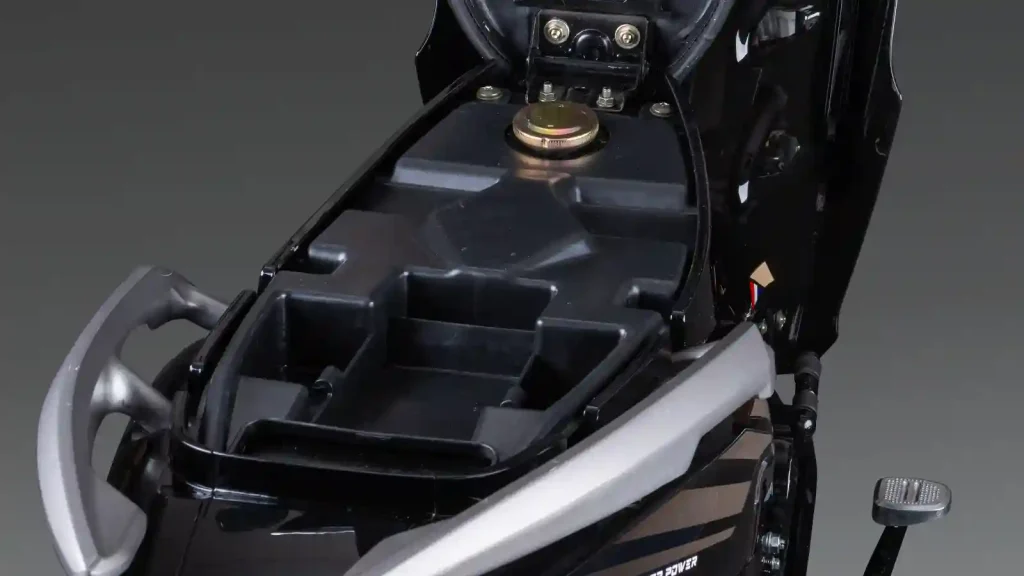

  • Fuel Tank Capacity: 3.5L
  • Battery: 12V4A

Share to

DM 20240425142646 008

ONFIGURATION DETAILS

110cc, 4-Stroke,sinle cylinder, double clutches,Air Cooled

DM 20240425142646 009
DM 20240425142646 010
DM 20240425142646 011
DM 20240425142646 012
DM 20240425142646 013
DM 20240425142646 014
DM 20240425142646 015
DM 20240425142646 016

Technical Description

Engine110cc, 4 stroke, single cylinder, double clutch, air cooled
Bore*Stroke52.4*49.5mm
Max. power5.8kw/7500rpm
Max. torque8.5kw/5500rpm
IgnitionCDI
Starting SystemElectric/Kick
Gear and Clutch 4 gears, auto clutch
Front suspensionHydraulic Spring Shock
Rear shock absorberHydraulic Spring Shock
Brakes (front/rear)disc/drum
Tires/Front2.50-17
Tires/Rear2.75-17
Dimension1940*690*1230mm
Wheelbase1250mm
Seat Height780mm
Min. ground clearance135mm
Net  Weight92kg
Max Speed(km/h) >85
Fuel Tank Capacity 3.5L
Battery12V4A
