GUGU

  • Engine: Zongshen CB150
  • Engine Type: 4 stroke, single cylinder, air cooled, manual clutch
  • Bore*Stroke: 61*49.5mm
  • Cylinder Mark: 144.6ml
  • Max. Power: 8.5KW/8500rpm
  • Max. Torque: 9.5N.m/7000rpm
  • Ignition: CDI
  • Starting System: Electric/Kick
  • Gear: International 5 gears
  • Front suspension: normal hydraulic damping type
  • Rear shock absorber: Double rear springs damping type
  • Brakes(front/rear): disc/drum
  • Tire/Front: 120/70-14 tubeless/vacuum tire
  • Tire/Rear: 120/80-14 tubeless/vacuum tire
  • Dimension: 1820*800*1040mm
  • Wheelbase: 1240mm
  • Seat Height: 700mm
  • Min. Ground Clearance: 135mm
  • Net Weight : 119kg
  • Max. Speed(km/h): >95
  • Fuel Tank Capacity: 12.5L
  • Battery: 12V7A, maintenance-free

Share to

DM 20240425114449 009
DM 20240425114449 010
DM 20240425114449 011
DM 20240425114449 012
DM 20240425114449 013
DM 20240425114449 014
DM 20240425114449 015
DM 20240425114449 016
DM 20240425114449 017
DM 20240425114449 018
DM 20240425114449 019

Technical Description

EngineZongshen CB150
Engine Model161FMJ

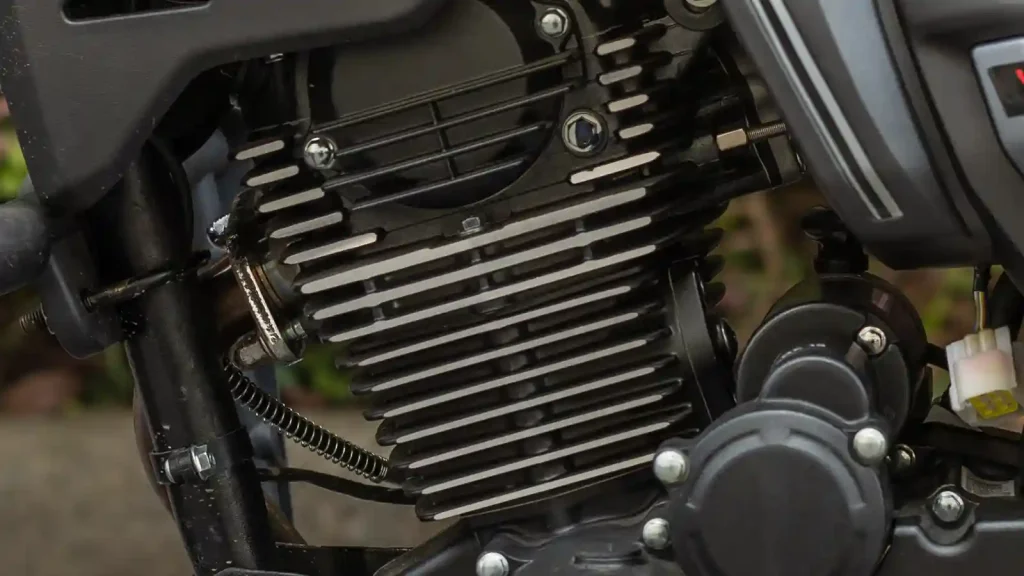

Engine Type4 stroke, single cylinder, air cooled, manual clutch
Bore*Stroke61*49.5mm
Cylinder Mark144.6ml
Compression Ratio9.2:1
Max.Power (KW/rpm)8.5KW/8500rpm
Max. Torque (N.M/rpm)9.5N.m/7000rpm
lgnitionCDI
GearElectric/Kick
Gearlnternational 5 gears

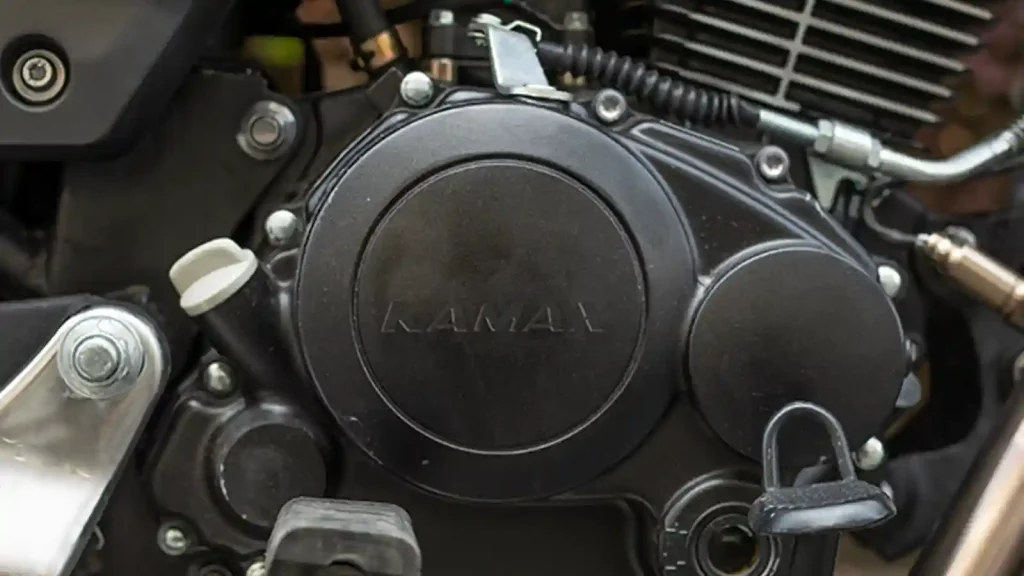

Clutchmanual clutch
Drive Trainby chain
Chassis
Suspension/Frontnormal hydraulic damping type
Suspension/RearDouble rear springs damping type
Brake/Frontdisc brake
Brake/Reardrum brake
Front wheel rim specaluminum wheel rim, 2.75*14
Rear wheel rim specaluminum wheel rim, 3.00*14

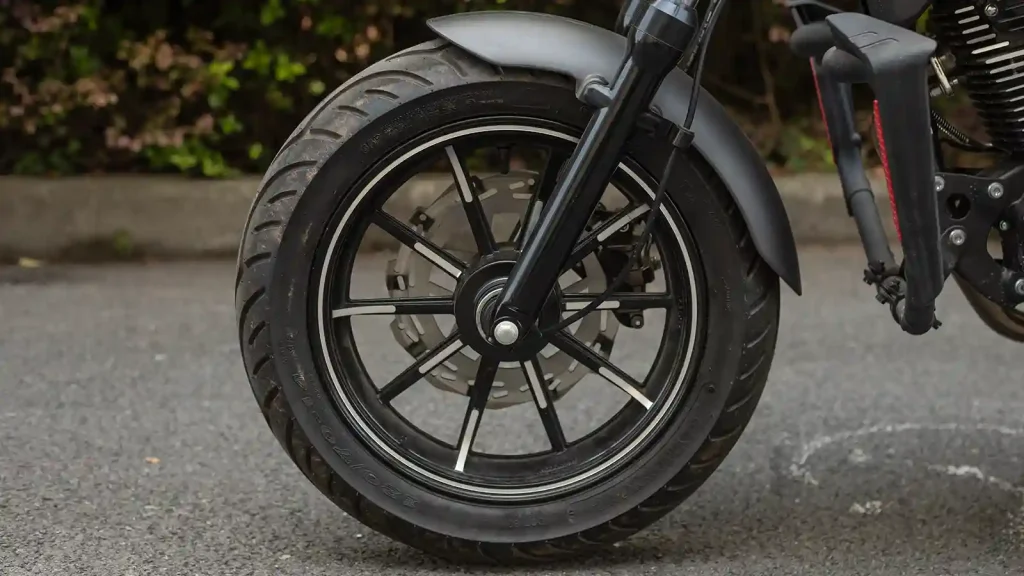

Tire/Front120/70-14 tubeless/vacuum tire

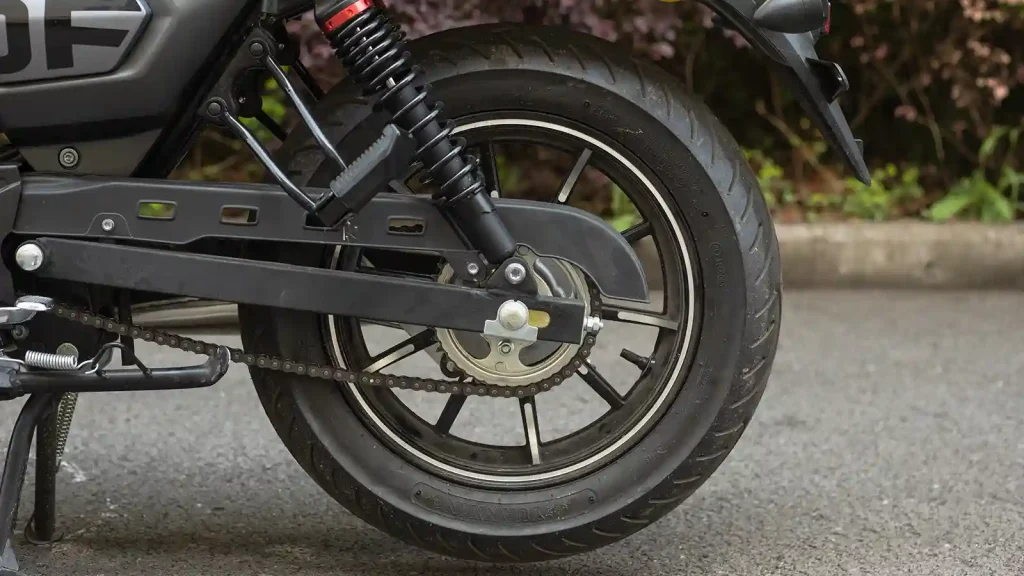

Tire/Rear120/80-14 tubeless/vacuum tire
Dimensions
L*W*H1820*800*1040mm
wheelbase1240mm
Seat Height700mm
Min ground clearance135mm
Net Weight119kg
Max. Load120kg
Max. Speed(km/h)>95
Climbing Ability>15°
Fuel Tank Capacity12.5L
Fuel TypeUnleaded gasoline, 93# or above
Fuel consumption<3.54
Battery12V7A, maintenance-free
