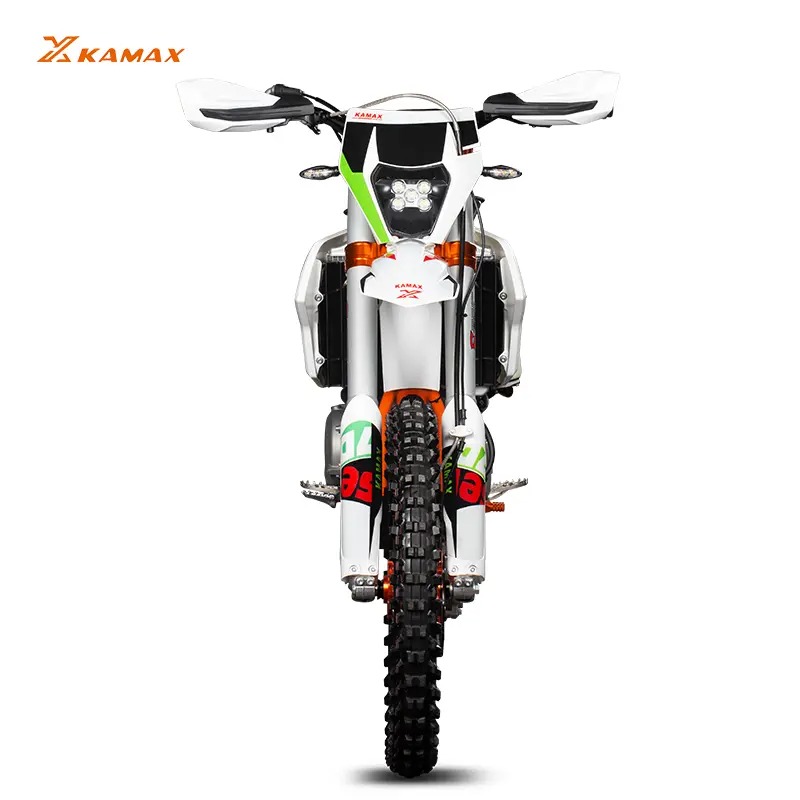

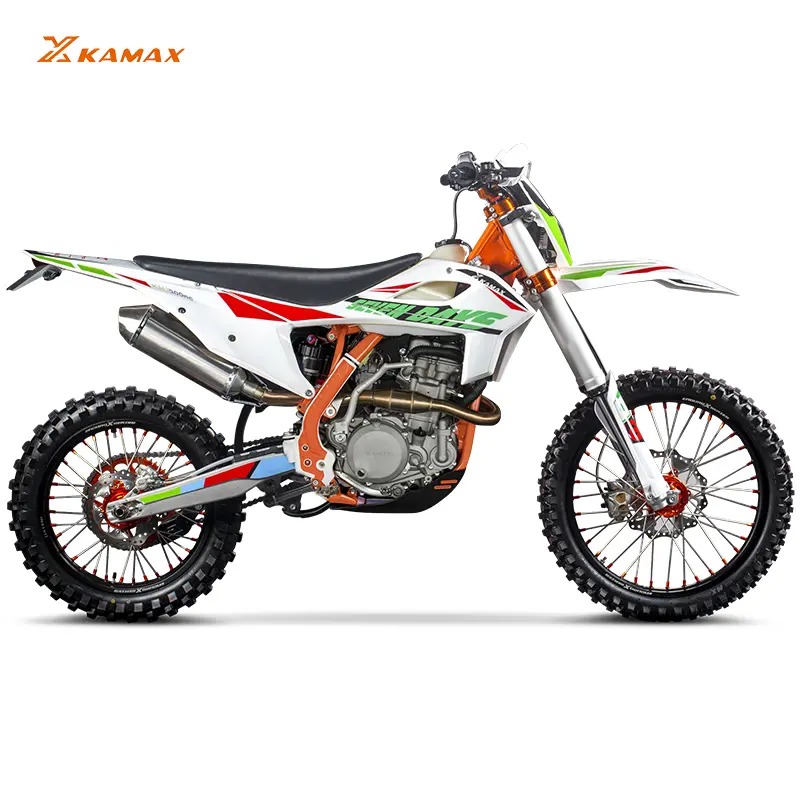

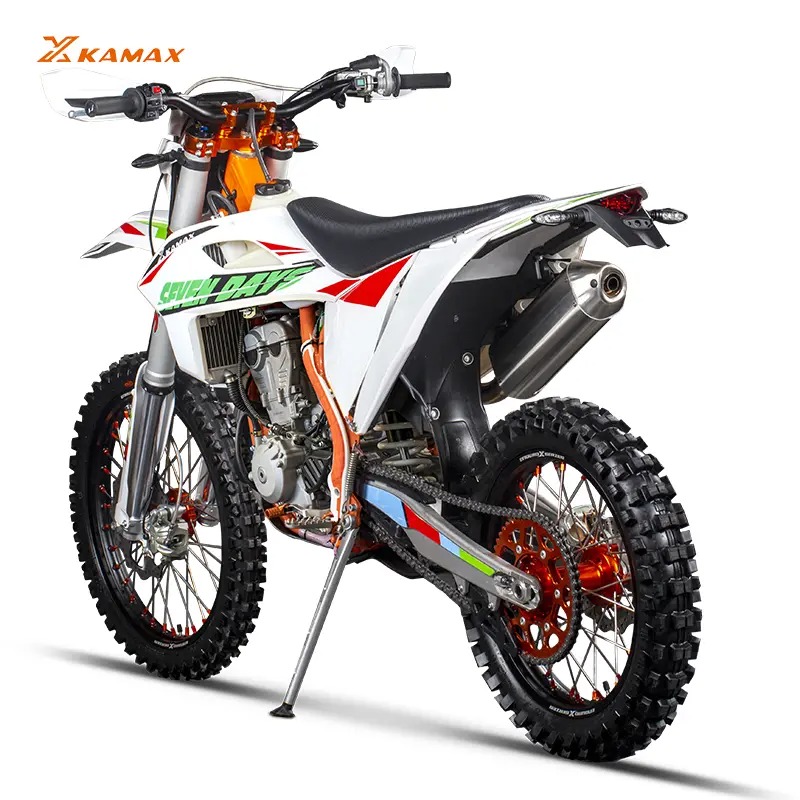

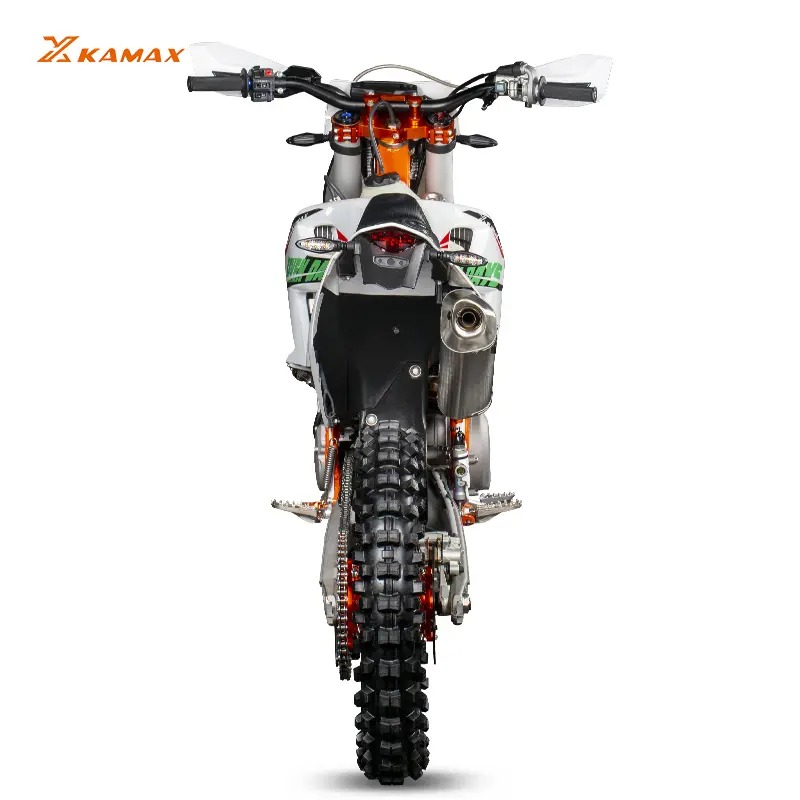

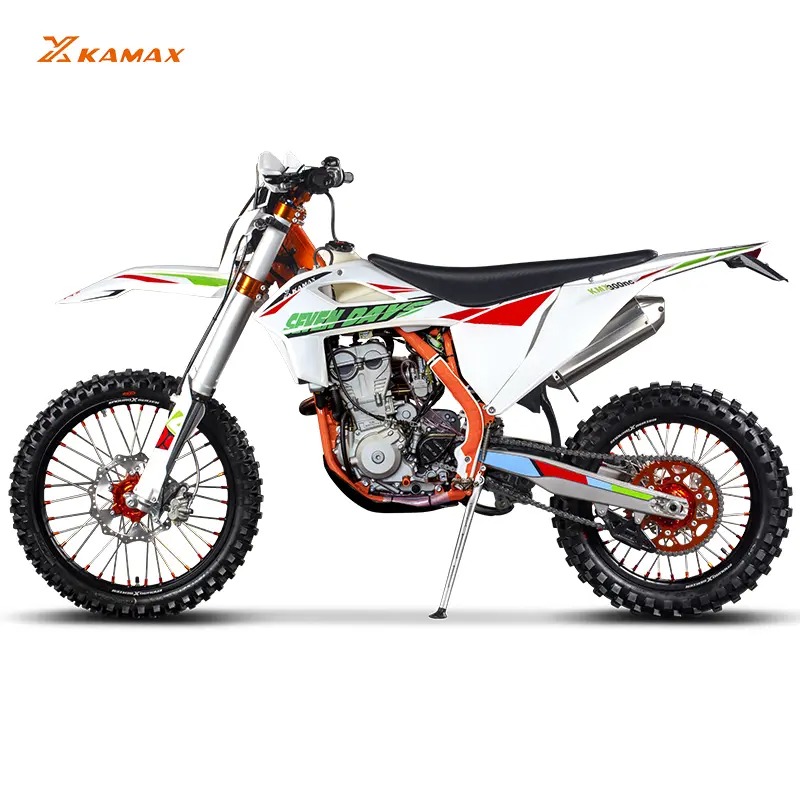

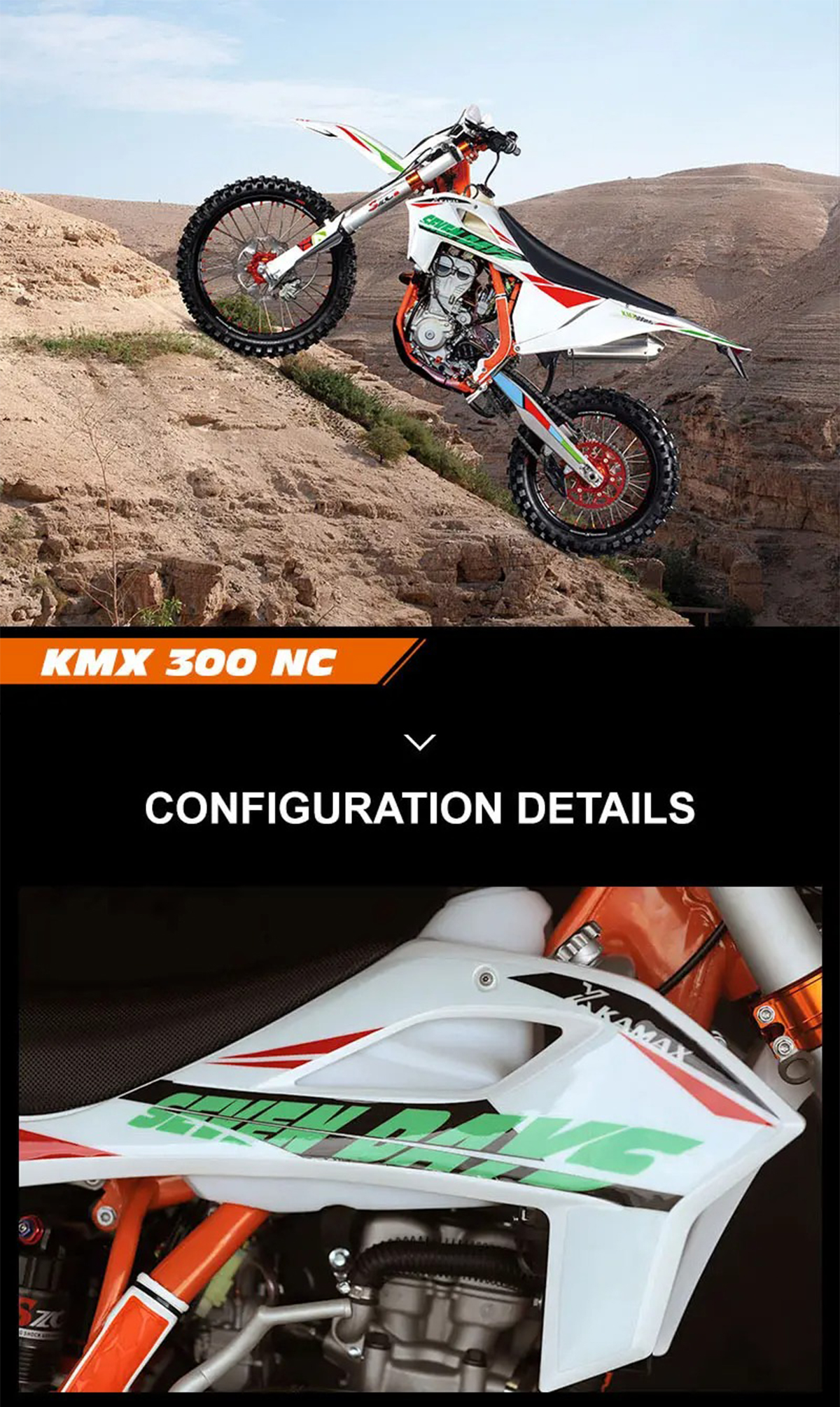

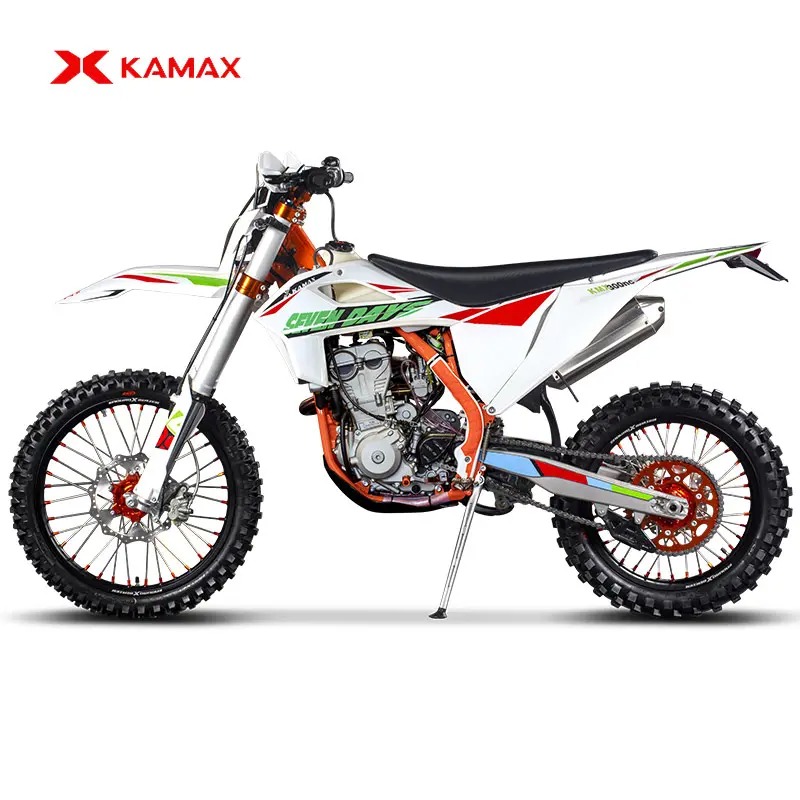

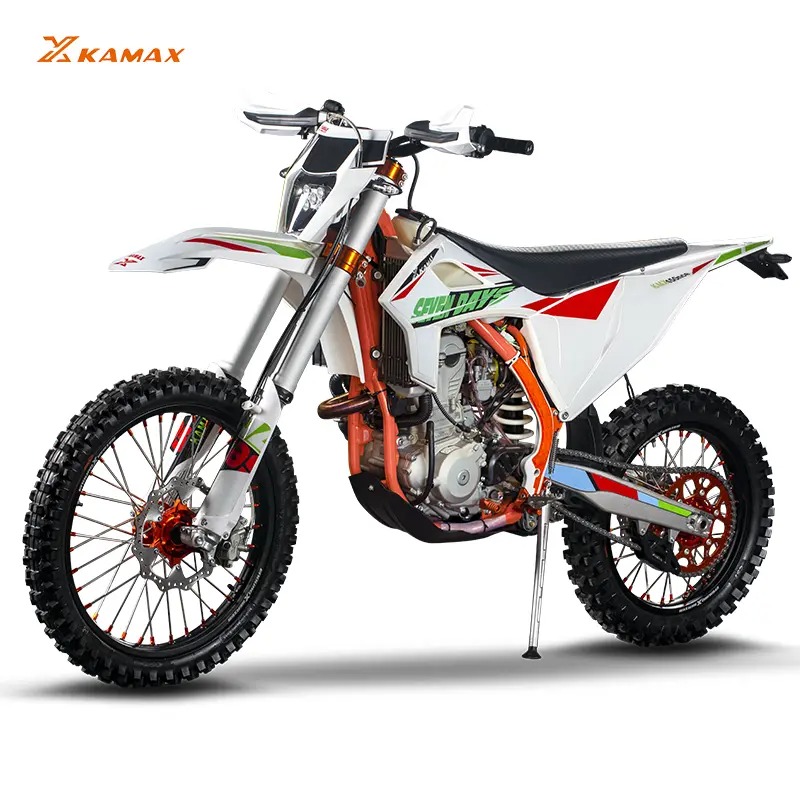

KMX300NC
- Engine: Zongshen NC300 DOHC
- Engine type: single cylinder, 4 stroke, water cooled, DOHC
- Displacement: 283cc
- Maximum power: 23(1±5%)KW/9500(1±5%)rpm
- Maximum torque: 25(1±5%)N.m/7000(1±5%)rpm
- Gearshift method: international 6 gear
- Battery: 12V/2Ah lithium battery
- Ignition method: DC-CDI
- Start method: Electric / Kick

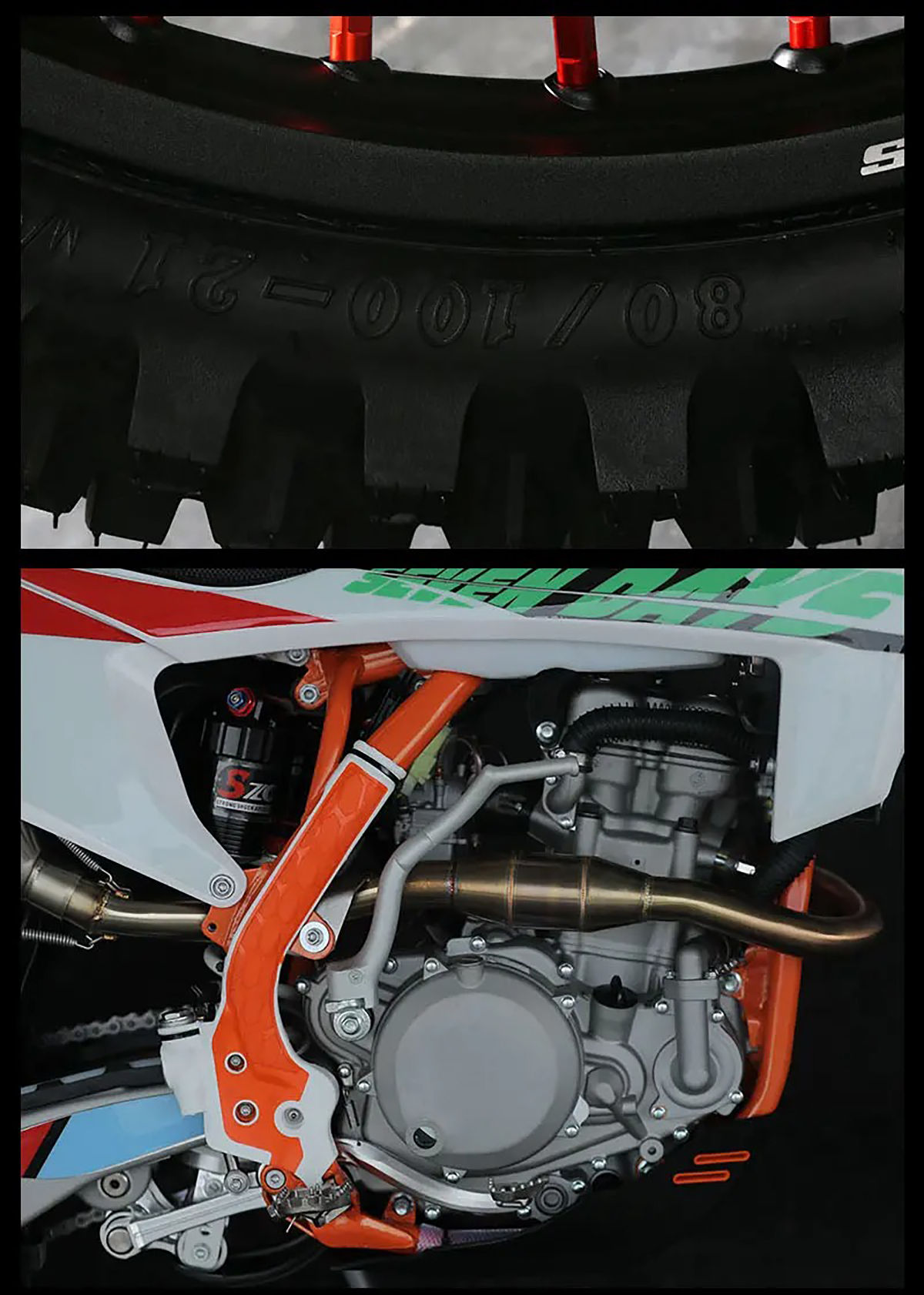

- Front/rear tires: front 80/100-21, rear 110/90-18
- Max. Speed: >80km/h
- Length*width*height: 2170*830*1285(mm)
- Wheel base: 1485(mm)
- Seat height: 960mm
- Min. ground clearance: 350mm, excellent passing ability
- Fuel tank capacity: 6L/9L
Technical Description
| Body size and weight | |
| Length*width*height | 2170*830*1285(MM) |
| wheel base | 1465(MM) |
| Rated carrying capacity | 120KG |
| Wheel specification | stainless steel spoke,7075 rim, CST(front) 80/100-21, CST(rear)110/90-18 |
| Sitting height | 960(MM) |
| Minimum ground clearance | 350mm,excellent trafficability |
| Fuel tank volume | 6(L) |

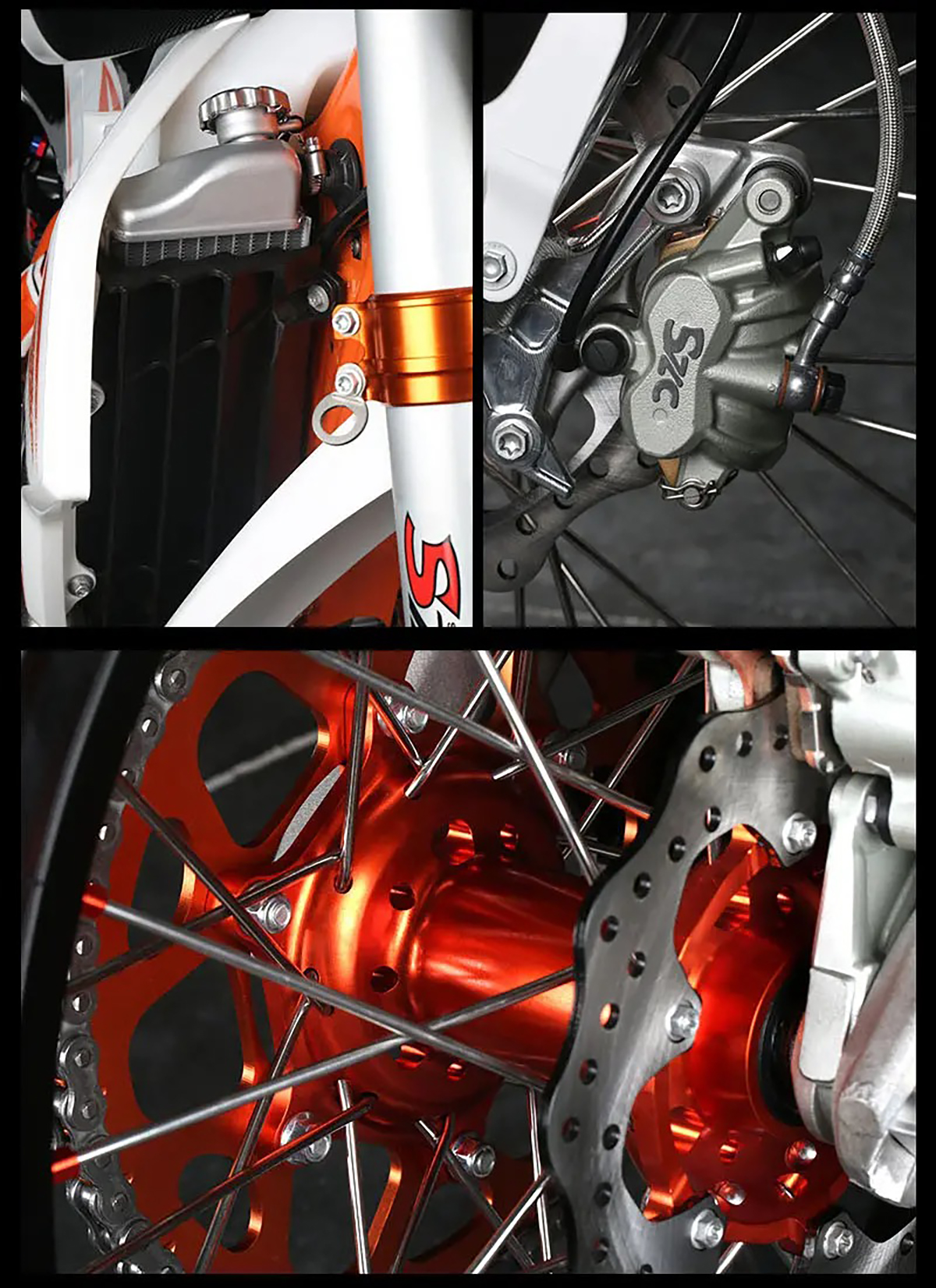

| Brake form | disc brake |
| Power system | |
| Engine model | NC300 DOHC |
| Engine type | single cylinder, 4 stroke 4 valves,water-cooling, overhead DOHC, trunnion shaft |
| Displacment | 283cc |
| Cylinder diameter(mm) | 82*53.6 |
| Maximum power | 23(1±5%)/9500(1±5%) |
| Maximum torque | 25(1±5%)/7000(1±5%) |
| Lubrication method | pressure splash |
| Clutch type | manual Wet Multi-Plate |
| Gearshift Method | constant mesh 2-stage six speed transmission |
| Compression ratio | 11.6 |
| storage battery | 12V/2AH lithium battery |
| lgnition | DC-CDI |
| Start method | Kick & Electric start |
| Car frame/shock absorber/braking | |
| Car frame | hascrome, high strength |

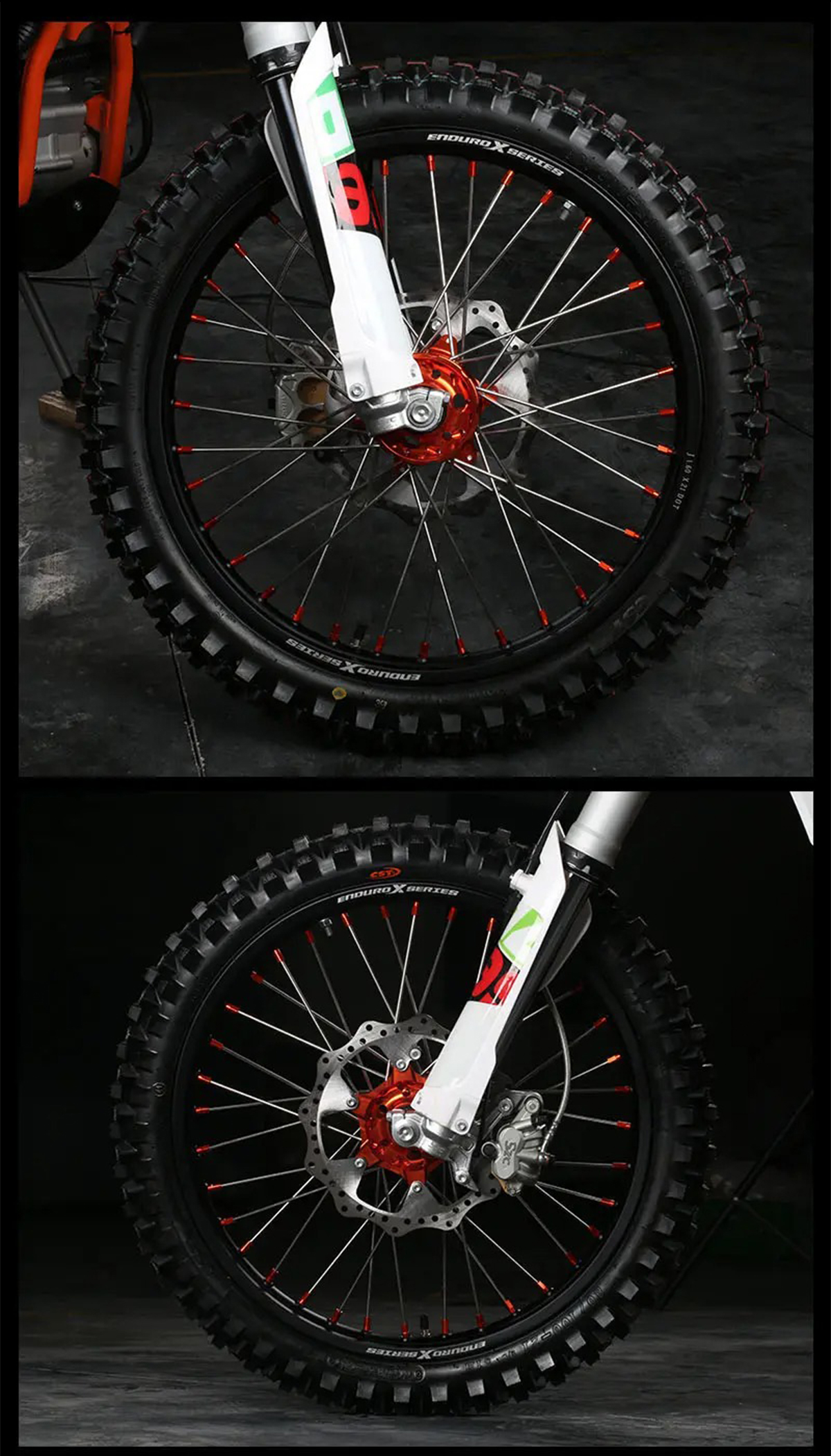

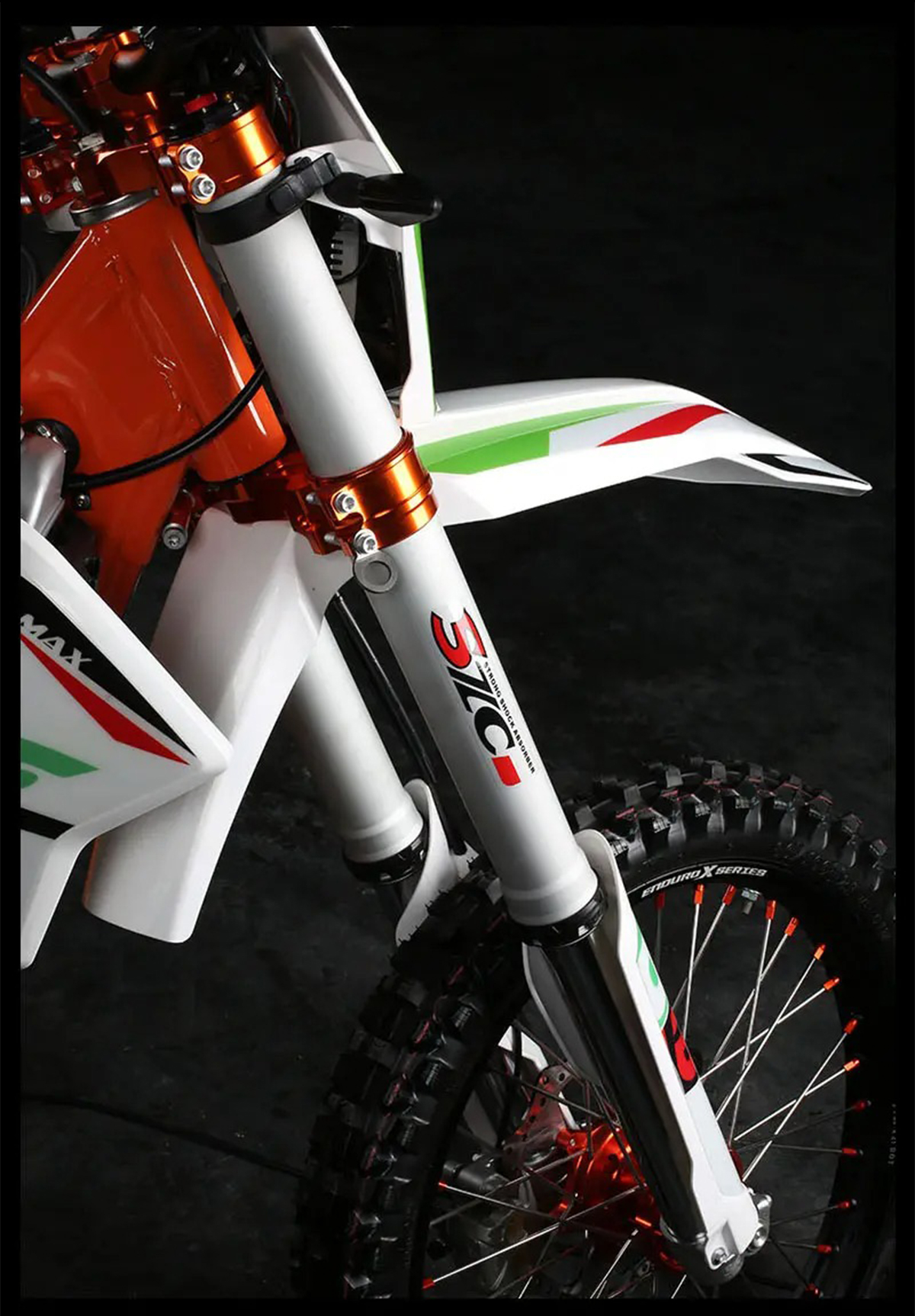

| Front shock absorber | inversion, adjustable upper and lower resistance, added compressor valve. |

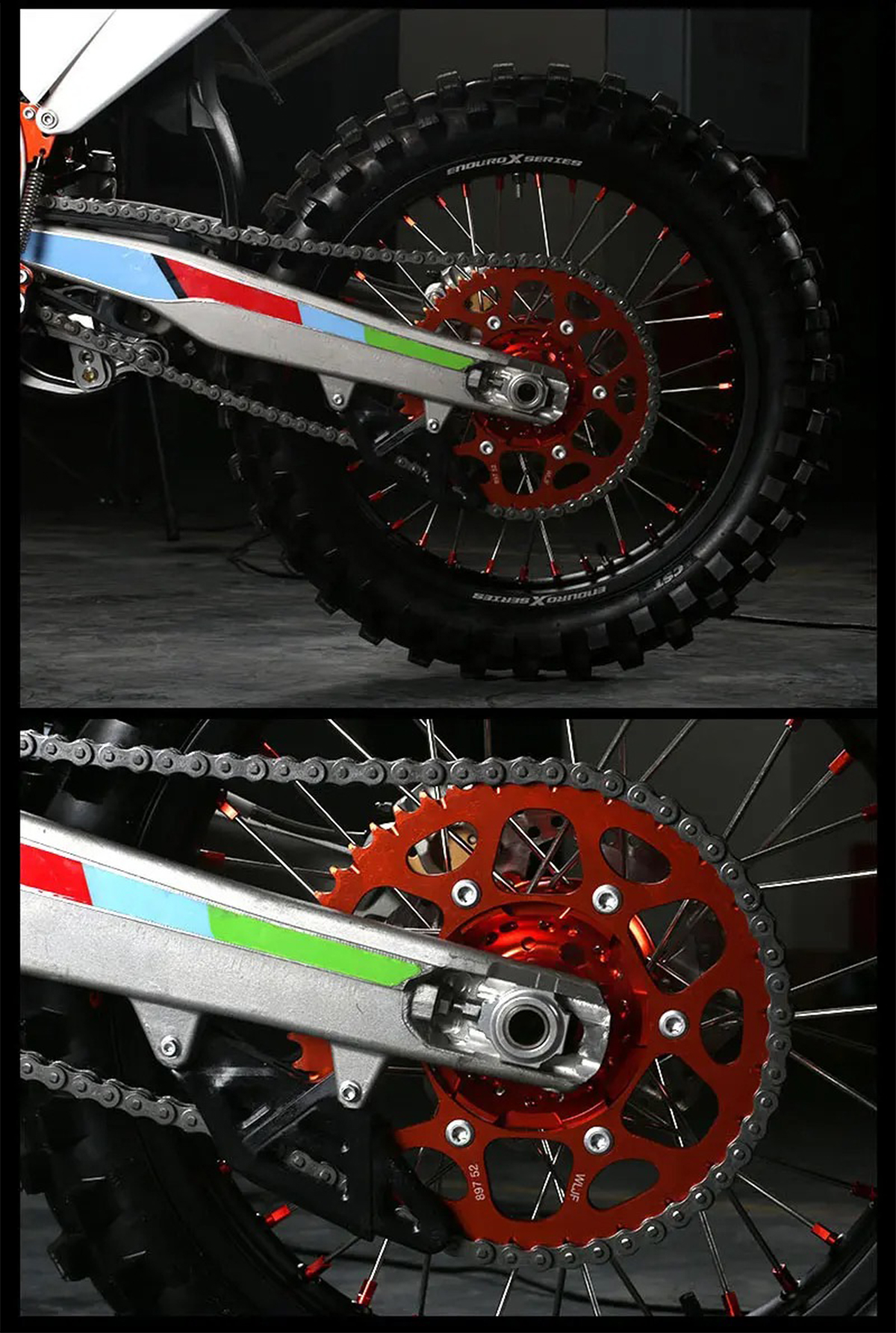

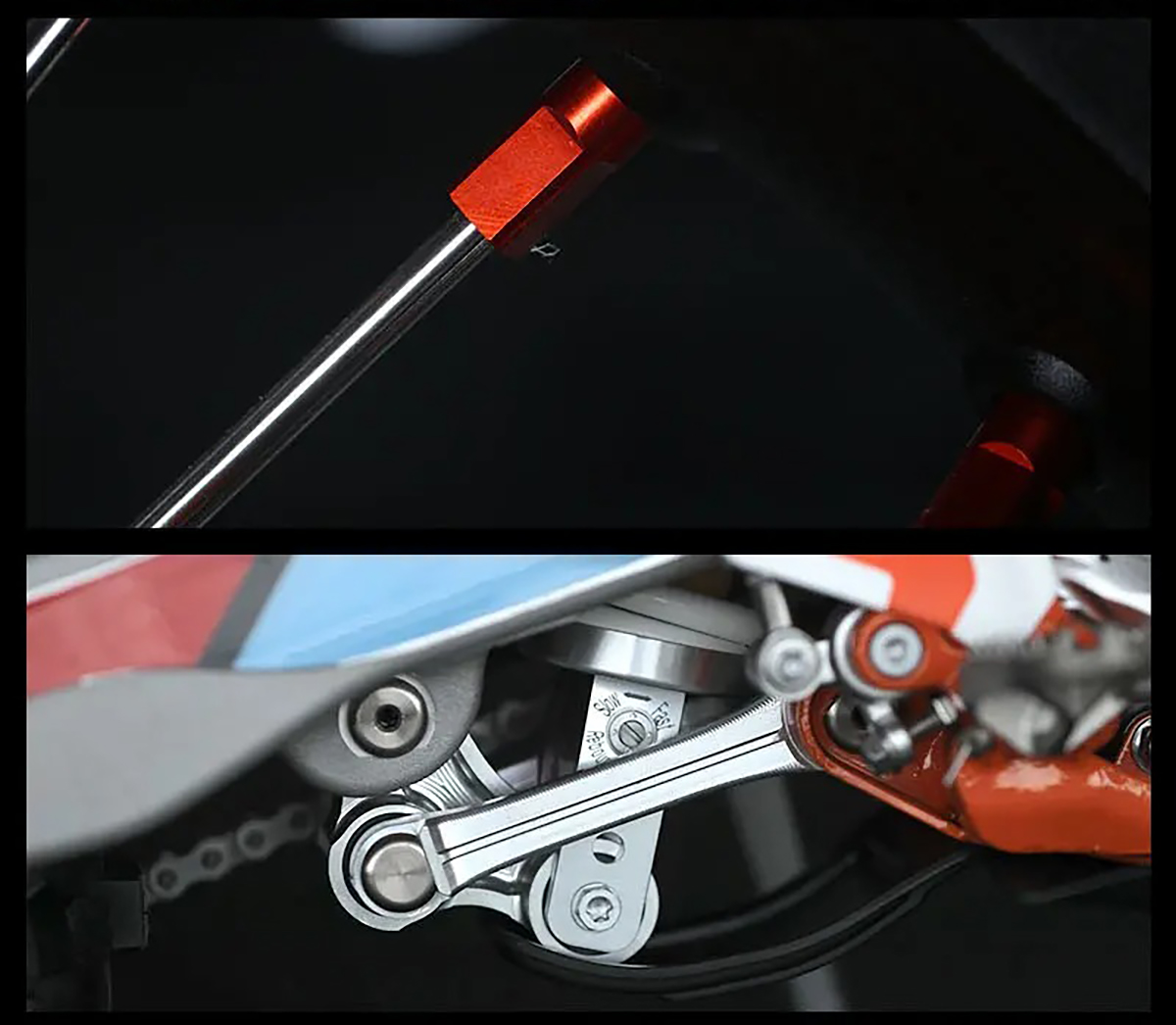

| Rear shock absorber | single cylinder oil pressure, built in airbag center absorber, Return resistance, preloading adjustable upper and lower |
| Rear flat fork | aluminium alloy |
