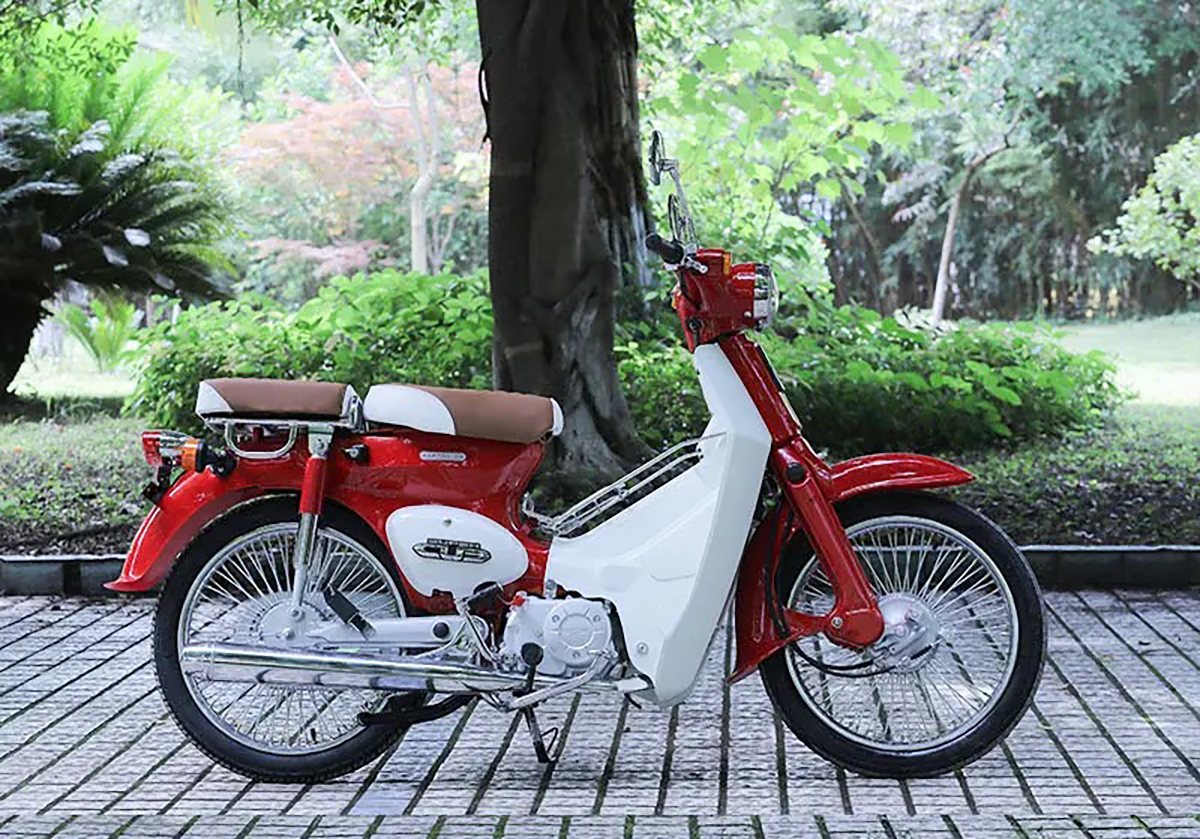

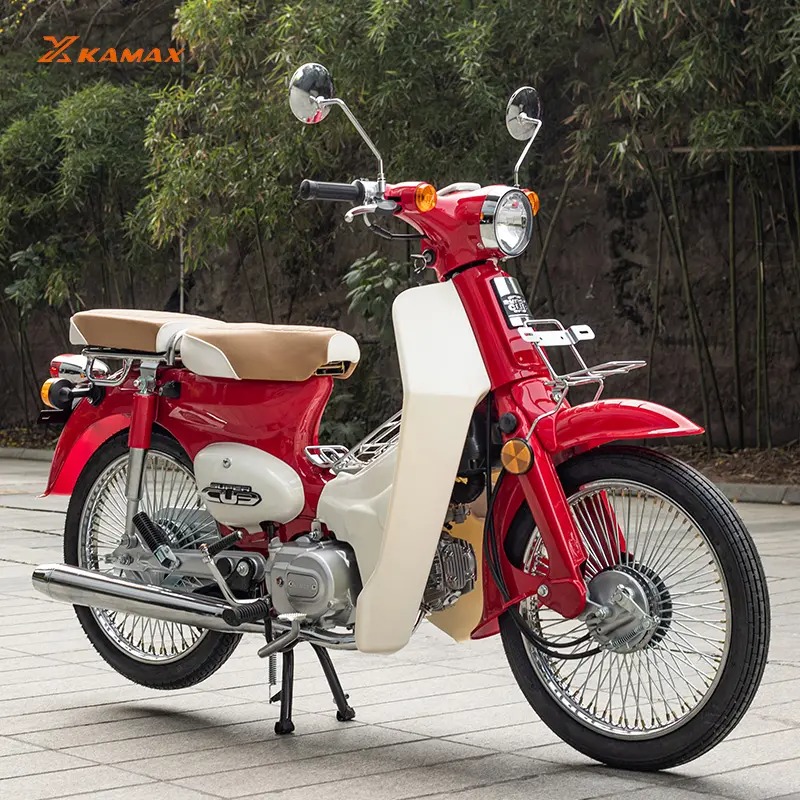

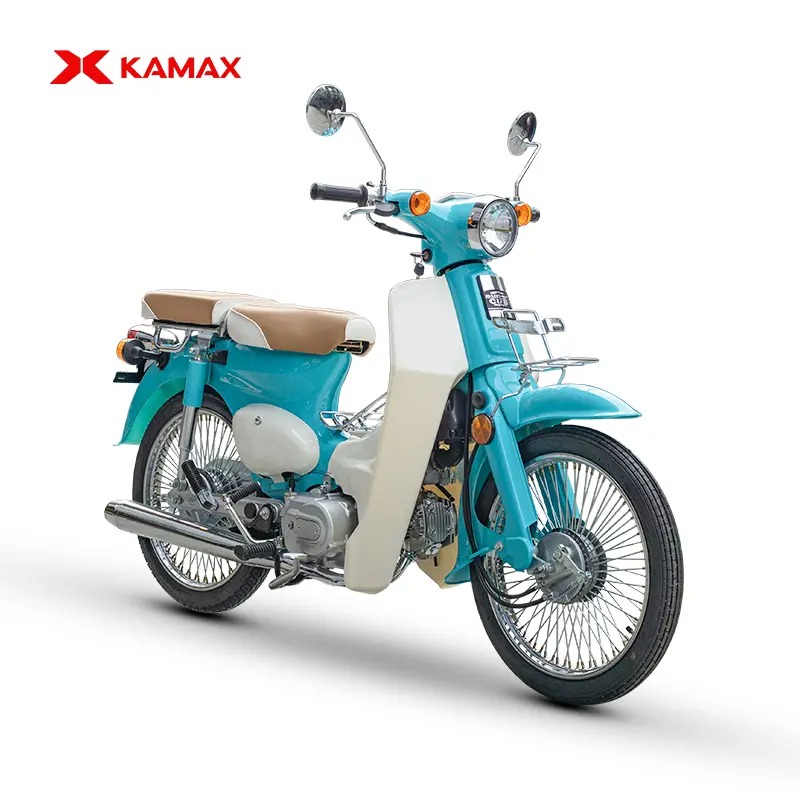

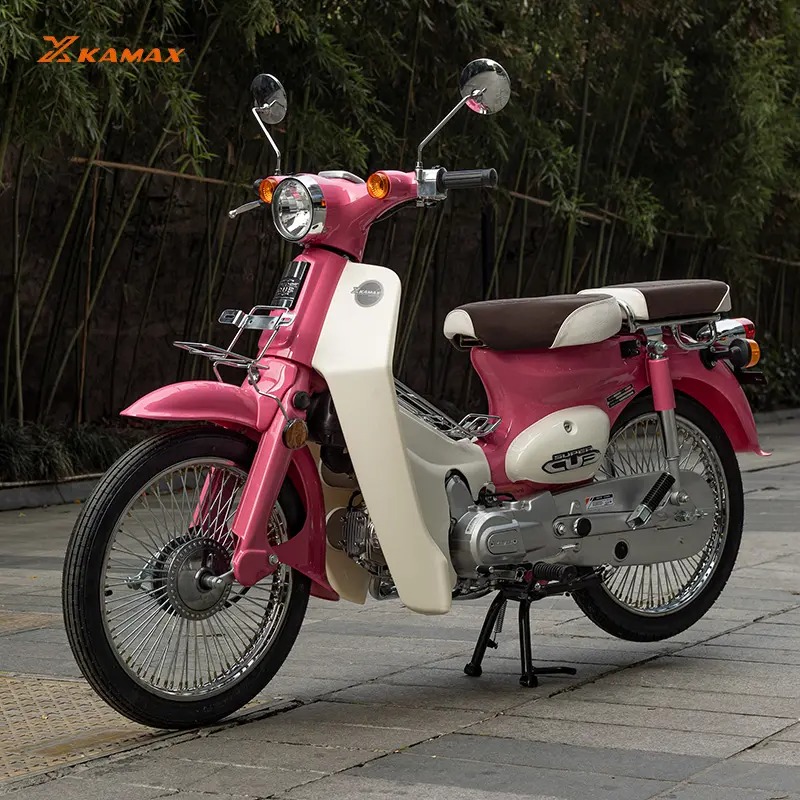

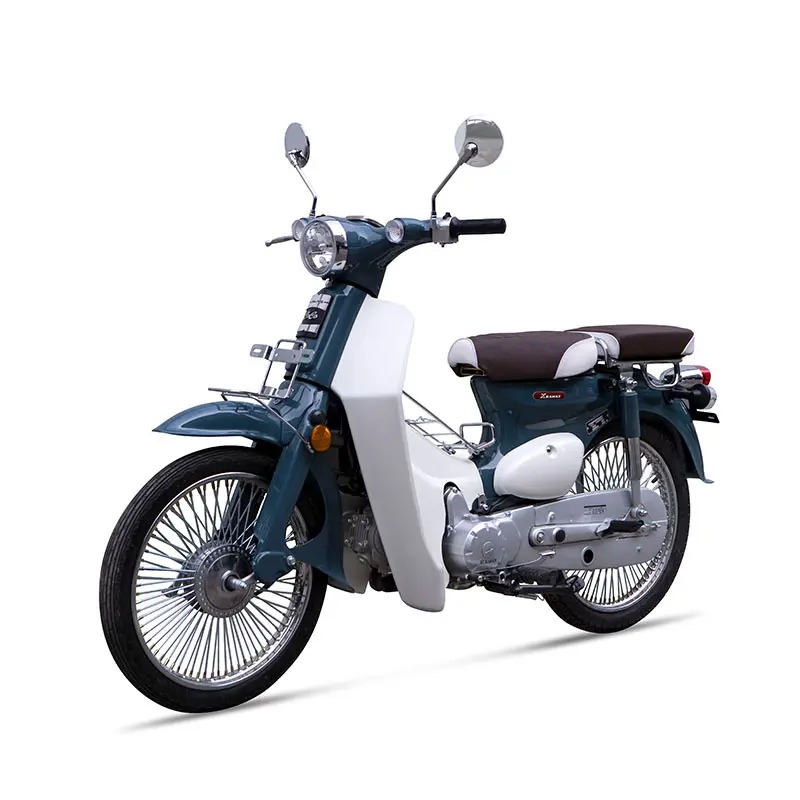

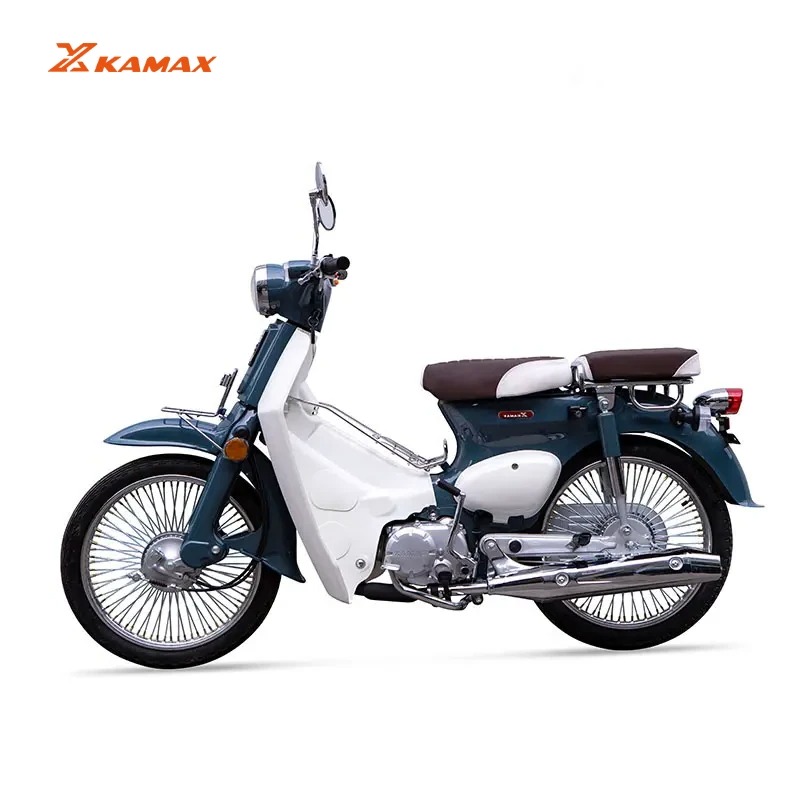

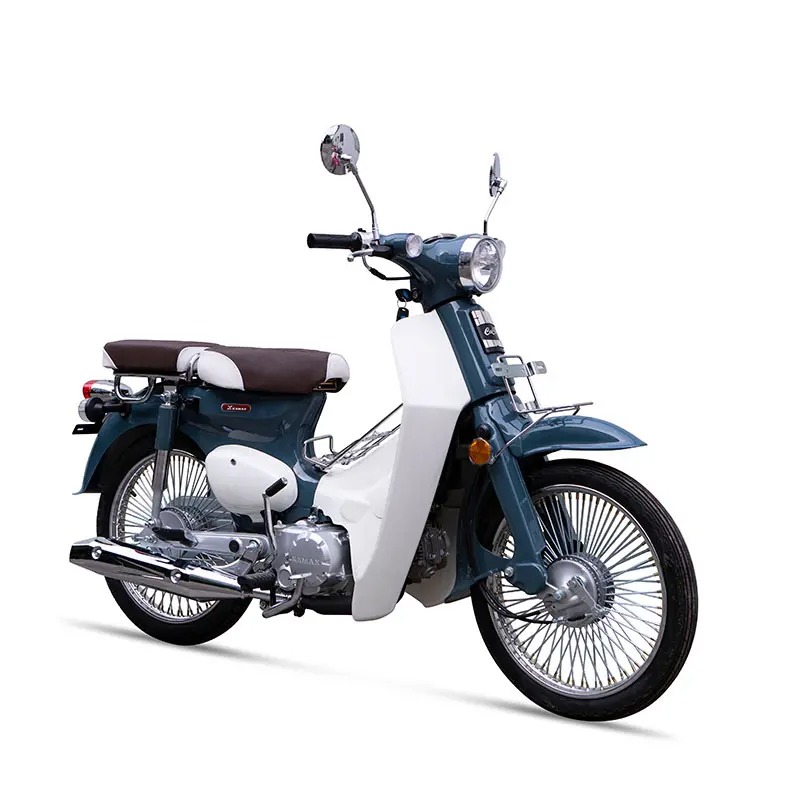

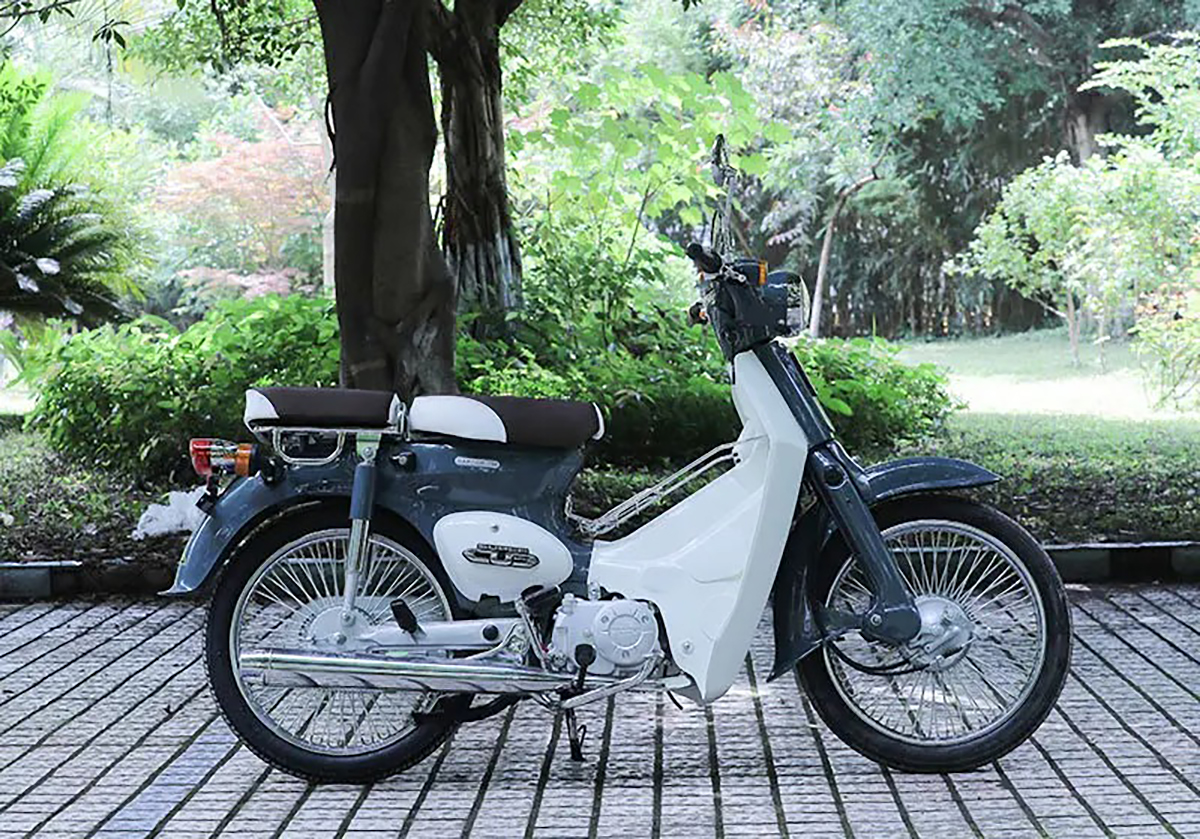

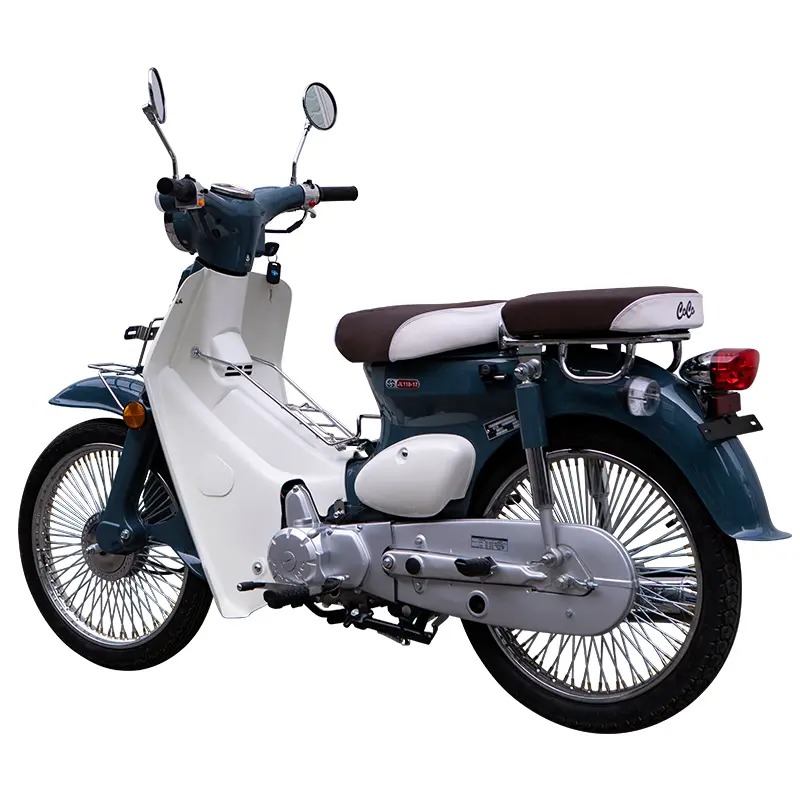

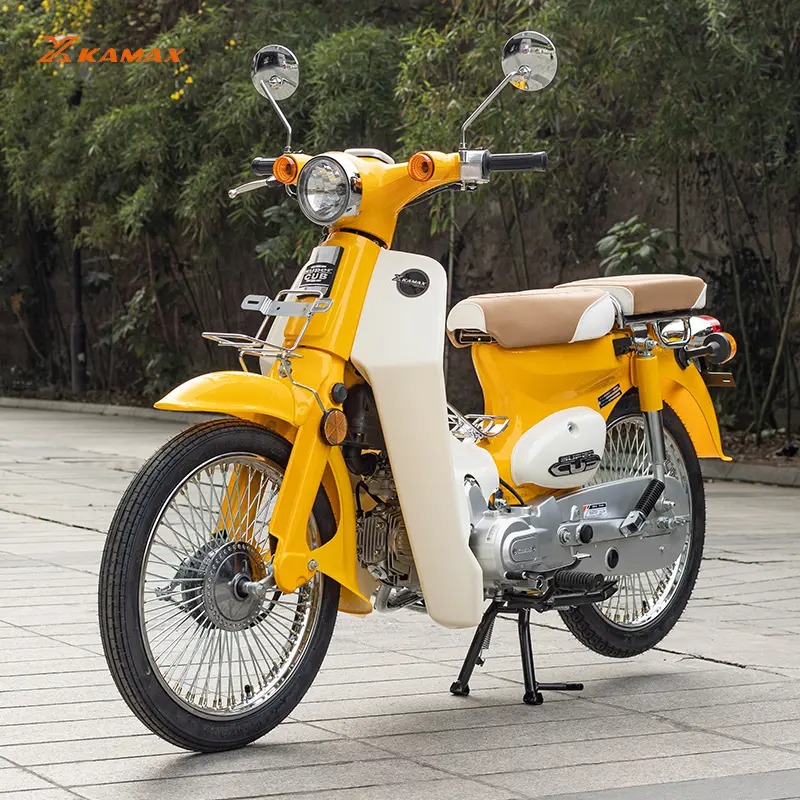

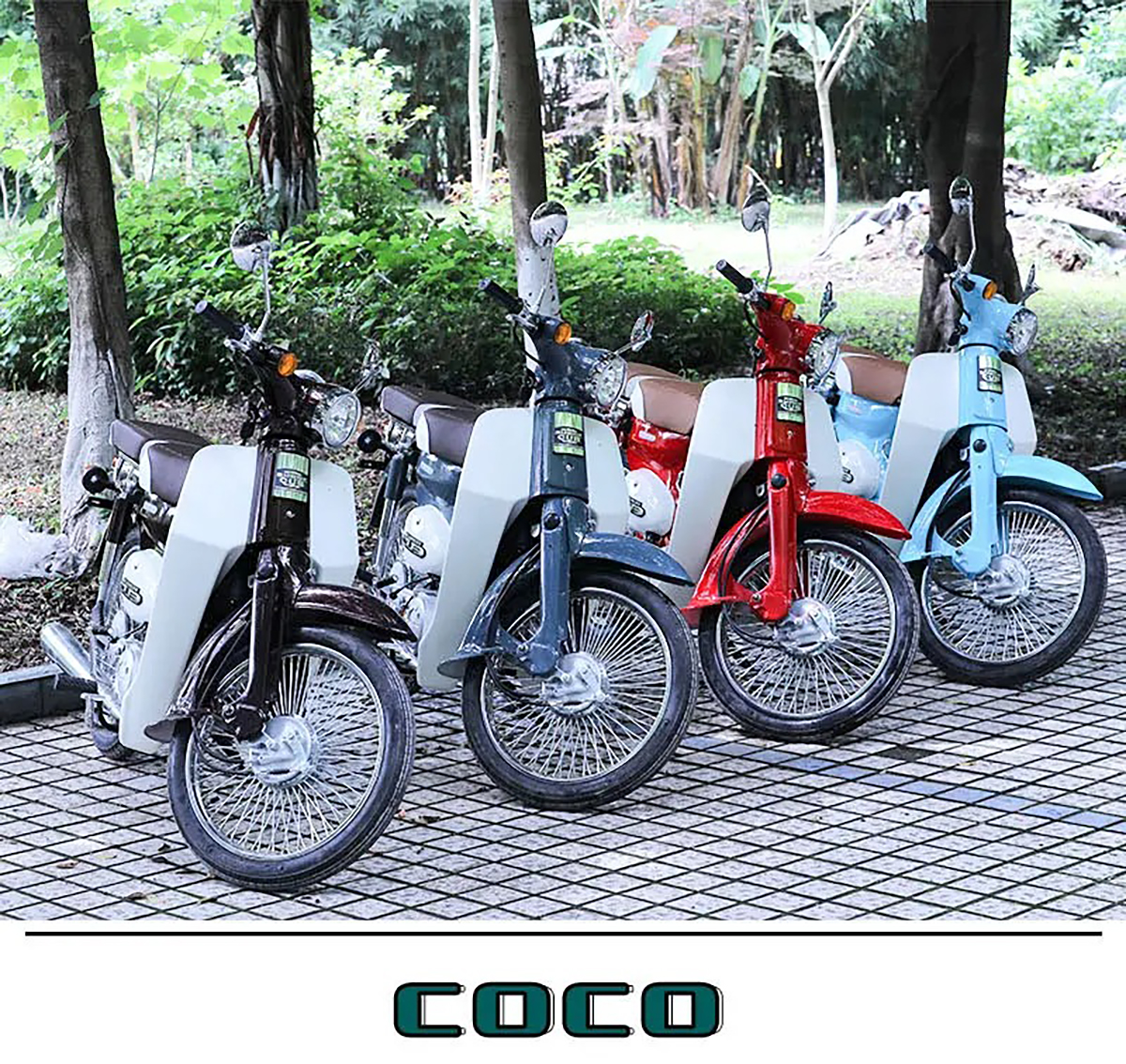

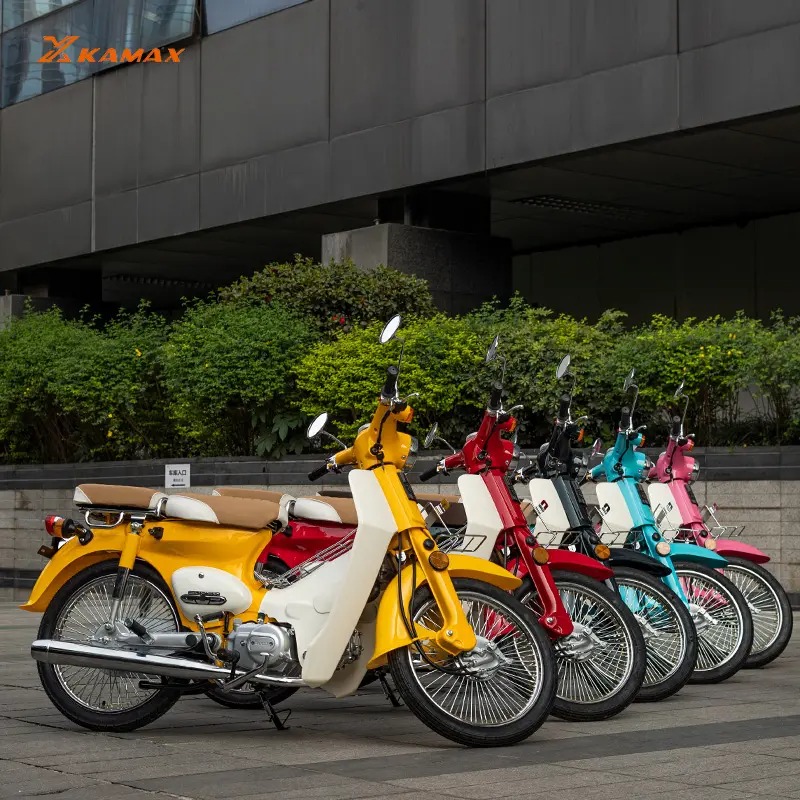

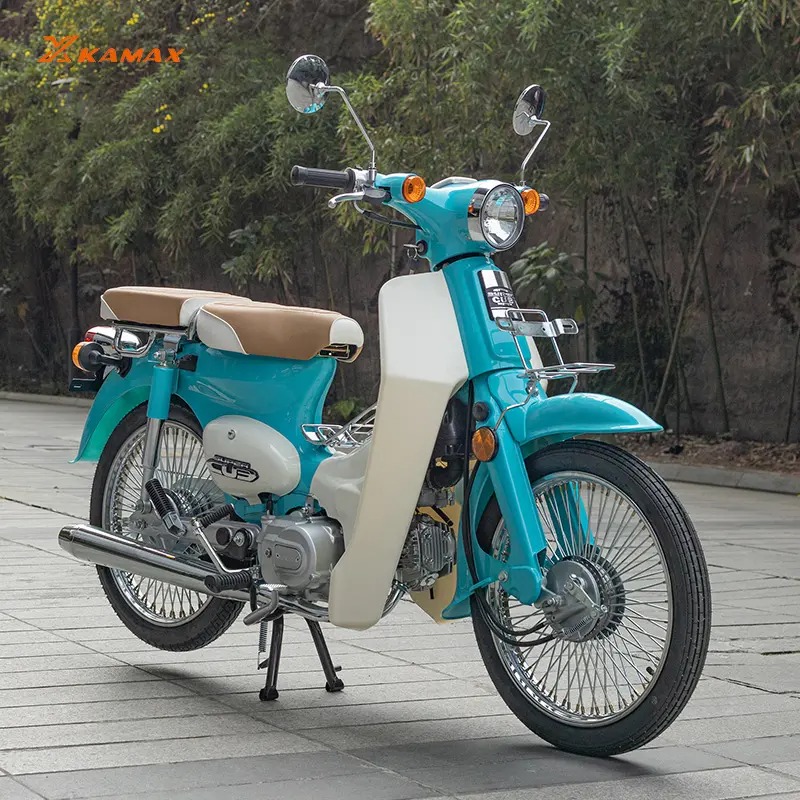

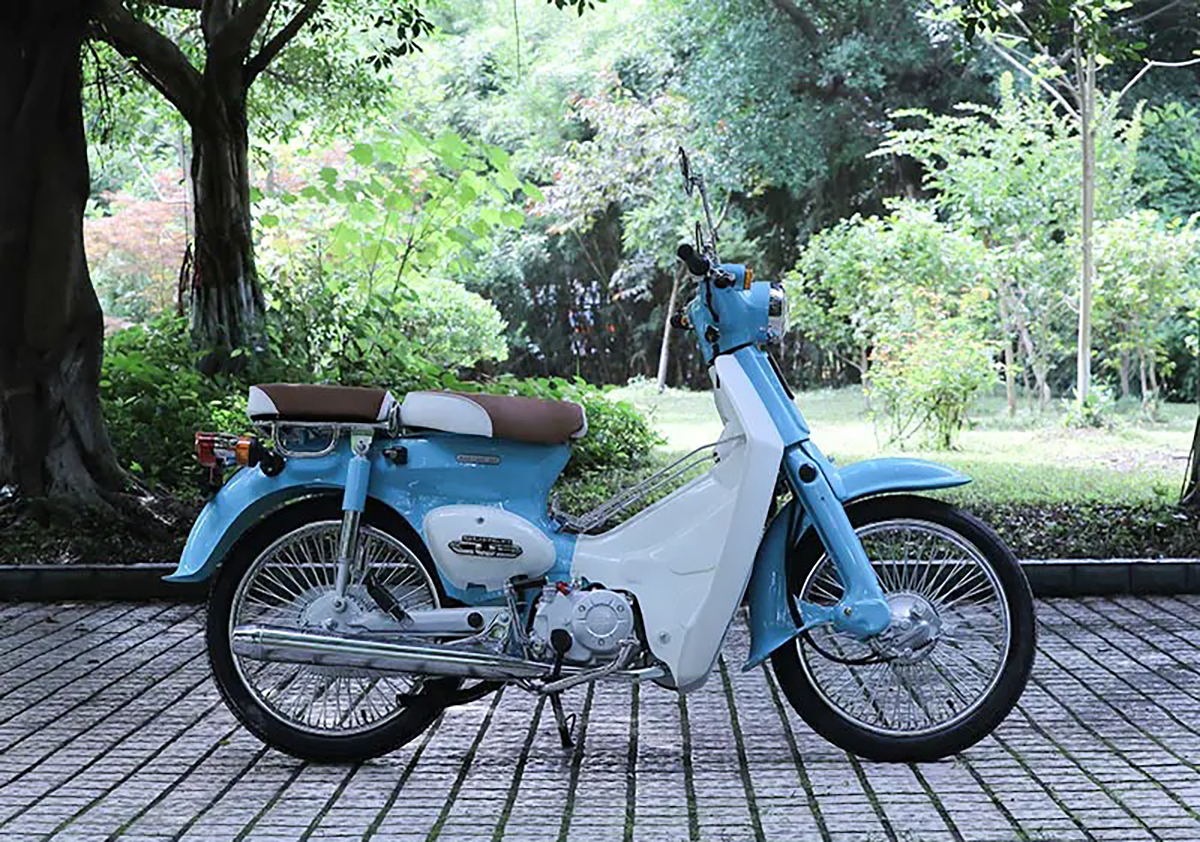

Chinese Kamax Factory 110cc Underbone Wholesale 4 Stroke Vintage Motorcycle COCO

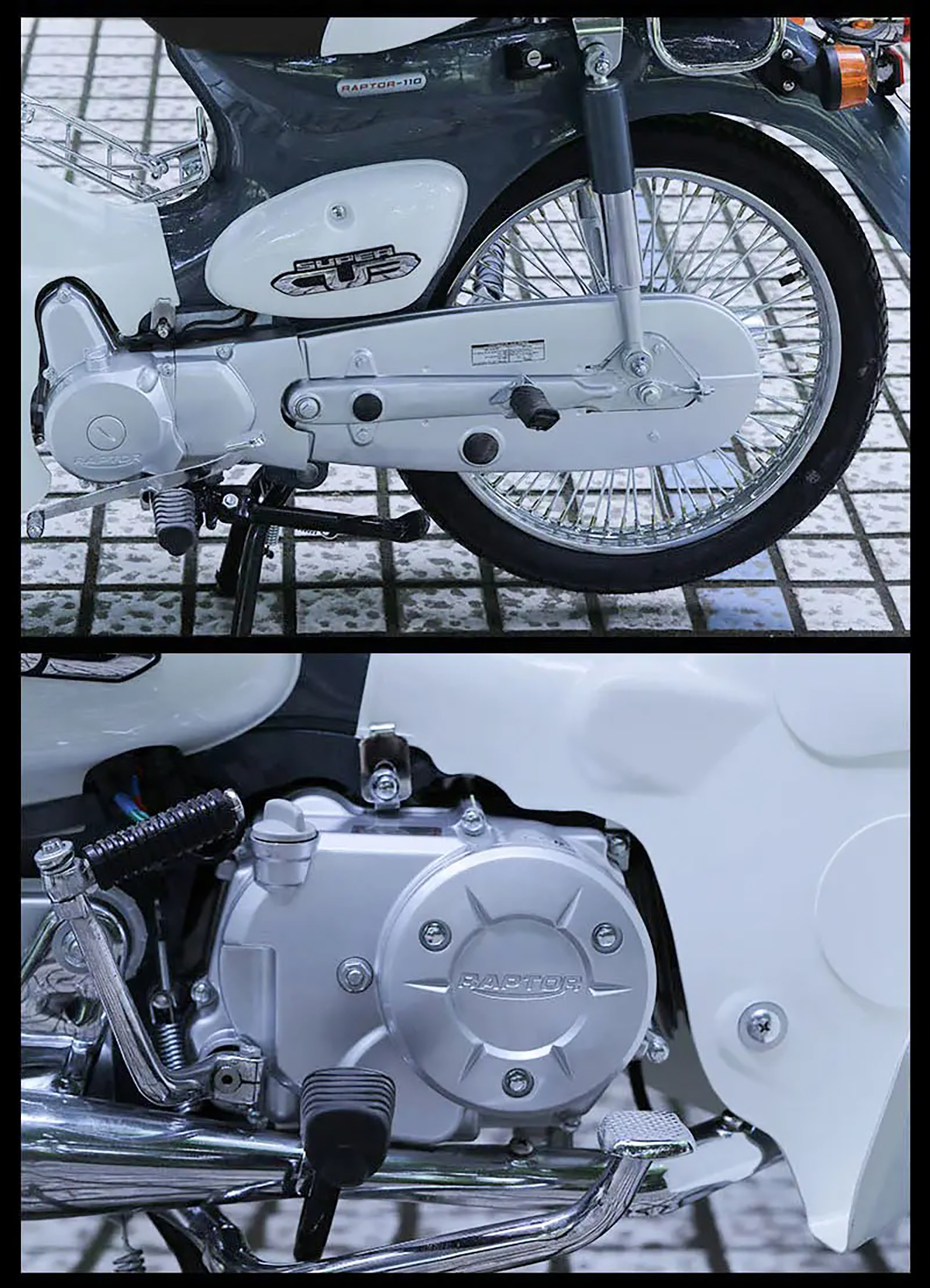

- Engine Type: Single cylinder, 4-stroke, air-cooled
- Displacement: 108ml
- Bore*Stroke: 50*55.5mm
- Max. Power (kw/rpm): 5.2/7500
- Max. Torque (N.m/rpm): 7.0/5500
- Max. Speed (Km/h): >75
- Clutch Type: Automatic clutch
- Ignition: CDI
- Starting System: Electric/Kick

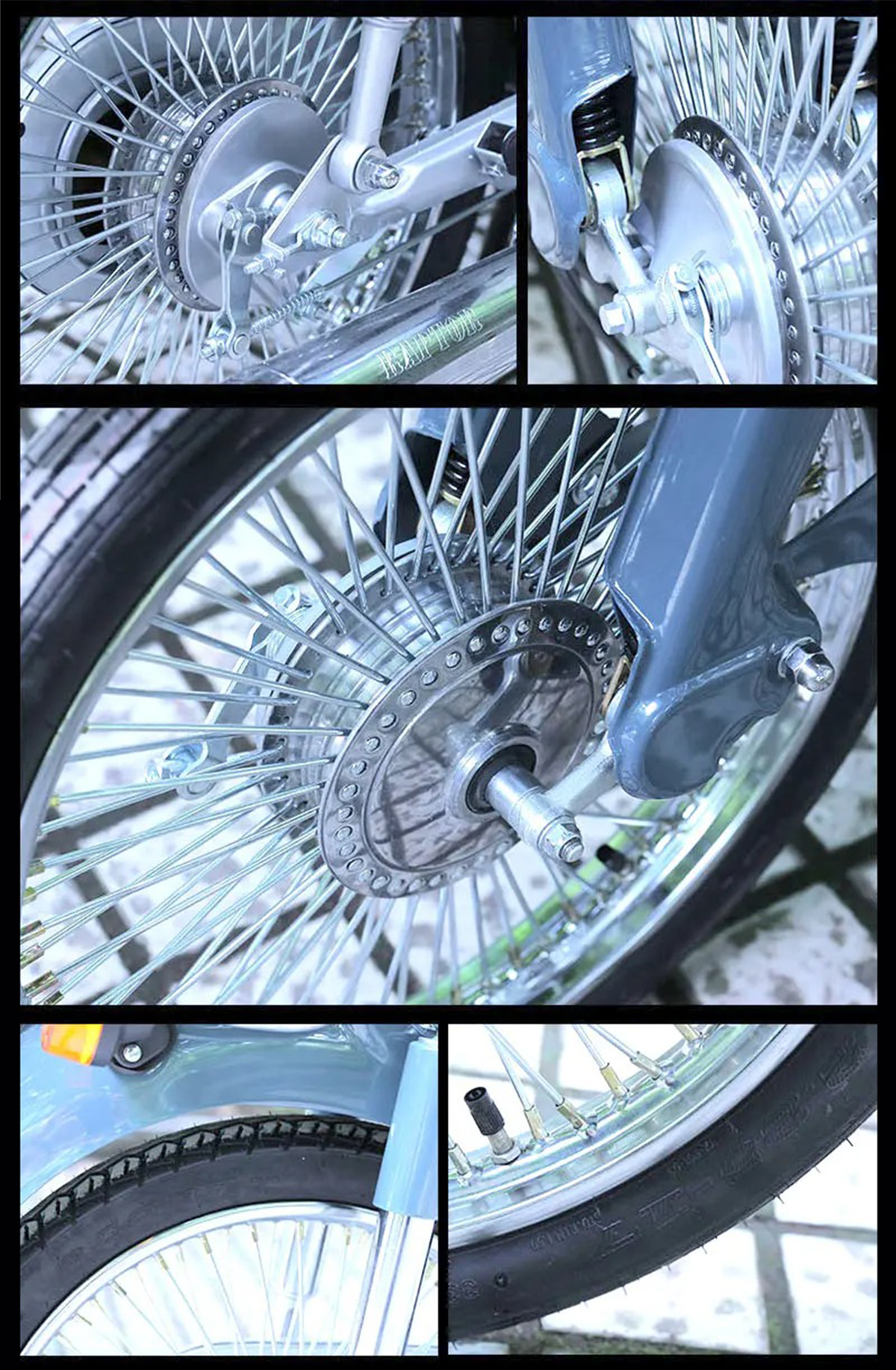

- Brakes(front/rear): drum/drum
- Front Tire: 2.50-17
- Rear Tire: 2.50-17
- Battery: 12V5Ah
- Dimension: 1820*660*1030mm
- Seat Height: 760mm
- Wheelbase: 1180mm
- Min. Ground Clearance: 130mm
- Net Weight: 86kg
- Engine Oil Volume: 0.8L
- Fuel Tank Capacity: 3.5L
CSSC China Power Lithium Battery: With a safe and efficient battery management module, the 93V40AH battery pack is guaranteed to have ample power and stability.
Weight: 23KG. Quick disassembly function anytime & anywhere. Can be charged using household electricity, fast charge function (0-80%): 2 hours.
Technical Description
| ENGINE | CHASSIS | ||
| Engine Type | Single cylinder 4-strokeair-cooled | Front Brake | Drum brake |
| Rear Brake | Drum brake | ||
| Displacement(ml) | 108 | Front Tire | 2.50-17 |
| Bore x Stroke (mm) | 50×55.5 | Rear Tire | 2.50-17 |
| Compression Ratio | 9.0: 1 | Battery | 12V5Ah |
| Max.Power (kw/r/min) | 5.2/7500 | ||
| Max.Torque(N.m/r/min) | 7.0/5500 | DIMENSIO | |
| Max.Speed(Km/h) | 75 | L×W× H(mm) | 1820×660×1030 |
| Lubrication | Pressure, splash | Seat Height | 760 |
| Clutch Type | Automatic clutch | Wheelbase | 1180 |
| lgnition | CDI | Min.Ground Clearance(mm) | 130 |
| Starting System | Electric/Kick | Max. Permissionable Weight(kg) | 150 |
| Transmission System | Chain drive | Rider Capacity | 2 Persons |
| Net Weigth | 86 | ||
| ENGINE | Engine Oil volume | 0.8L | |
| Packing Size(mm) | 1700X460X850 | Fuel Tank Capacity | 3.5L |
| Packing Weight(kg) | 105 | ||
| Container Loadina Capacitv (40HQ’Container) : PCS/40HQ 105 | |||
