China Motorcycle Manufacturer Wholesale Chongqing Kamax C9 110cc Moped Scooter Motorcycle

length*width* height(mm)1945*700*1070
Wheelbase(mm)1265
Max. Power Output (kW/ rpm)4.7/7500±5%
Max. Torque (Nm/rpm)6.9/6000±5%
Ground Clearance (mm)130
Starter (Type)electric/kick
Seat Height (mm)770

Share to

未标题 1 4

Technical Description

C9 Specification
Type (Cooling, stroke, configuration)YB110 (zongshen)
Displacement (cc)101.8
Bore x Stroke (mm)49×54
Compression Ratio8.8:1
Max. Power Output (kw/rpm)4.7/7500±5%
Max. Torque (Nm/rpm)6.9/6000±5%
CLUTCH TYPEdouble clutch
Oil Capacity (L)0.8
Fuel Tank Capacity (L)3.5
Fuel Consumption (km/L)≤1.8
Starter (Type)electric/kick
Battery Capacity (V/AH)4A Maintenance-free
Sparkplug TypeCDI
V-Max (km/h)285
Dimensions, LxWxH (mm)1945*700*1070
Wheelbase (mm)1265
Seat Height (mm)770
Ground Clearance (mm)130
Net Weight (F/R) (kg)91
Max. Carrying Capacity (F/R) (kg)150

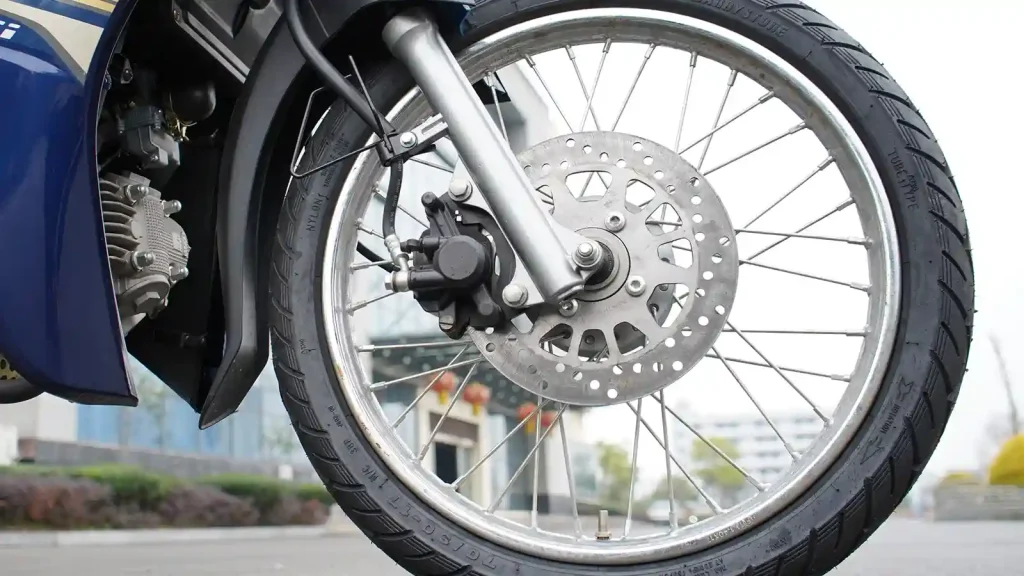

Rim Size Front1.4×17
Rim Size Rear1.6×17

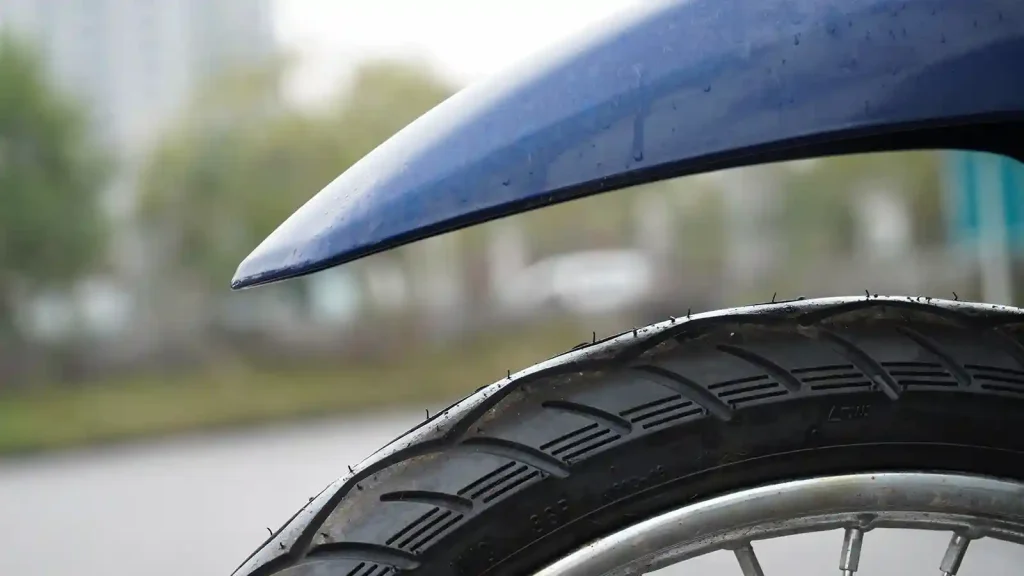

Tyres Front70/90-17
Tyres Rear80/90-17
