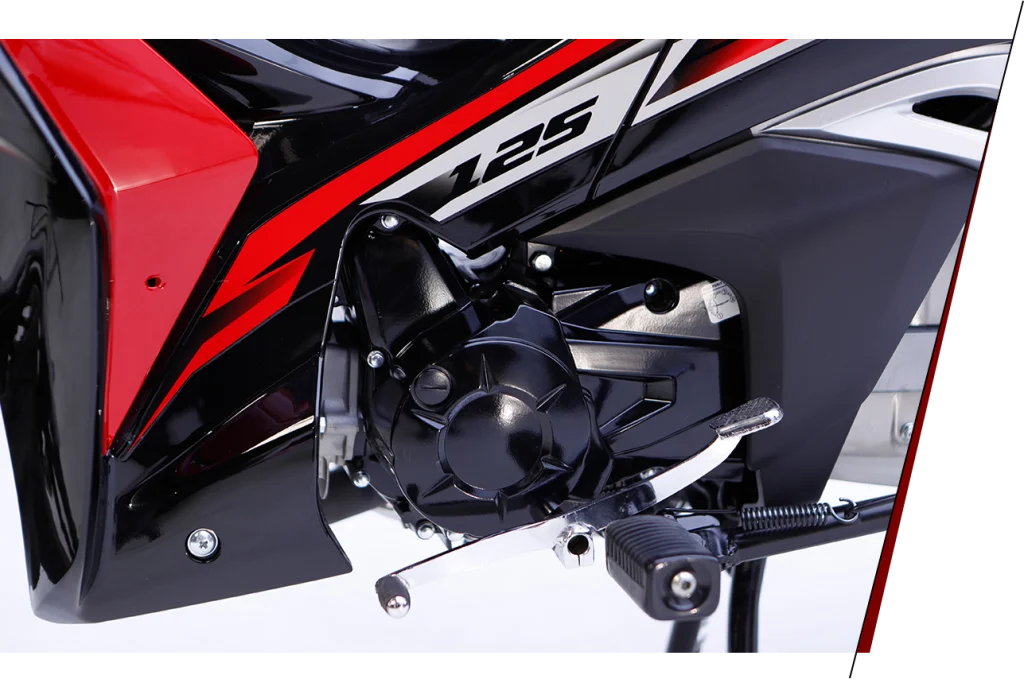

Engine | Z125-A |
Type | 125CC, 4-stroke, single cylinder, automatic clutch, air-cooled |
Borex Stroke | 72*61.4 |
Cylinder Capacity | 124mI |
Compression | 9:02 |
Output, Max(Kw/Rpm) | 14(1+2%)/8000(1±1.5%) |
Torque, Max(N.M/Rpm) | 18(1+2%)/6000(1±1.5%) |
Ignition | CDI |
Starting System | Electric Start |
Gear and Clutch | International 4-speed, automatic clutch |

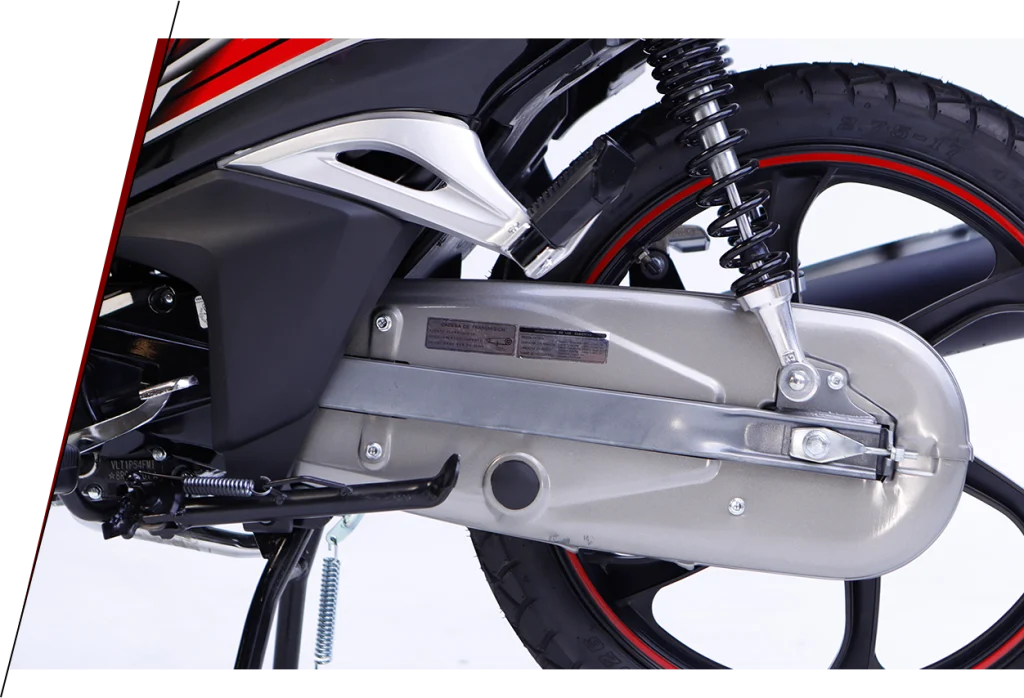

Drive Train | Chain |
Suspension/Front | Hydraulic Spring Shock |
Suspension/Rear | Hydraulic Spring Shock |

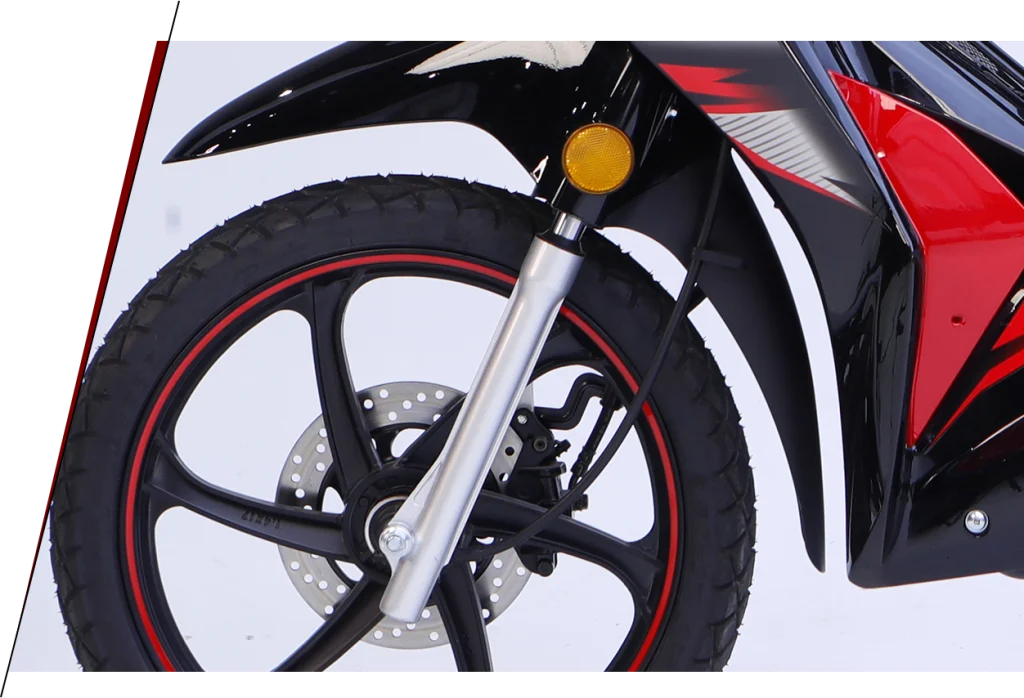

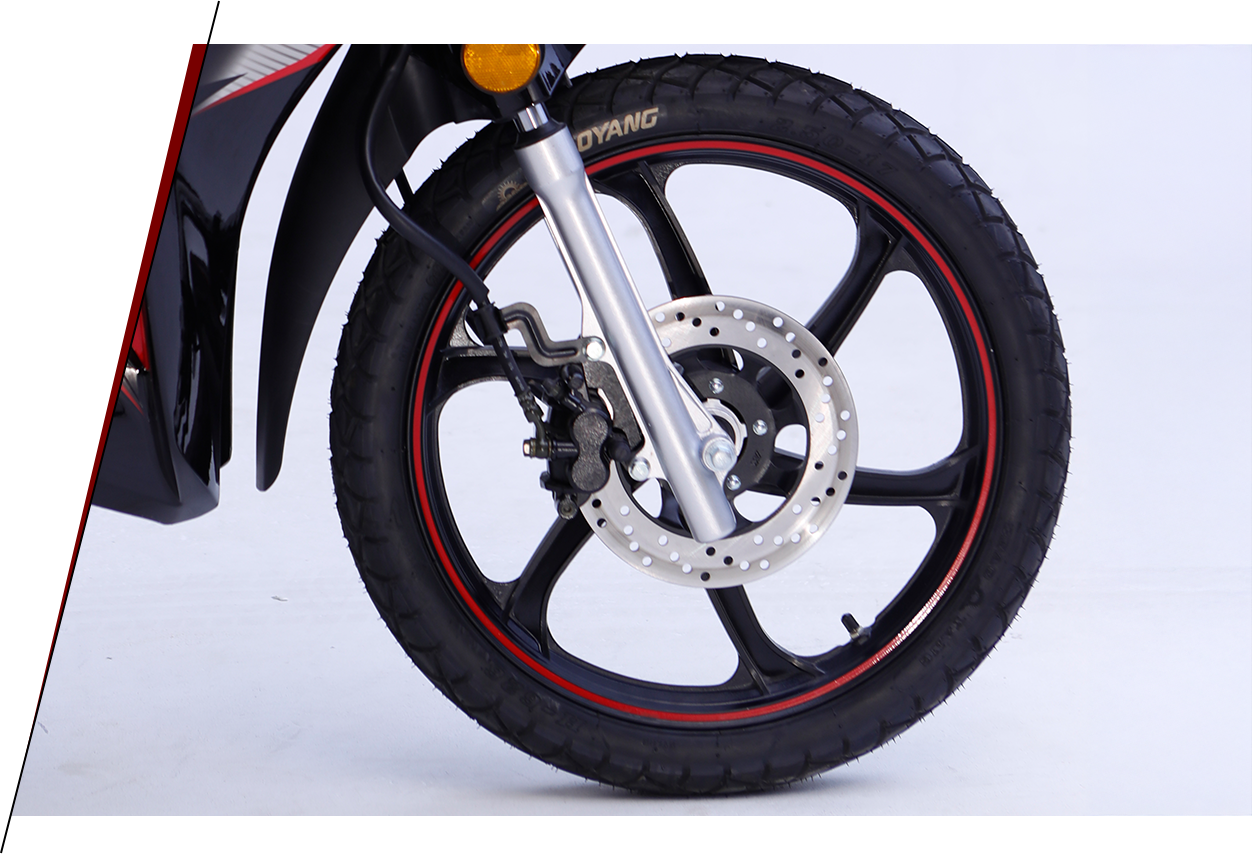

Brakes/Front | Disc Brake |
Brakes/Rear | Disc Brake |
Tires/Front | 80/90-17 |

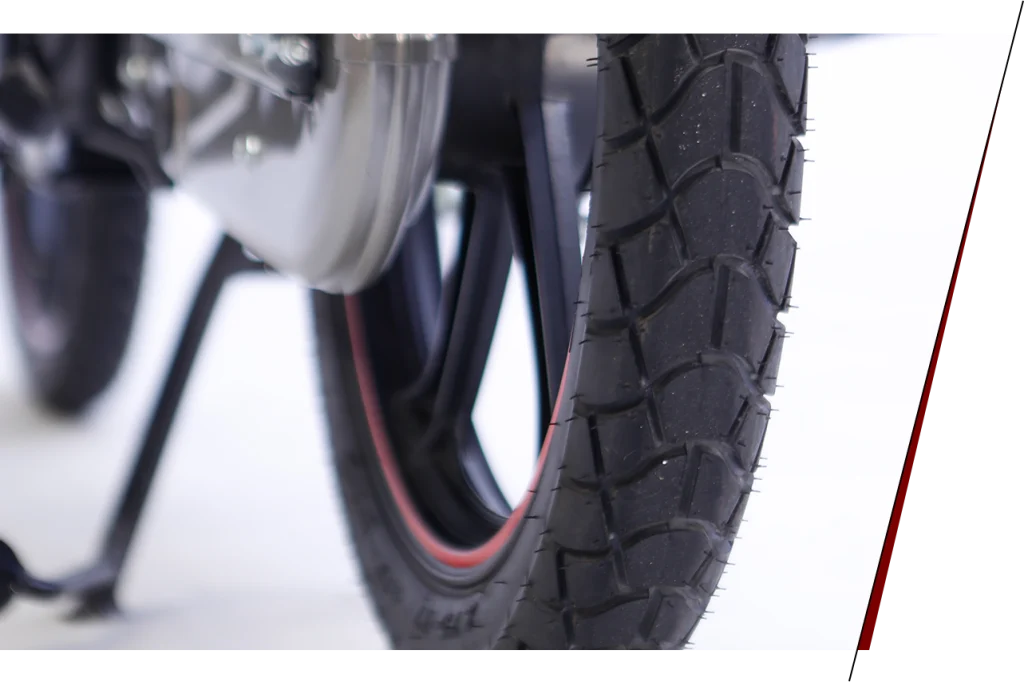

Tires/Rear | 100/90-17 |
LxWxH | 1960*710*1250mm |
Wheelbase | 1250mm |

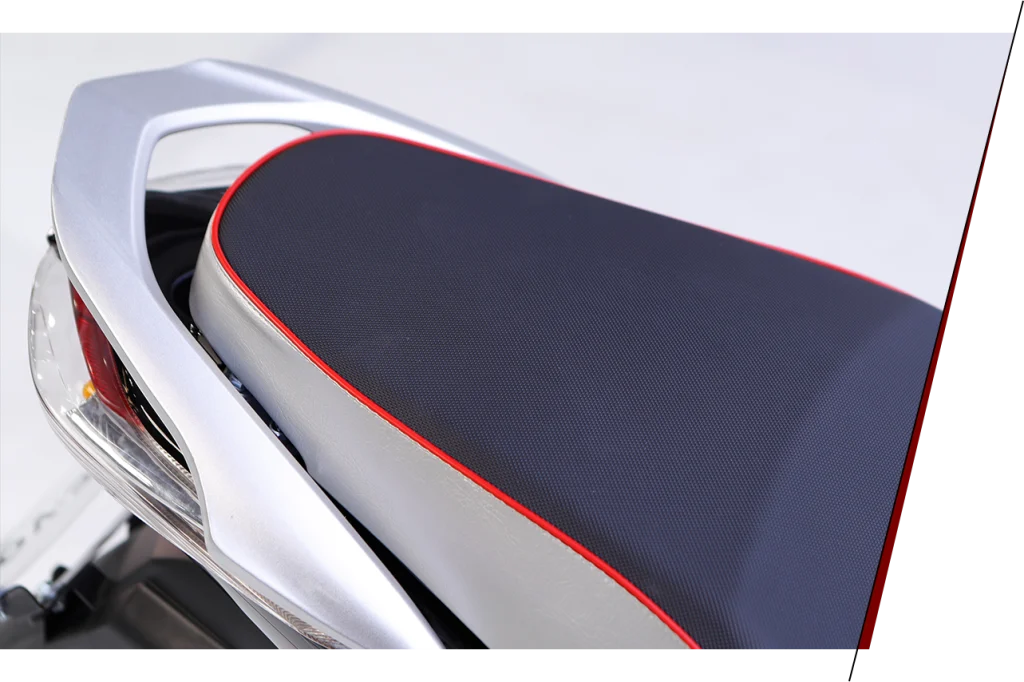

Seat Height | 770mm |
Min ground clearance | 120mm |
Net Weight | 108kg |
Max Load | 150kg |
Max Speed | ≥85km/h |
Climbing Ability | ≥15° |
Fuel Tank Capacity | 4.5L |
Fuel Type | Unleaded gasoline, 92# or above |
Fuel Consumption | ≤2.1 |
Battery | 12V5Ah |
Loading Quantity(40HQ) | SKD( 105 Units/40HQ) |
Color Optional | Red/Blue/Black/Silver/Purple |
